FOGO

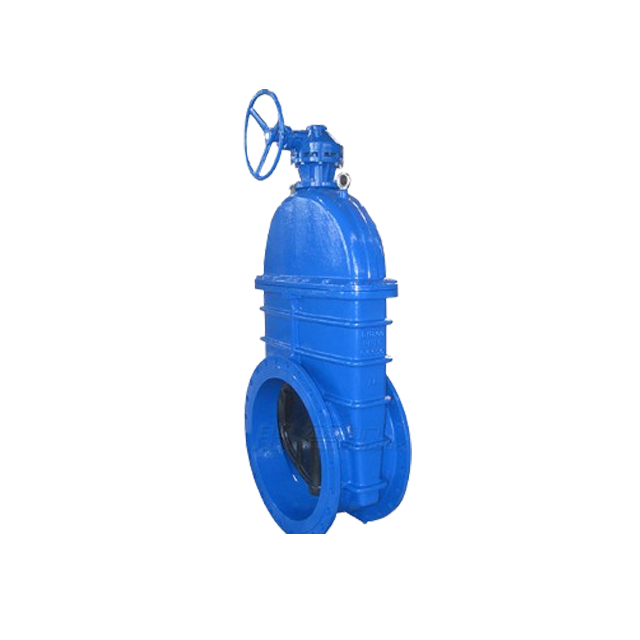

Open Stem Ductile Iron Gate Valve Large Diameter Soft Seal Cast Iron PN16 Sluice Valve
Flange
cast steel, stainless steel, forged steel and other materials
1 year
Purpose and Functions:
The large-diameter soft-sealed gate valve is made of high-quality ductile iron or carbon steel. It has the characteristics of high strength, light weight, and precise geometric dimensions. The gate plates have interchangeable functions. With the addition of a spiral bevel gear labor-saving mechanism, one person can easily It can open and close freely, and can also be equipped with opening and closing indicator columns, electric or pneumatic actuators according to user requirements. Sealed, excellent anti-rust function, safe and reliable, long service life.
Can be installed vertically or horizontally, widely used in water systems, sewage treatment systems, municipal construction and mining, metallurgy, power plants and other industries
Design Standards:
Design and production: GB 13927 AP 1598
Connection flange dimensions: GB/7 17241.6 GB9113
Valve Characteristics：
The flat-bottomed valve seat prevents dirt from accumulating and makes the elastic seat softly seal the gate valve;
The valve disc is entirely covered with nitrile rubber;
The internal parts of the valve are made of stainless steel and copper alloy materials, which can be used in sewage systems to adapt to harsh working environments;
Small size, light weight, easy to install and maintain;
The valve stem is sealed with three O-rings, which greatly reduces the friction resistance during switching.
Specification
| Item | Ductile Iron Rod Soft Seal Resilient Seat Seal Gate Valve |
| Product name | Ductile Iron Rod Soft Seal Resilient Seat Seal Gate Valve |
| Material | cast steel, stainless steel, forged steel and other materials |

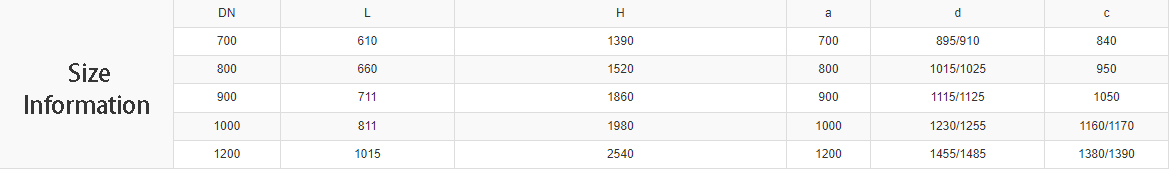

| Size | DN700-DN1200 |
| End Connection | Flanged |
| Pressure range | Class150 |
| Surface | Inner Ra.0.8um or specified |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | For use in harsh oil and gas fields |
Body Type:

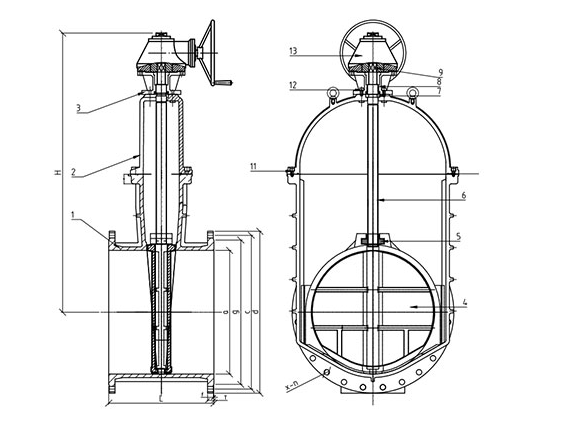

Main Componet information
About Delivery
About Application
