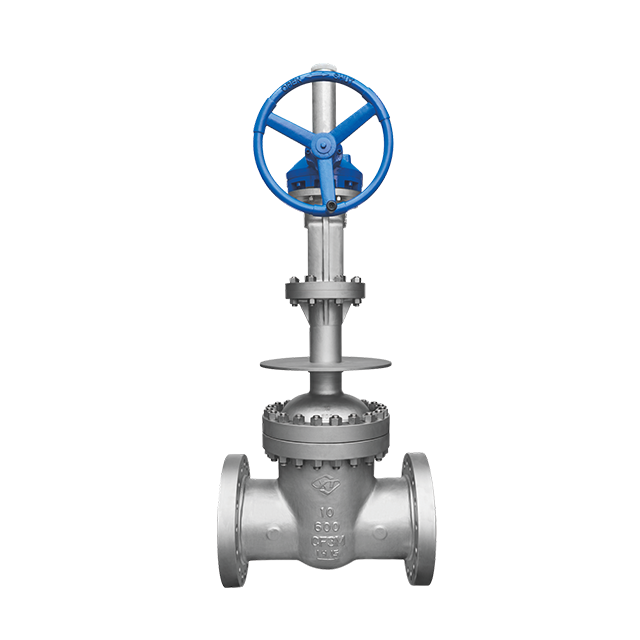

304/316 Stainless steel low temperature flange gate valve extension rod low temperature flange gate valve Carbon steel low temperature flange gate valve

Standards and specifications:

• Product model: Z6/40Y  Z6/41Y   ( J6/41Y J6/41F) H6/41Y H6/41F H6/44Y  H6/44F

• Nominal diameter:  2”～48”(DN50～DN1200)  1/2”～24”(15mm～600mm)

• Working temperature:  -196℃～300℃

• Working pressure: CLASS 150～2500 （PN10～PN420）

• Main material: LCB、LCC、CF8、F304(S30408)、CF8M、F316(S31608)

• Structure length: ASME B16.10、GB/T 12221

• Connecting end: ASME B16.5、ASME B16.47、ASME B16.25、GB/T 9124、GB/T 12224

• Test standard: API 598、ISO 5208、GB/T 26480、GB/T 13927、BS 6364、MESC SPE 77/200、GB/T24925

• Mode of operation: Manual, worm gear, pneumatic, electric, etc

• Applications: Liquefied petroleum gas (LNG), ethylene, liquid nitrogen, liquid oxygen, liquid hydrogen, etc

Description：

• Valve stem selection of special material, good strength, and can withstand the impact of high and low temperature cross changes;

• Combined low leakage packing, auxiliary lip sealing structure, safe and reliable;

• Surfacing cemented carbide on sealing surface to improve the erosion resistance of valve and extend the service life of valve;

• Valve stem up and down orientation, small switching torque, reliable sealing;

• Full diameter design, small flow resistance, strong flow capacity, good flow characteristics;

• Open rod transmission structure, valve switch position at a glance;

• The valve stem thread is not in contact with the medium, which reduces the corrosion of the medium to the valve stem thread;

• SS+ graphite or metal seal between valve body and valve cover, reliable seal;

• Extended valve cover with isolation plate design, effectively ensure that the bottom temperature of the packing is above 5℃;

• The operating mechanism is equipped with locking device to prevent misoperation of the valve;
