FOGO

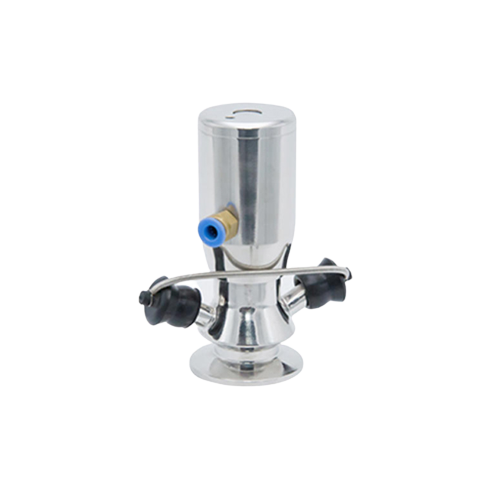

Sanitary Pneumatic Aseptic Sampling Valve
tri-clamped
ss304, ss316
1 year
Operating Principles
It's mainly applied to extract sample from tank or pipeline.it also can be assembled at the bottom of the tank or pipeline to frain away the remains.
Aseptic Sampling Valve are measured and designed for sampling medium viscosity products with about 0-1,000cP in viscosity and with particles up to 3mm in diameter.Such as Unprocessed Milk,Medical solutions,Filtered and unfiltered beer,Perfume,Creams and lotions,and much more.
Pneumatic Aseptic Sampling Valve
Stainless Steel Aseptic Sterilize Clamped Sampling ValvesWe manufacture Sanitary Tri Clover Aseptic Sample Valve,Hygienic Welded Sampling Valve,Sanitary Pneumatic Aseptic Sampling Valve,Manual Aseptic Sample Valve.
A Sampling Valve is a type of valve used in process industries that allows taking a representative portion of a fluid gases,liquids,fluidized,solids,or slurries to test (e.g.by physical measurements,chemical analysis, microbiological examination),typically for the purposes of identification,quality control,or regulatory assessment.It is a valve used for sampling
The Sampling Valve allows the operator to extract a sample of the product from the production line or reactor and safely store it for transportation to the laboratory where it will be analysed or to the archive room where it can be retrieved for further use.
In chemical plants,a sample can be taken during the process to ensure that the output meets specifications (or that the quality is acceptable),before shipping the chemical good or before accepting the chemical product.
Standard Design
Available in size:BSP or NPT male thread 1/4",3/8",1/2"3/4";clamp diameter 25.4mm or 50.5mm
Standards:DIN,SMS,ISO IDF,BS RJT,ASME BPE.
End connections:thread,clamp,or others upon request
Corresponding size can be provided upon request
Specification
| Item | Sanitary Pneumatic Aseptic Sampling Valve |
| Product name | Sanitary Pneumatic Aseptic Sampling Valve |
| Material | SS304, SS316L |
| Size | 1/4"-1 1/2", |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0.2Mpa |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
