FOGO
SMS Sanitary Stainless Steel Complete Union
Welded
ss304, ss316L
1 year
Operating Principles
Sanitary Dansk Union Fittings are fabricated complying with Dansk standard.
Consisting of a round Slotted Nut,a Weld liner and Weld Male,and a o-ring seal
Sansun sanitary offers DIN sanitary union fittings assembling with different types,and customized fabrication is available.

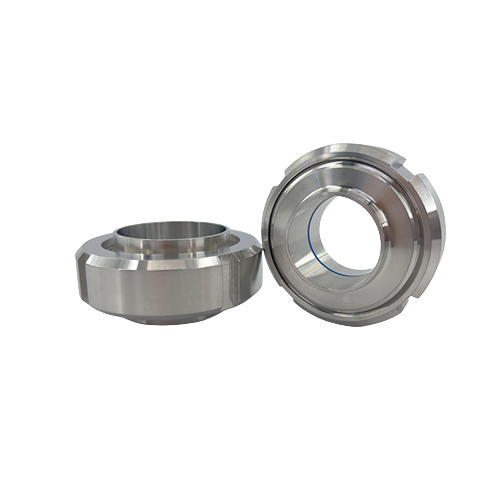

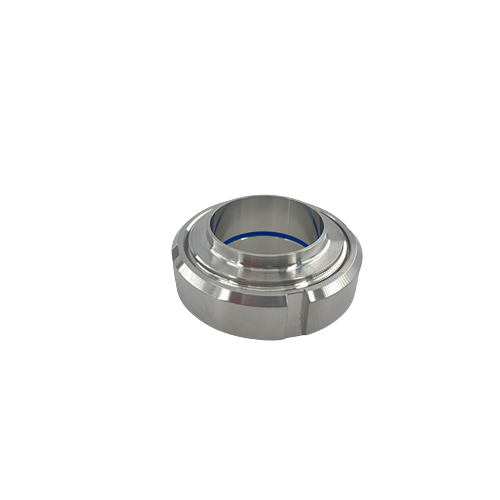

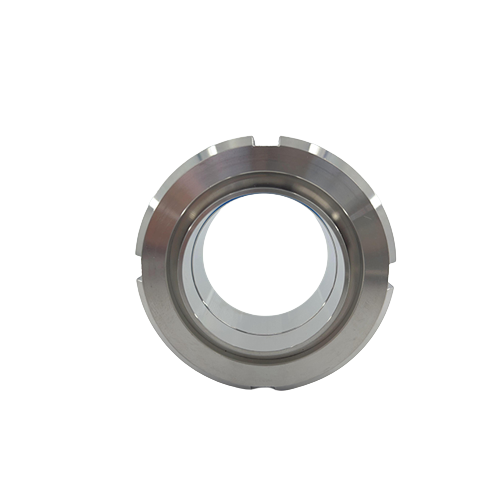

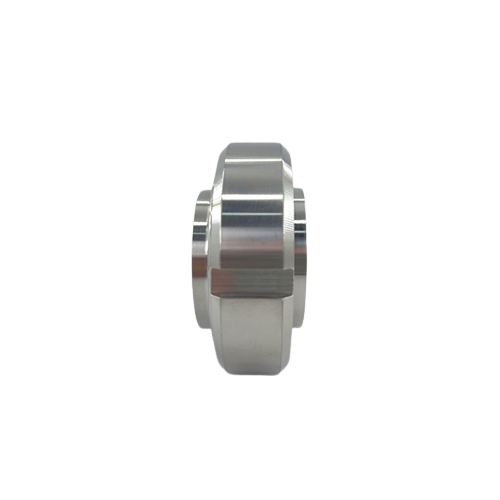

SMS Sanitary Stainless Steel Complete Union

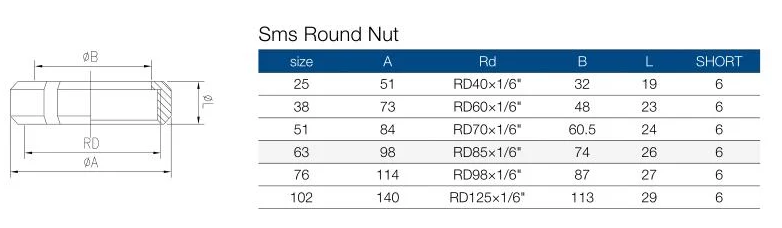

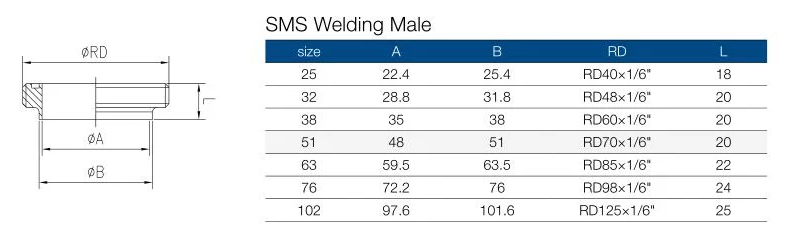

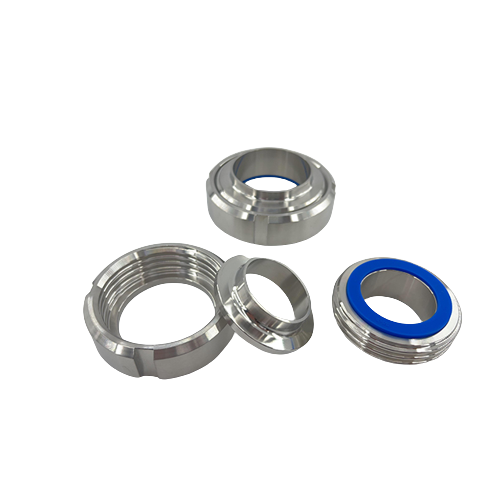

The Sanitary SMS complete Union including four parts,SMS Welding Male,SMS Welding Liner,SMS Union Gasket,SMS Nut.
It is widely applied to many fields,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
Advantage of Union:
It is suitable for flexible and easy maintenance.
It is especially suited for processes where the load on seals is extra high,where easy control and replacement of seals is necessary and where optimal cleaning is required.
Standard Design
Available sizes:1"-4"
Standards:Dansk
End connections:Weld
Specification
| Item | SMS Sanitary Stainless Steel Complete Union |
| Product name | SMS Sanitary Stainless Steel Complete Union |
| Material | SS304, SS316L |
| Size | 1"-4" |
| End Connection | Tri-clamp,Welding, Thread |
| Surface treatment | Ra<0.8um |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Gasket | Food Grade Silicone,Viton,PTFE |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
