Sanitary Non-retention Manual Ball Valve with Feedback Signal Factory Produced

Operating Principles

• The ball valves can be operated automatically through actuator or manually with the handle.

• The handle blocks the valve in the "open"or "closed"position,certainly there are the other position available.

• The actuator push piston of axial movement into 90 degree so that it controls ball valve.

• The ball valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields.

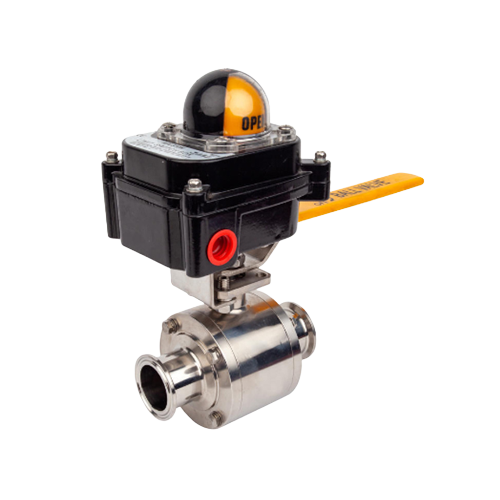

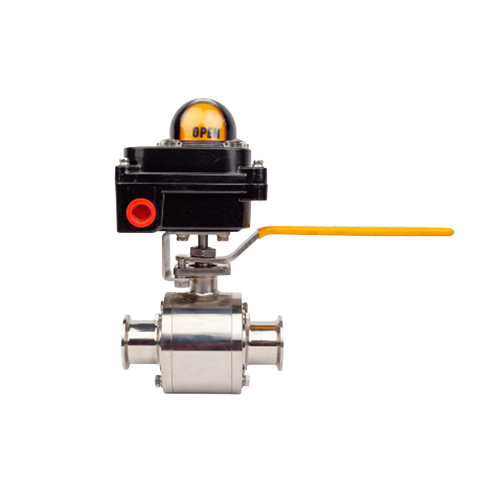

Sanitary Non-retention Manual Ball Valves with Proximity Switch

• We manufacture Pneumatic Sanitary T Port Ball Valve,Hygienic Pneumatic L Port Ball Valve,Pneumatic Sanitary

• Encapsulated Three Ways Ball Valve,Sanitary Butt-weld 3 Way Ball Valve,Hygienic Male Thread Three Ways Pneumatic Bal Valve,Hygienic Tri-Clamp 3 Ways Ball Valve.

Standard Design

• Available Sizes:1/2-5",DN15-DN125

• Material:Valve body and disc material can be SS304 or SS316L,SS304L material are availble upon request.

• Type of Valves:Straight two ways ball valves with full port PTFE seat.

• End Connections:Clamp to clamp,weld to weld,male to male,male to clamp,male to weld,clamp to weld.

• Standard:SMS,DIN,3A,ISO,RJT.

• Seal Type:PTFE(TEFLON)

• Actuator:Pneumatic actuator stainless steel sanitary ball valves,pneumatic aluminum actuator sanitary ball valves, electric actuator sanitary ball valves or manual operated.

• Provided EN 10204 3.1B certificate.

• Working temperature:-20C 180C

• Sterilization temperaure:150C Max.20min)

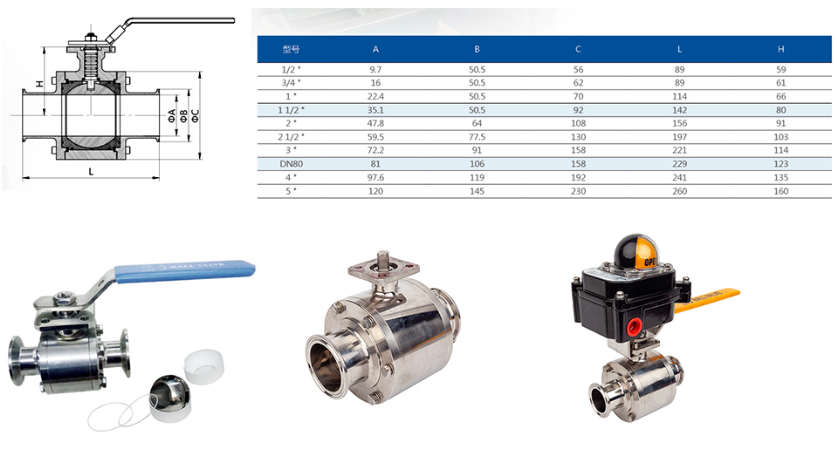

Specification

About Delivery

About Application
