FOGO
Sanitary Straight-through Flange Ball Valve
Flange
ss304, ss316L
1 year
Operating Principles
Flanged ball valve (Q41F)is a valve whose opening and closing member (ball)is driven by the valve stem and rotates around the axis of the ball.It can also be used for fluid regulation and control.The ball valve is mainly used for cutting off in the pipeline, as long as it rotates smoothly The valve can be tightly closed by the operation and small turning torque.
The valve is divided into manual ball valve,pneumatic ball valve,electric ball valve and electric proportional control valve according to the driving mode. It is widely used in:food,beverage,chemical industry and other fields.

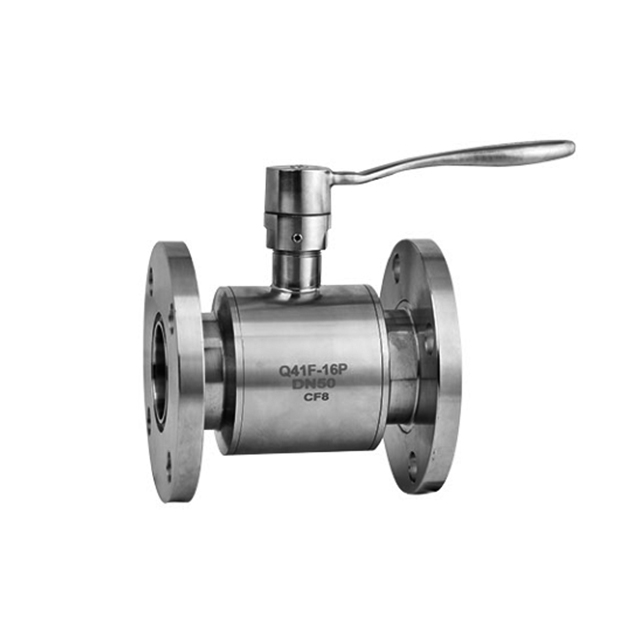

Sanitary Flange Ball Valve
Flange connection improves the appearance of previous industrial valves, adopts mechanical grinding,surface treatment,and achieves internal and external clean surface,complements the advantages of food grade and industrial grade,and truly solves the collection of equipment experience in various industries.
Standard Design
DIN,3A,SMS,ISO/IDF,RS/RJT,ASME/BPE,ETC
I he parts of valve usually include:Valve body which divided into two parts,the ball with through cavity,valve stem and control
sets(handle/actuator)etc.
Connection:Weld,clap,weld/clamp,etc.

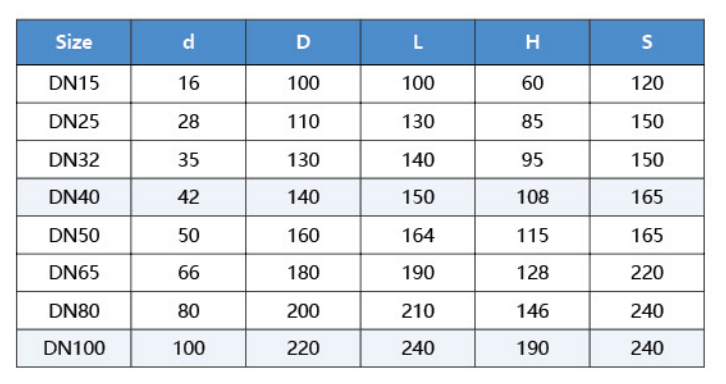

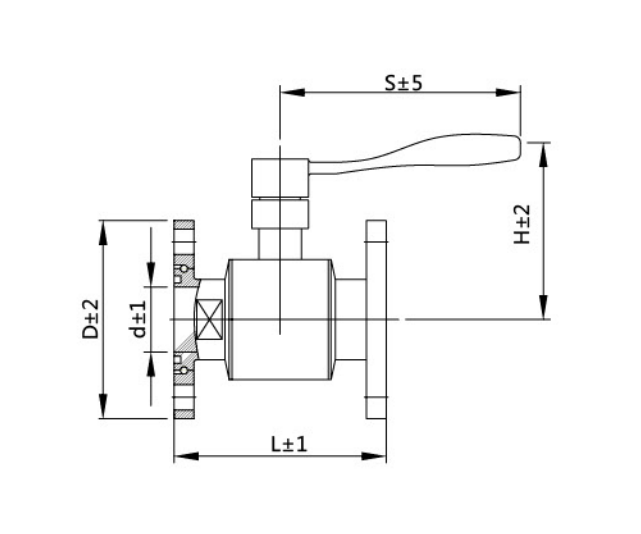

Specification
| Item | Sanitary Flange Ball Valve |
| Product name | Sanitary Flange Ball Valve |
| Material | SS304, SS316L |
| Size | DN15-DN100 |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0~10Bar |
| Gaskets | PTFE FDA 177.1550 Whatever The Connection,It Does Not Change The Total Length Of The Valve |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
