FOGO
Clamp Connection Straight-through Ball Valve
Thread Connection
ss304, ss316L
1 year
Operating Principles
Sanitary Stainless Steel Tri Clover Ball Valve
The ball valves can be operated automatically through actuator or manually with the handle.
The ball valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields
With clamped connection,this 3 way ball valve is convenient to detach and install.

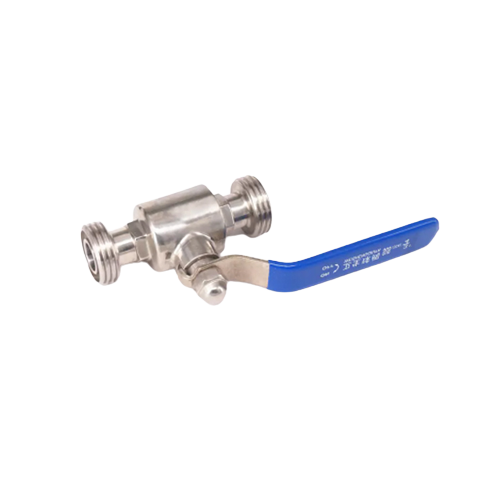

Straight Male Thread Ball Valves
Sanitary Manual Ball Valve including Sanitary Welded Manual Ball Valve,Hygienic Male Thread Manual Ball Valve, Hygienic Tri-Clamp Manual Ball Valve.
Both Manual And Automatic Operated Hygienic 2-Way Ball Valve Are Mainly Used In Processing Beverage,Wine,Oil Refining,Cosmetics And Chemical Industries.
Standard Design
Available in sizes from DN10/1/2 to DN100/4"
Standard Avaliable:DIN.SMS,RJT,3A.FIL
Connection:weld,clamp,thread,flange
Type of valves:One way ball valve,three-piece ball valve,Three-way ball valve
Type of cores:T type,L type,direct type
Actuator:pneumatic stainless steel actuator,electric actuator
Specification
| Item | Straight-through Ball Valve |
| Product name | Straight-through Ball Valve |
| Material | SS304, SS316L |
| Size | 1/2"-4",DN10-DN100，Φ19-Φ101.6 |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0~10Bar |
| Gaskets | PTFE FDA 177.1550 Whatever The Connection,It Does Not Change The Total Length Of The Valve |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |

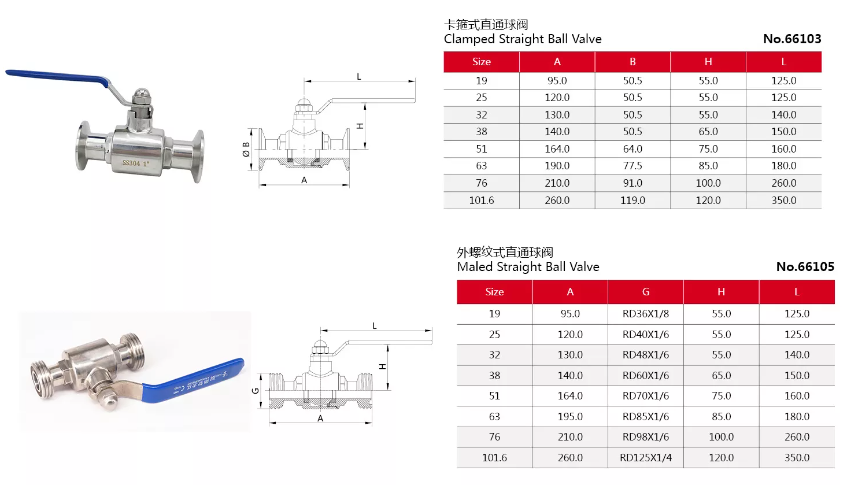

Drawing of stainless steel sanitary hygienic straight threading ball valves
About Delivery
About Application
Operating Principles
Sanitary Stainless Steel Tri Clover Ball Valve
The ball valves can be operated automatically through actuator or manually with the handle.
The ball valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields
With clamped connection,this 3 way ball valve is convenient to detach and install.
Straight Male Thread Ball Valves
Sanitary Manual Ball Valve including Sanitary Welded Manual Ball Valve,Hygienic Male Thread Manual Ball Valve, Hygienic Tri-Clamp Manual Ball Valve.
Both Manual And Automatic Operated Hygienic 2-Way Ball Valve Are Mainly Used In Processing Beverage,Wine,Oil Refining,Cosmetics And Chemical Industries.
Standard Design
Available in sizes from DN10/1/2 to DN100/4"
Standard Avaliable:DIN.SMS,RJT,3A.FIL
Connection:weld,clamp,thread,flange
Type of valves:One way ball valve,three-piece ball valve,Three-way ball valve
Type of cores:T type,L type,direct type
Actuator:pneumatic stainless steel actuator,electric actuator
Specification
| Item | Straight-through Ball Valve |
| Product name | Straight-through Ball Valve |
| Material | SS304, SS316L |
| Size | 1/2"-4",DN10-DN100，Φ19-Φ101.6 |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0~10Bar |
| Gaskets | PTFE FDA 177.1550 Whatever The Connection,It Does Not Change The Total Length Of The Valve |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
Drawing of stainless steel sanitary hygienic straight threading ball valves
