Stainless Steel Sanitary Intelligent Pneumatic Mix-Proof Valves Supplier

Operating Principles

• The series of Sanitary Pneumatic Flow Division Valves makes major medium reaching the purpose of revising or end stop,because the good sealability and cleanability,they are extensively use different sanitary industry areas.

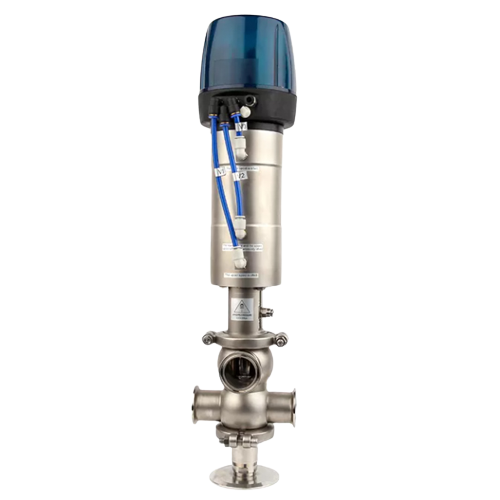

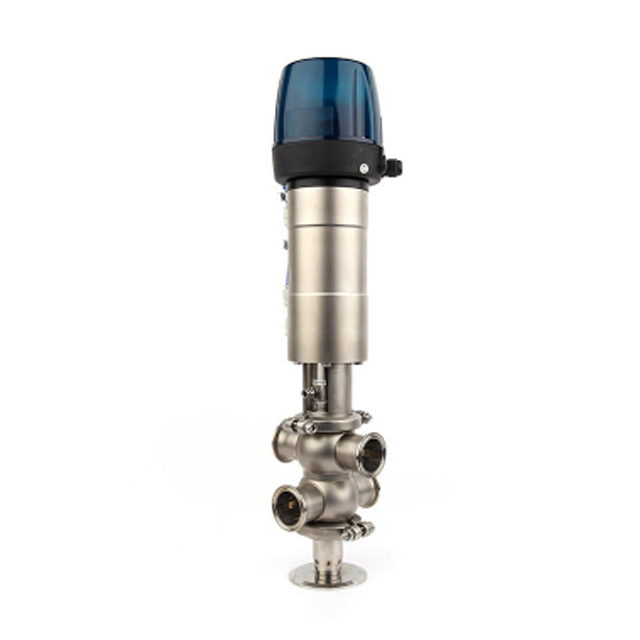

Stainless Steel Sanitary Intelligent Pneumatic Mix-Proof Valves

• We can supply Sanitary T Type Divert Valve,Hygienic L Type Pneumatic Divert Valve,Sanitary LL Type Reversing Valve, Sanitary Manual Divert Valve.

• The series of valve are major let the medium reach the purpose of reversing or end stop,because the good sealablity and cleanability,they are extensively use to different sanitary industry areas.

• The series of pneumatic cut-off reversing valve change the energy which process by compressed air to the

• mechanical energy,the mechanical energy can drive the valve rod axial moving,thus move the different location of

• seal elements,which can control the switch for inlet of pipeline,finally realise the purpose of medium reversing or stop.

• The manual cut-off reversing valve series control by handle,also reach the purpose of medium reversing or stop at the end.

Standard Design

• Various standards of valves can be provided:DIN.3A.SMS.ASME.BPE.

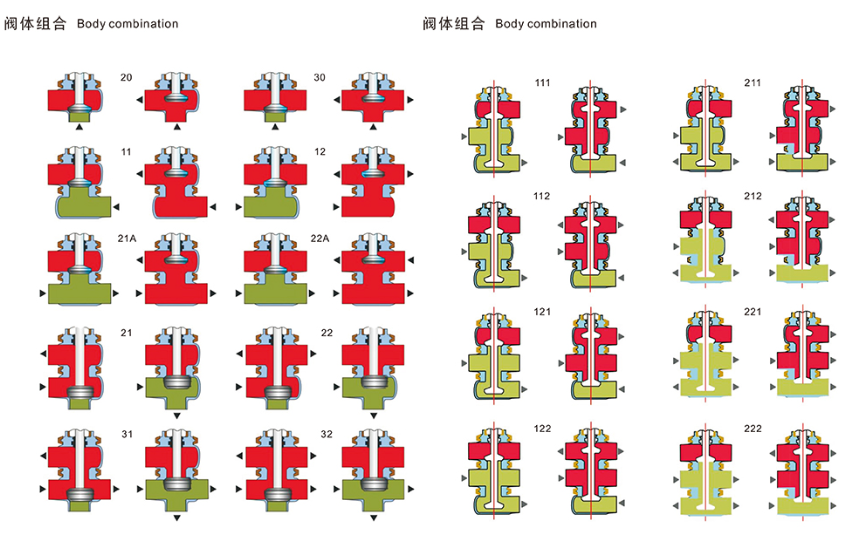

• The series of stainless steel hygienic flow division valves have two types valves,including of cut-off type and reversing types.The cut-off type can be made of two or three pipeline connector.The reversing type can be made of three to five pipeline connector.Their varety fully satisfied the demands of market.

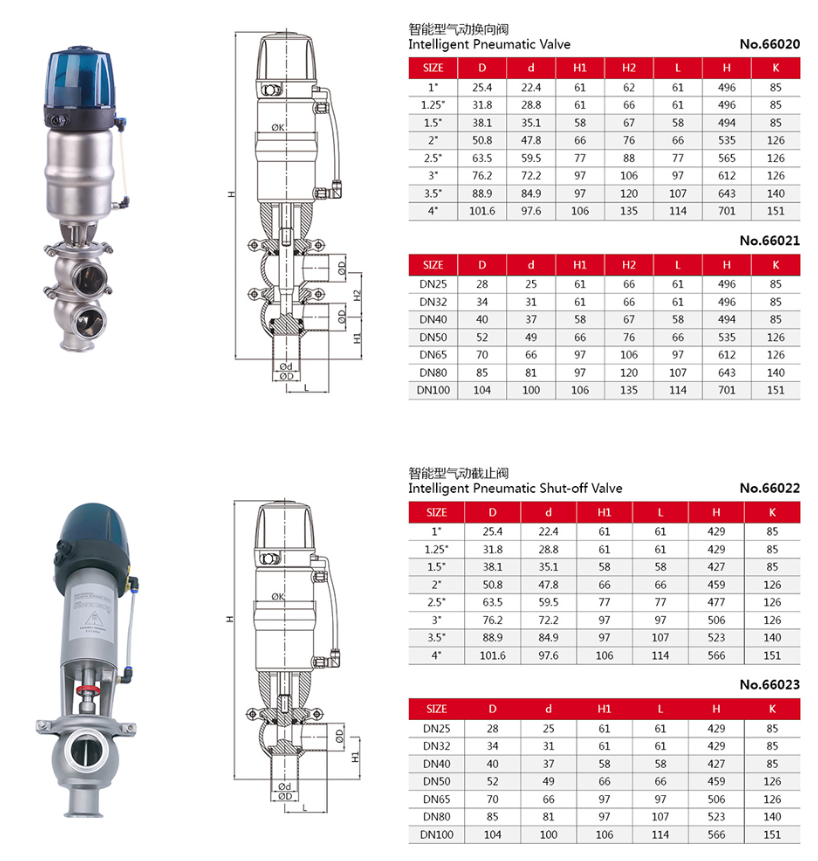

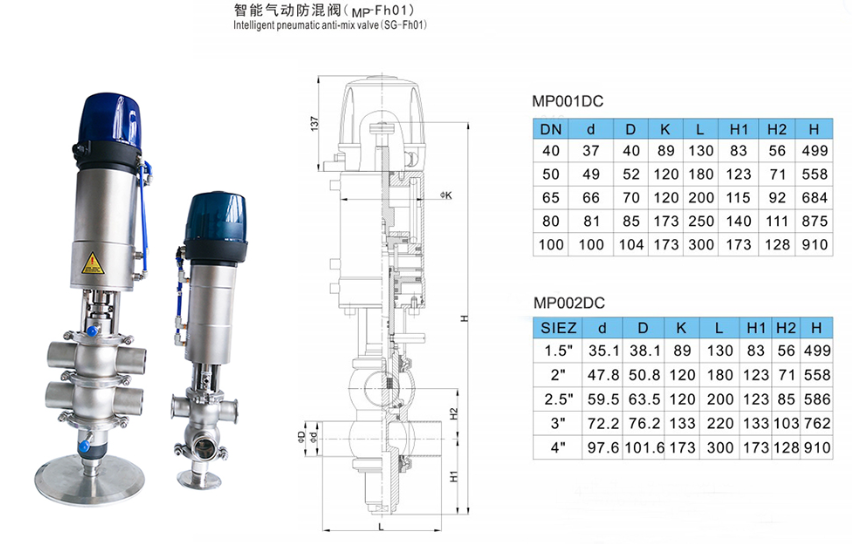

Specification

About Delivery

About Application
