Wholesale Sanitary Clamped Connection Butterfly Valves Supplier

Operating Principles

• Sanitary stainless steel Tri-clamp Straight Ball Valve

• The ball valves can be operated automatically through actuator or manually with the handle.

• The handle blocks the valve in the "open"or "closed"position,certainly there are the other position available.

• The actuator push piston of axial movement into 90 degree so that it controls ball valve.

• The ball valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields.

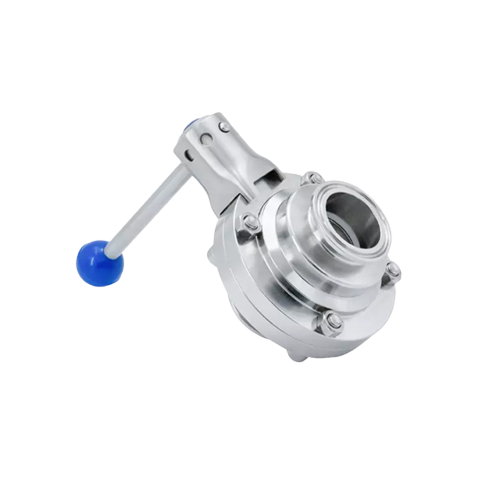

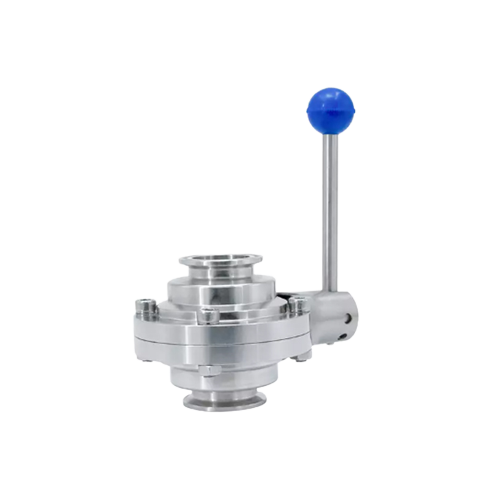

Clamped Butterfly Type Ball Valves

• We manufacture Sanitary Butt-weld Ball Valve,Hygienic Male Thread Ball Valve,Sanitary Female Thread Ball Valve, Hygienic Clamped Ball Valve,Hygienic Pneumatic Ball Valve,Sanitary Electric Actuator Ball Valve.

• Both Manual And Automatic Operated Hygienic 2-Way Ball Valve Are Mainly Used In Processing Beverage,Wine,Oil Refining,Cosmetics And Chemical Industries.

Standard Design

• Free of maintenances

• Compact and portable

• Small operating torque

• Available in sizes from DN10/1/2"to DN100/4"

• Standard Avaliable:DIN,SMS,RJT,3A,FIL

• Connection:weld,clamp,thread,flange

• Type of valves:One way ball valve,three-piece ball valve,Three-way ball valve

• Type of cores:T type,L type,direct type

• Actuator:pneumatic stainless steel actuator,electric actuator

Specification

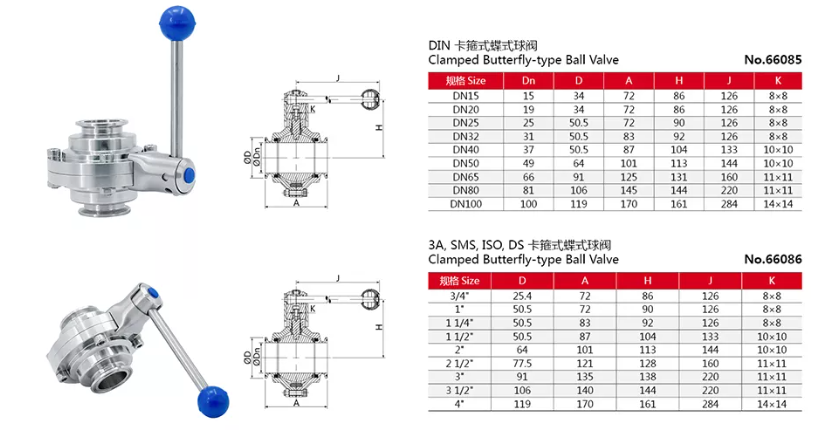

For example drawing of stainless steel food grade sanitary butterfly type ball valves
