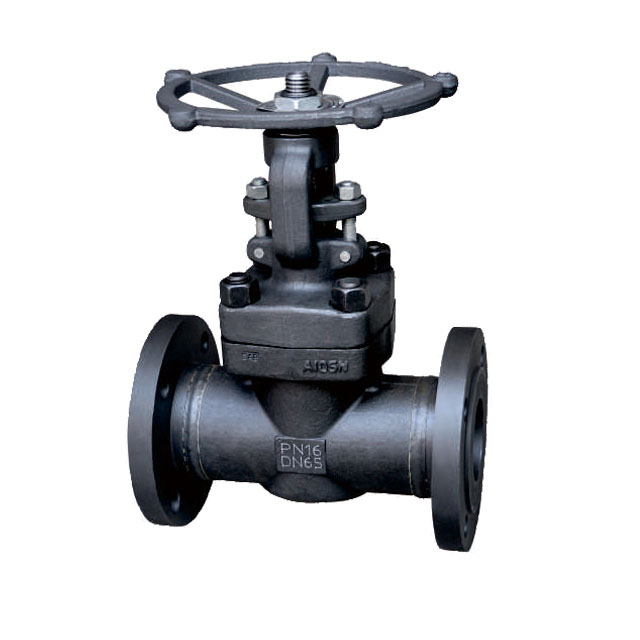

A105 Forged steel stop valve High pressure high temperature steam heat conduction oil valve flange stop valve

Standards and specifications:

• Design and manufacture in accordance with API602,ASME B16.34.

• Valve structure length in accordance with ASME B16.10 regulations.

• Flange end dimensions according to ASME B16.5(RF,? FM,? RJ)

• Inspection and test in accordance with API598.

• Structural characteristics: B·B(middle bolt) W·B(middle weld) Flow rate: full diameter (FP) reduced diameter RP.

• Main material: A105N, LF2, LF3, F11, F5, F22, F304, F304L, F316, F316L, F321, F304H, F316H, F321H, F51, F53, F55, F91, F92, F347,  310S, 800H, 600, 625 special materials, etc.

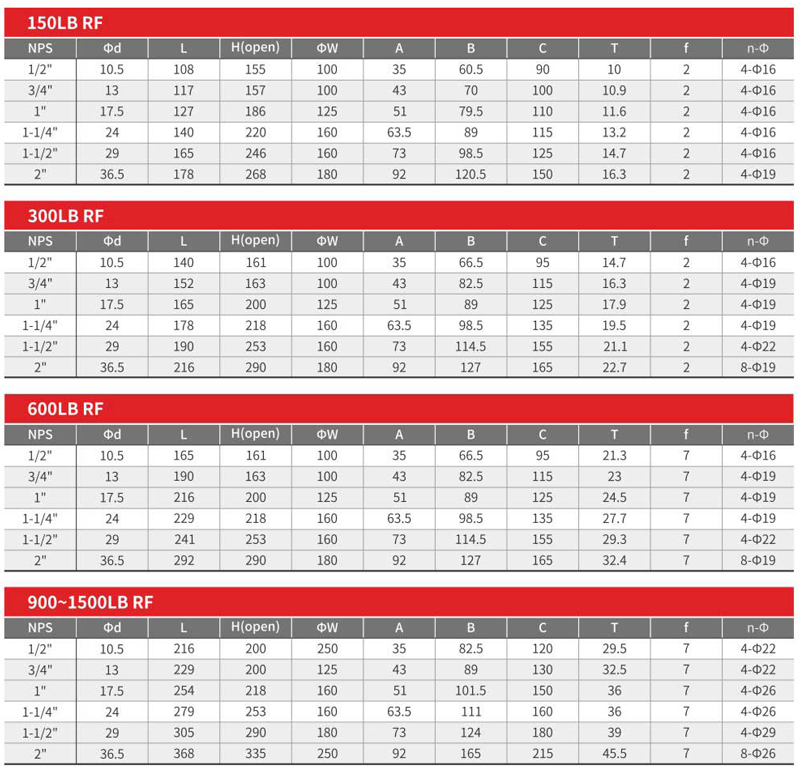

Performance parameter：
