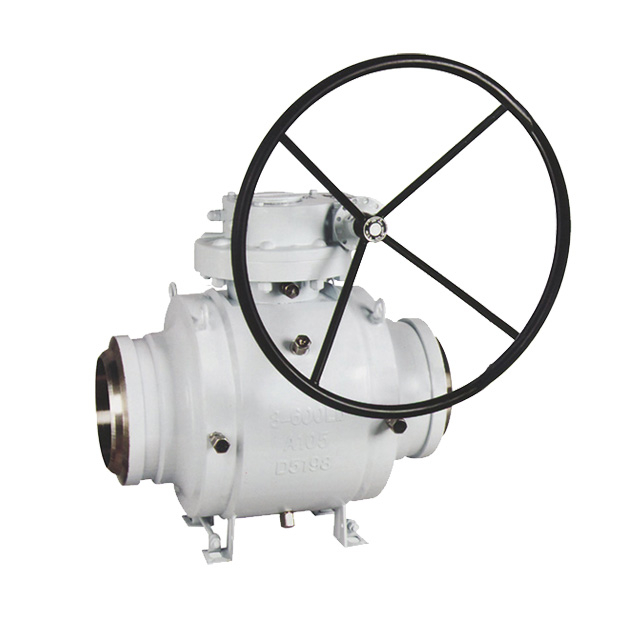

American standard cylindrical body fully welded fixed ball valve

Structural features：

• The cylindrical valve body structure has a simple manufacturing process, which is convenient for assembly and positioning. The mold required for blank manufacturing is simple, and it is convenient to use a support plate to fix the ball. This structure has good processability and is convenient for the installation of the valve stem part. It is especially suitable for large-diameter fully welded ball valves. (Two-body is suitable for small-diameter fully welded ball valves, and three-body is suitable for large-diameter fully welded ball valves)

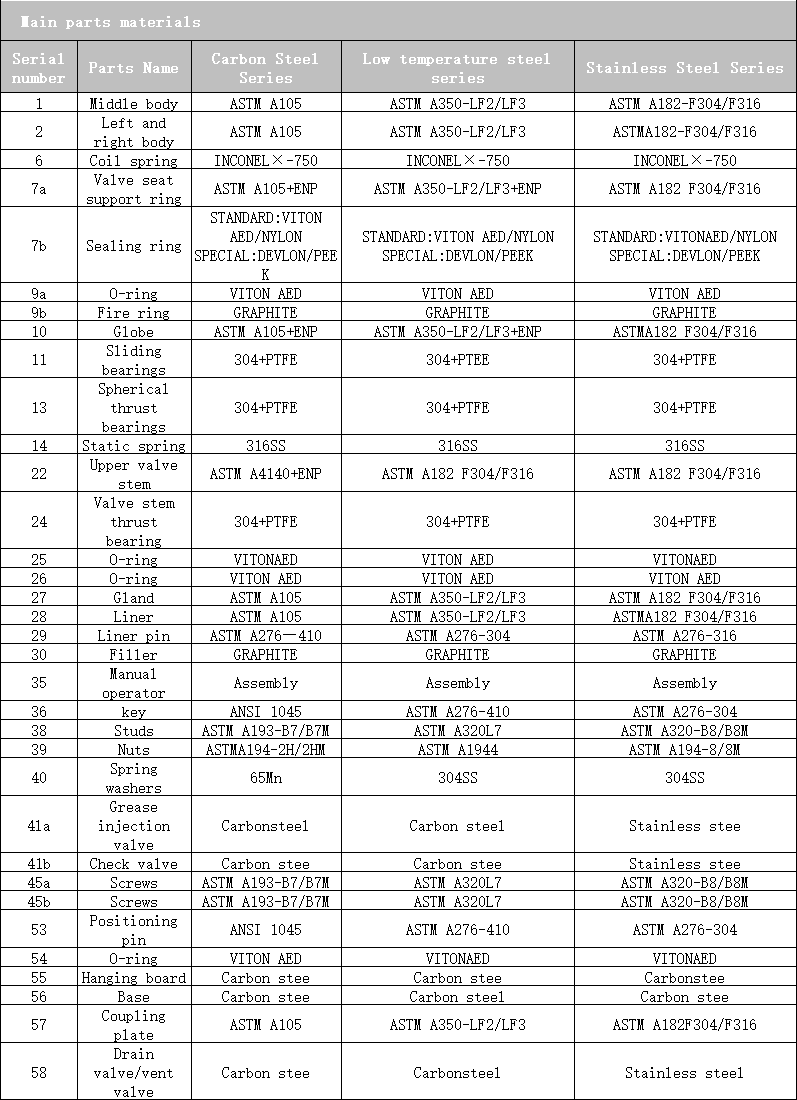

Main parts and materials :

Performance parameters :

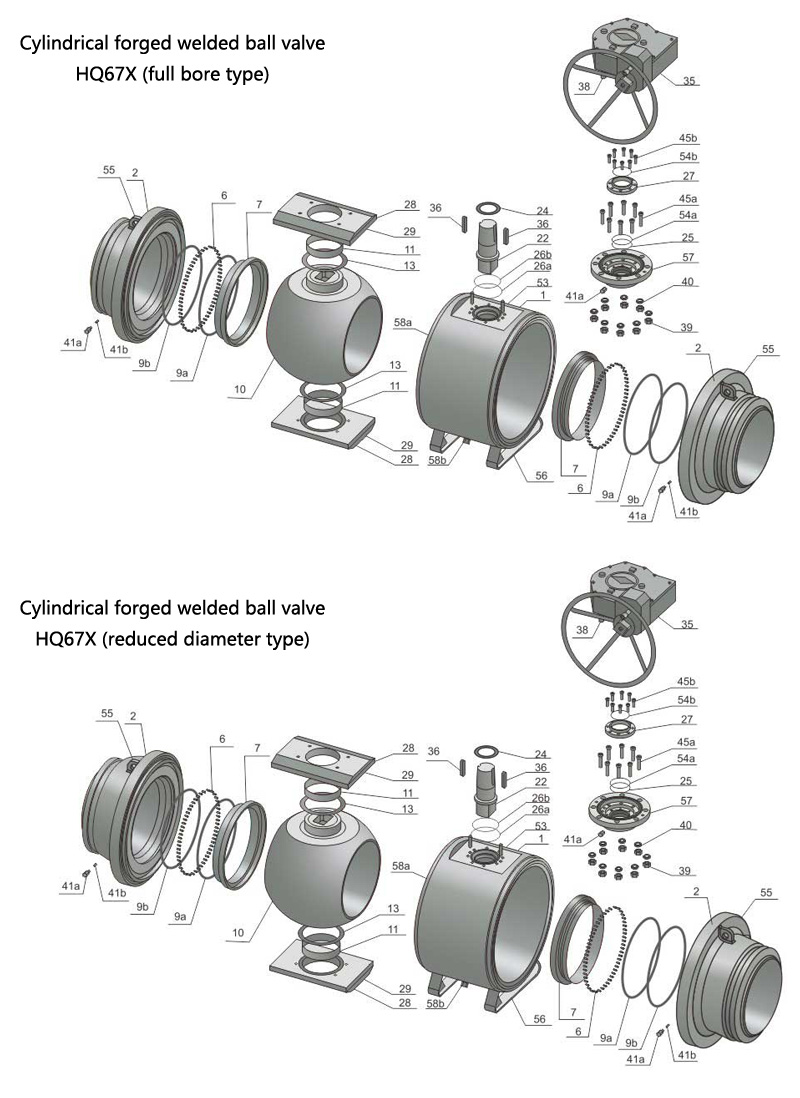

Parts Materials：

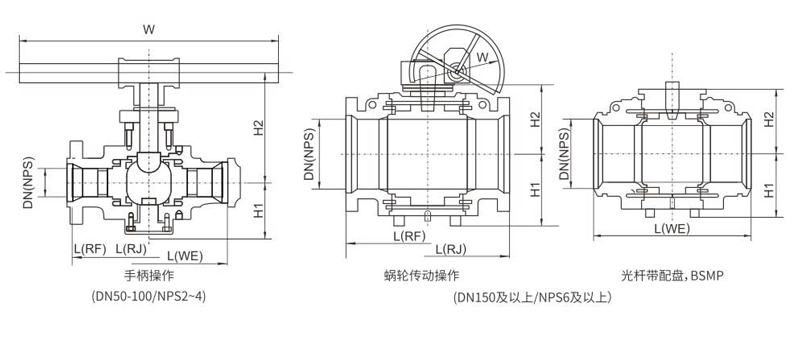

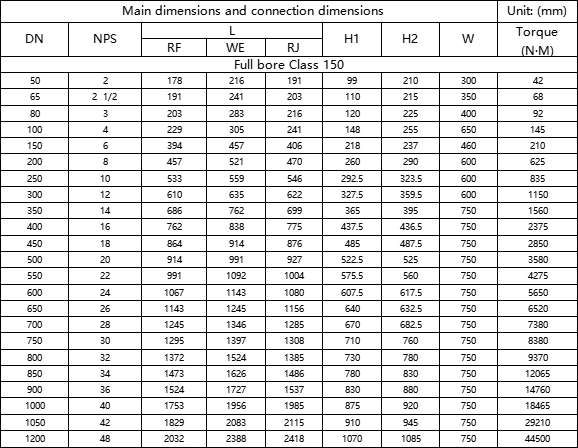

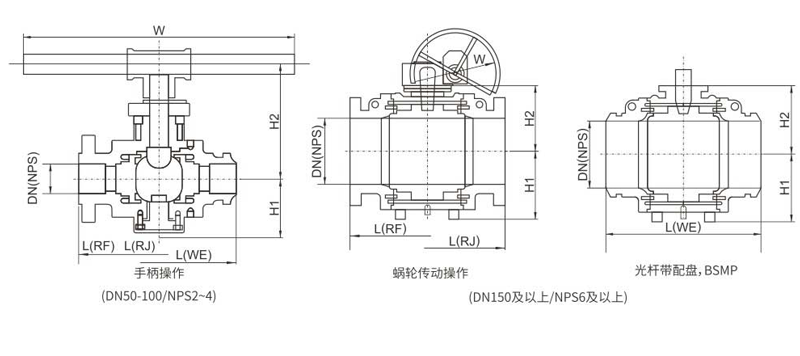

Drawings and Dimensions：

About Delivery

About Application
