Exhaust Valve With Pressure Guage Supplier

Operating Principles

• The clamp exhaust valve with pressure gauge are adjustable,exactlyadjust to opening pressure,

• the valve is open and closed sensitively with small differ pressure

• Available in opendesign(free blowing-off of air)and closed design(collect theexcess air).

• This valve with stainless steel materals,hygienicdesign,applied to all kinds of,food processing,drink,andpharmaceutical and other industrial fields.

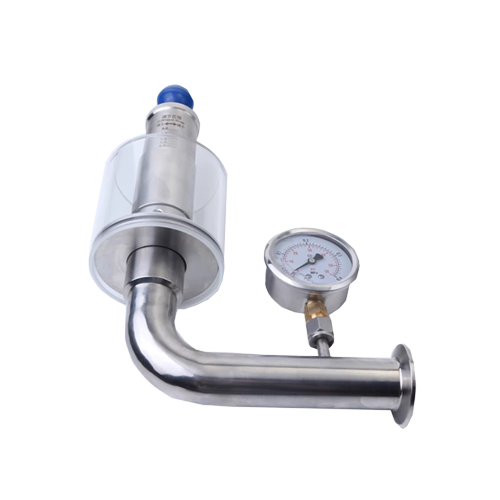

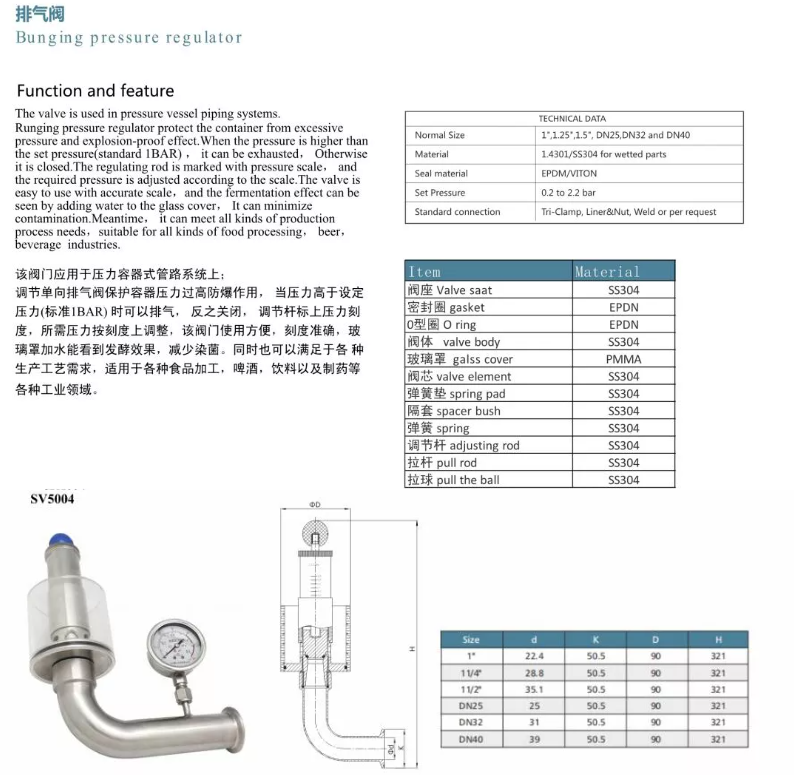

Sanitary Stainless Steel Exhaust Valve with Pressure Guage

• Our Sanitary Air Exhaust Valve including Sanitary Clamped Air Relife Valve,Hygienic Thread Pressure Relief Safety Valve,Stainless Steel Safety Exhaust Valve With Pressure Guage.

• The series safety valve is to adjust the spring compression nut to calibrate a particular pressure.the calibration of pressure is to fix the maximum pressure to avoid the equipment damage.In the normal working operating pressure,the valve is closed.When the system pressure exceeds the fsysterm and the equipment.The valve is with start the open device for the CIP cleaning of the safety valve and the piping.

• The safety valve is a special valve through a rigorous calibration,but to make the valve more realistic operating conditions,so the conditions shoud be as mush as possible the scene of the valve and then parity.

Standard Design

• Available in size:1"-1.5"or DN25-DN40

• Installation:supposed to be installed overhead tanks

• Standard:DIN,SMS,ISO IDF,BS/RJT,ASME /BPE

• Connection:butt-welded,clamp,or other's upon request
