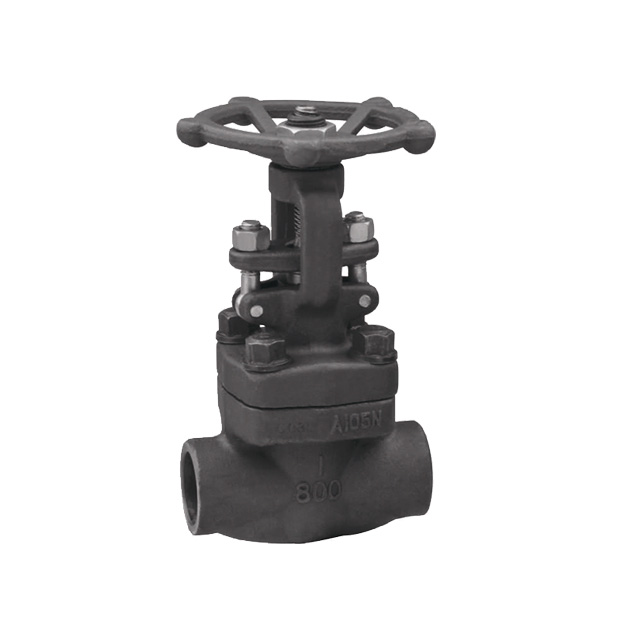

Forged steel welded globe valve

Standards and specifications

• Design and Manufacture: API602; ASME B16.34; JB/T7746, GB/T12224 regulations.

• Structure length according to: JB/T7746 factory standard or customer requirements.

• Socket end size: ASME B16.11; Provisions of JB/T7746 (SW).

• Butt welding end size: ASME B16.25; Provisions of JB/T7746 (BW).

• Thread end size: ASME B1.20.1(NPT); Regulations of GB/T7306(Rc).

• Inspection and test: API598; Regulations of GB/T26480

• Structural features: B·B(middle bolt) W·B(middle weld)

• Flow rate: Full diameter (FP) Reduced diameter (RP)

• Main material: A105N, LF2, LF3, F11, F5, F22, F304, F304L, F316, F316L, F321,F304H, F316H, F321H, F51, F53, F55, F91, F92, F347, 310S,  800H, 600, 625 special materials, etc.

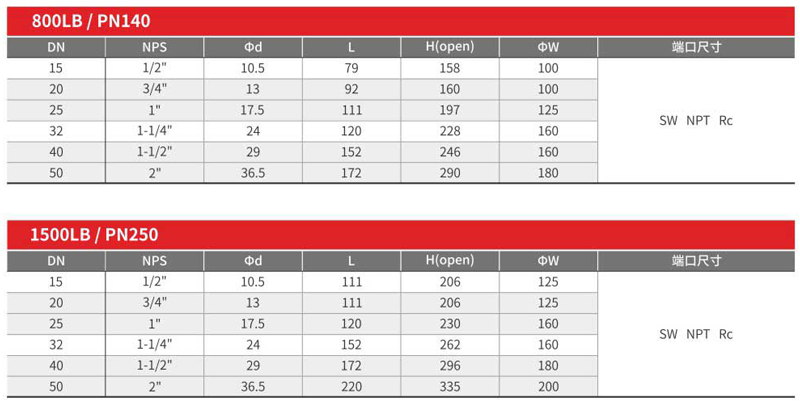

Forged steel welded globe valve:
