KF Stainless Steel Or Aluminum Vacuum Bulkhead Clamp Diaphragm Pipe with Good Sealing Factory Direct Sales

Share to:

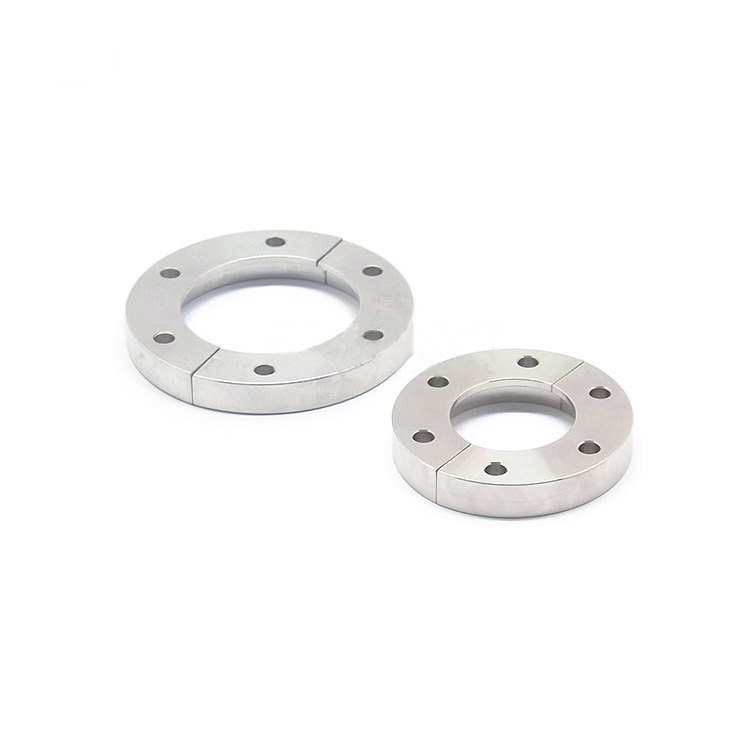

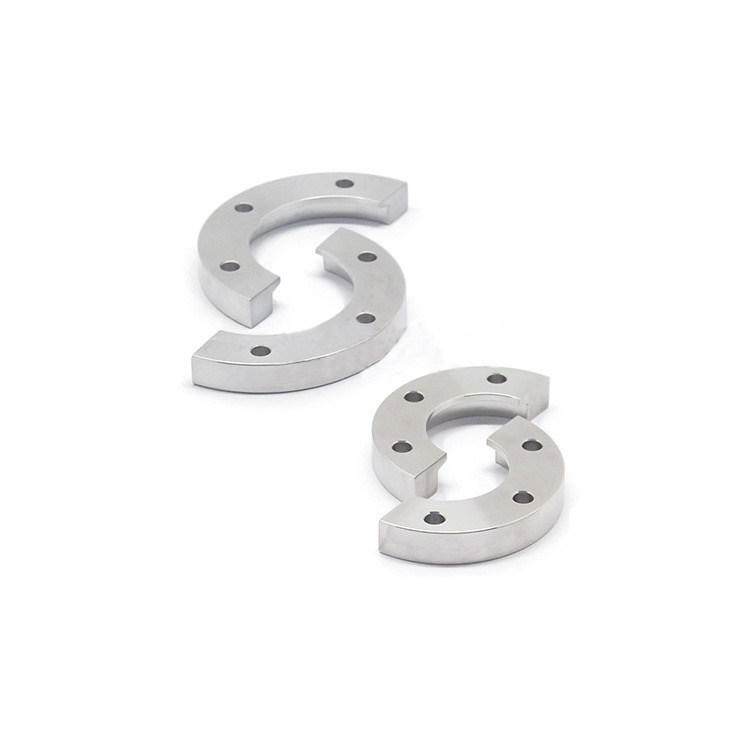

KF Stainless Steel Or Aluminum Vacuum Bulkhead Clamp Diaphragm Pipe with Good Sealing Factory Direct Sales

-Specifications: KF16, KF25, KF40, KF50，KF63
-Product material: ss304 AL
-Connection method: quick installation
-Scope of application: vacuum equipment, vacuum pipelines

Size:	KF16-KF63
Material:	Aluminum stainless steel
Availability:

Quantity:



Inquiry

Brand:
FOGO
item:
KF Stainless Steel Or Aluminum Vacuum Bulkhead Clamp
material:
cast steel, stainless steel, Aluminum
Warranty:
1 year

Structural Features：

These Aluminum KF-25 Bulkhead Clamps are commonly used to build foreline vacuum plumbing and process systems. Adapts to a baseplate or fixed flange. Uses standard KF seal assembly. Comes with 6 stainless steel 10-32 X 5/8 inch bolts and 6 washers. They are often called quick flange fittings because they are quick to assemble.

Advantage：

Adapts to a baseplate or fixed flange
Standard KF seal assembly
Stainless steel bolts and washers included

Material type：

Commonly used KF quick clamp material types: Al or SS304

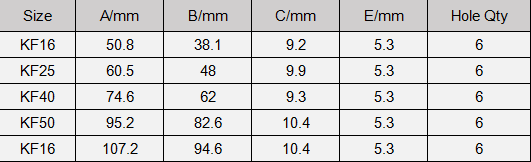

Specification

Item	KF Stainless Steel Or Aluminum Vacuum Bulkhead Clamp
Product name	KF Stainless Steel Or Aluminum Vacuum Bulkhead Clamp
Material	stainless steel, aluminum
Size	KF16-KF63
End Connection	/
Pressure range	/
Surface	Inner Ra.0.8um or specified
Standard	ISO
Gasket	PIFE, EPDM, Buna-N, Silicone, FPM etc.
Customized support	OEM
Media	Water, Oil, Gas, Air
Place of Origin	China
Certification	ISO
Application	In high-tech industries
