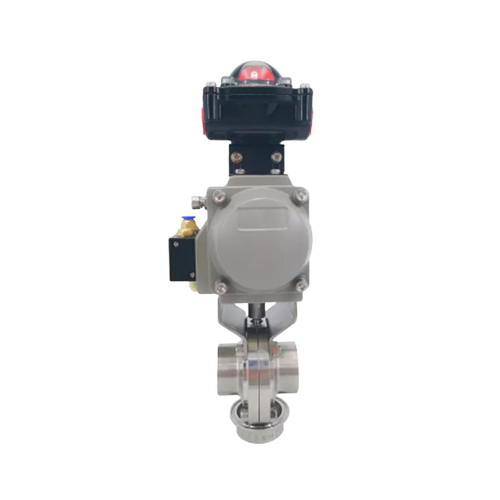

OEM Sanitary Actuated Weld Butterfly Valves with Limit Switch Warehouse

Operating Principles

• Stainless steel sanitary butterfly valves can be opened automatically through actuator or manually with handle.

• The handle blocks hygienic butterfly valves in the " open " or " closed " postion, certainly there are the other postion available.

• The actuator push piston of axial movement into 90 degree so that it controls sanitation butterfly valves.

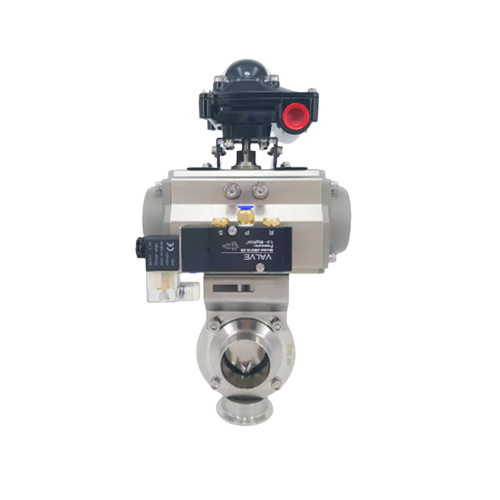

Sanitary Actuated Weld Butterfly Valves with Limit Switch

• Our Butterfly valve body could be offered with Weld end,Male end,female end,and Clamp end.Our butterfly valves can

• be installing with different type handles like 4 position pull handle,12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.

• The Butterfly valve body and disk are all made from full CNC machined,high grade level polish.

• All of the products have been 100%press tested before shipping.

• It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.

• EPDM,Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications

• in such as food,dairy,beverage,meat processing,chemical,and many other industries.

Standard Design

• Compact and robust design

• The size of multi position handle up to 1/2"/DN15 to 4"/DN100

• The size of full handle up to 1/2/DN15 to 12/DN300

• Manual handle,pneumatic actuator,electric actuator can be exchangeable with each other.

• Low pressure losses

• The valves body can be changeable with any kind of connection.

Specification

Body Type

Exploded view of Butterfly Valve

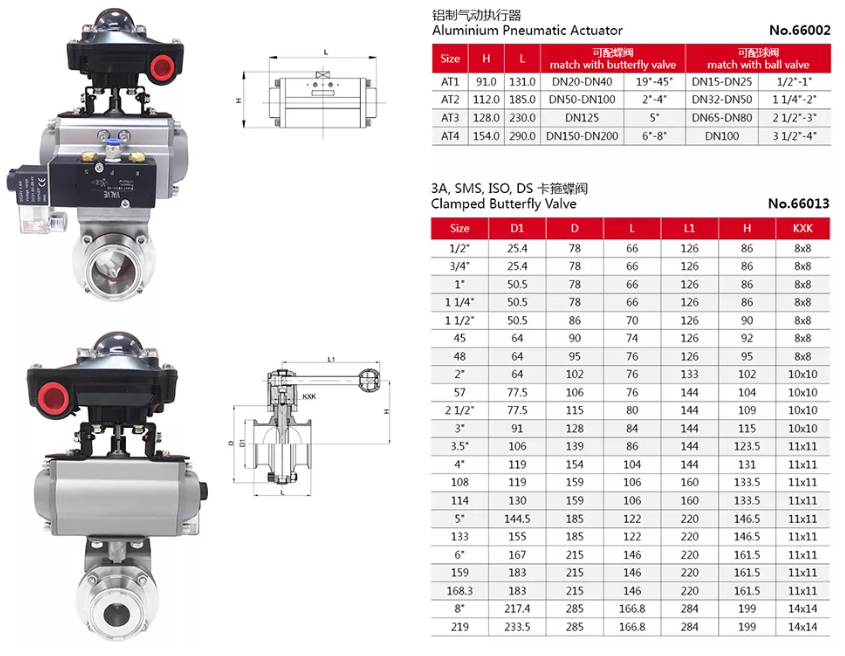

For example of sanitary actuated clamping butterfly valves

About Delivery

About Application
