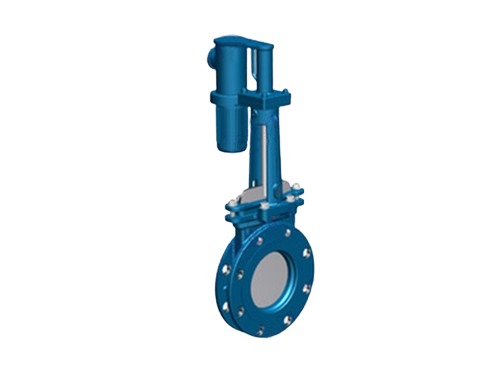

PZ273H-16C Cast Iron OEM Carbon Steel Customized Stainless Steel Electro-hydraulic Knife-type Gate Valve Factory

Share to:

PZ273H-16C Cast Iron OEM Carbon Steel Customized Stainless Steel Electro-hydraulic Knife-type Gate Valve Factory

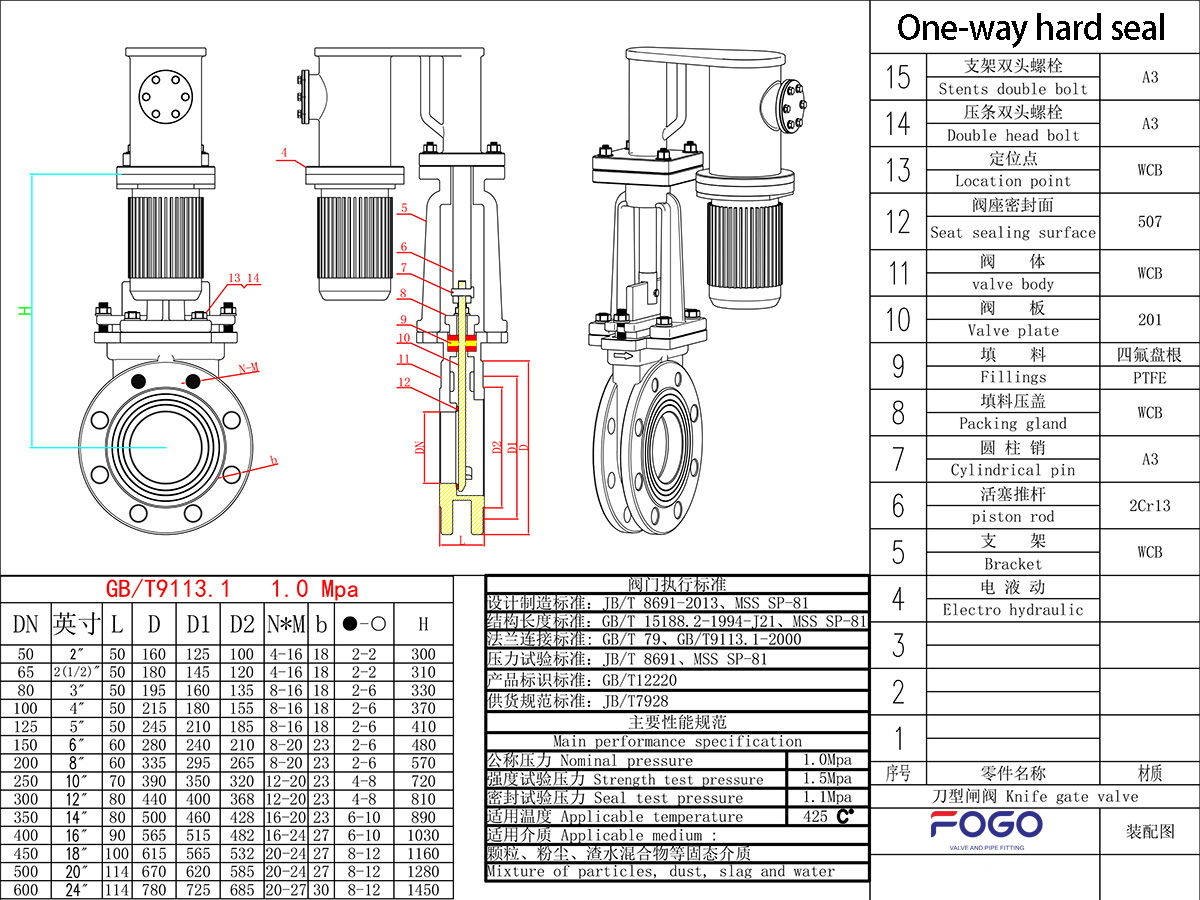

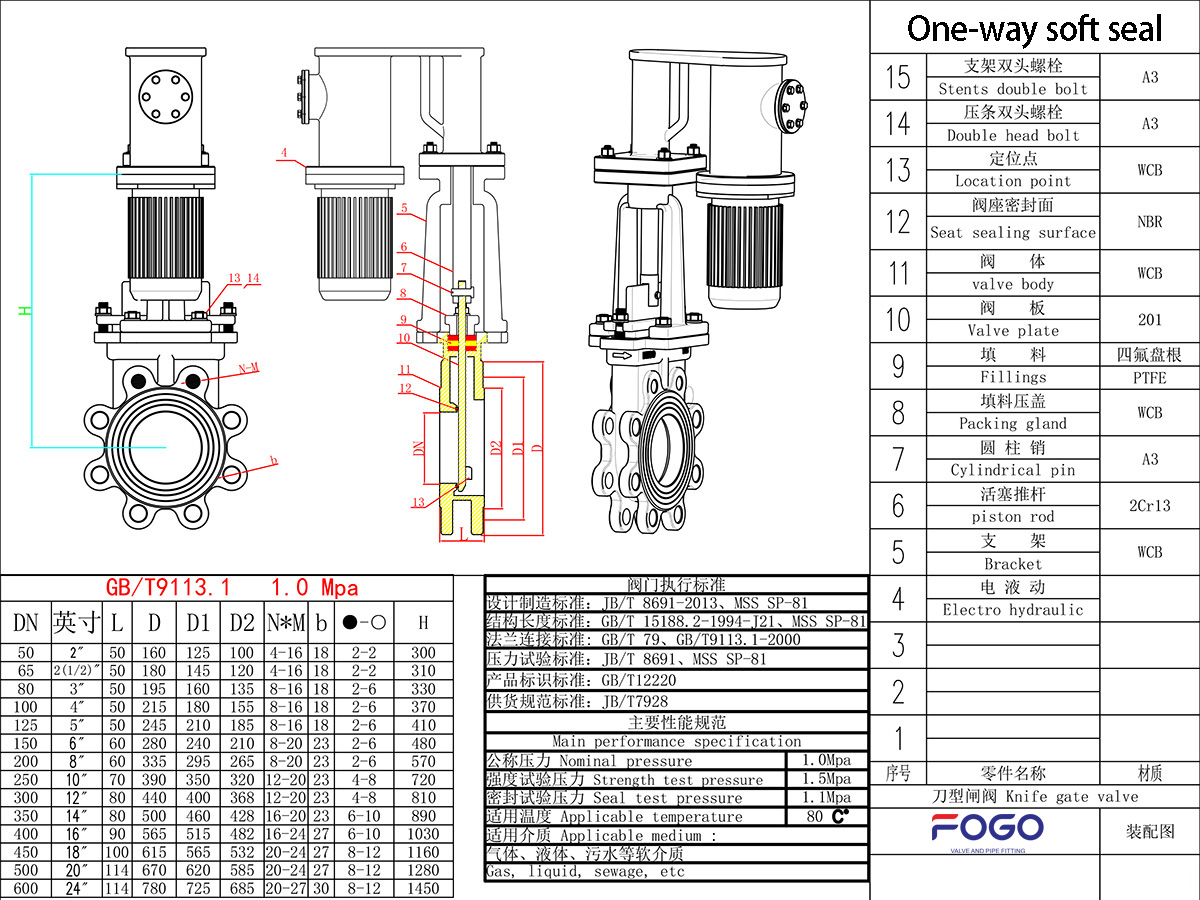

-Sealing structure: one-way sealing, two-way sealing
-Valve structure: open plate and open rod, concealed plate and open rod, penetrating type, two-way opening
-Bracket form: triangle type, four-column type, steel plate type, concealed plate type, arch bridge type (unique structure)
-Connection form: clamp, flange
-Nominal diameter: DN50~DN600 (can be customized)
-Working temperature: ≤1000℃ (specific temperature resistance is subject to the selected material)
-Nominal pressure: 0.6Mpa, 1.0Mpa, 1.6Mpa, 2.5Mpa, 5K, 10K, 150LB
-Actuator: hand wheel, pneumatic, hand pneumatic, electric, electro-hydraulic, hydraulic, bevel gear, sprocket, lever

Size:	DN50-DN600
Material:	cast steel stainless steel forged steel and other materials
Availability:

Quantity:



Inquiry

Model:
PZ273H-16C
Brand:
FOGO
item:
SS304 SS316 Stainless Steel Electro-hydraulic Knife-type Gate Valve
structure:
Flange
material:
cast steel, stainless steel, forged steel and other materials
Warranty:
1 year

Purpose and Functions:

The electro-hydraulic knife-type gate valve controls the opening and closing of the valve through the up and down push of the DYT series electro-hydraulic linkage device. If equipped with a sensor or digital display device, it can be controlled remotely or in centralized or programmatic control in high-altitude dangerous areas. The electro-hydraulic valve has large output force, high transmission efficiency and strong self-locking ability. It can be locked at any position through the control system to regulate flow and other functions.

Design Standards:

Design and manufacturing standards: JB/T 8691-2013, MSS SP-81
Structural length standard: GB/T 15188.2-1994-J21, MSS SP-81
Flange connection standards: GB/T 79, ASME B16.5, GB/T9113.1-2000
Pressure test standards: JB/T 8691, MSS SP-81
Gate grinding standard: GB/T 1184-1996 (level 12)
Valve seat finishing standard: GB/T 1184-1996 (Level 11)
Valve stem specification standard: JB/T 8691-2013
Stud bolt standard: GB899-76
Product identification standard: GB/T12220
Supply specification standard: JB/T7928

Specification

Item	SS304 SS316 Stainless Steel Electro-hydraulic Knife-type Gate Valve
Product name	SS304 SS316 Stainless Steel Electro-hydraulic Knife-type Gate Valve
Material	cast steel, stainless steel, forged steel and other materials
Size	DN50-DN600
End Connection	Flanged
Pressure range	0.6Mpa、1.0Mpa、1.6Mpa、2.5Mpa
Surface	Inner Ra.0.8um or specified
Standard	3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc.
Gasket	PIFE, EPDM, Buna-N, Silicone, FPM etc.
Customized support	OEM
Media	Water, Oil, Gas, Air
Place of Origin	China
Certification	ISO 9001,CE,TUV,SGS
Application	For use in harsh oil and gas fields
