PZ573H-16C SS304 SS316 Manual Bevel Gear Knife Type Gate Valve with Hard Seal Or Soft Seal Factory

Share to:

PZ573H-16C SS304 SS316 Manual Bevel Gear Knife Type Gate Valve with Hard Seal Or Soft Seal Factory

-Sealing structure: one-way sealing, two-way sealing
-Valve structure: open plate and open rod, concealed plate and open rod, penetrating type, two-way opening
-Bracket form: triangle type, four-column type, steel plate type, concealed plate type, arch bridge type (unique structure)
-Connection form: clamp, flange
-Nominal diameter: DN50~DN600 (can be customized)
-Working temperature: ≤1000℃ (specific temperature resistance is subject to the selected material)
-Nominal pressure: 0.6Mpa, 1.0Mpa, 1.6Mpa, 2.5Mpa, 5K, 10K, 150LB
-Actuator: hand wheel, pneumatic, hand pneumatic, electric, electro-hydraulic, hydraulic, bevel gear, sprocket, lever

Size:	DN50-DN600
Material:	cast steel stainless steel forged steel and other materials
Availability:

Quantity:



Inquiry

Model:
PZ573H-16C
Brand:
FOGO
item:

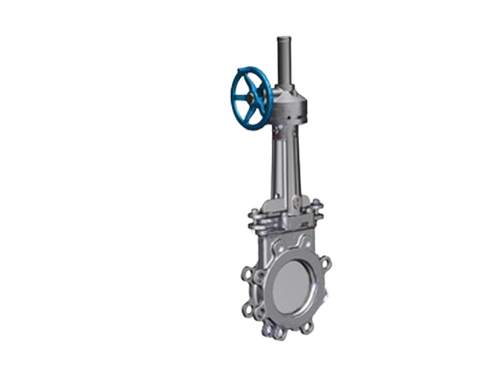

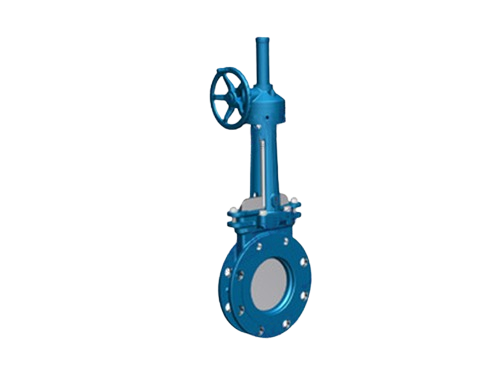

SS304 SS316 Manual Bevel Gear Knife Type Gate Valve
structure:
Flange
material:
cast steel, stainless steel, forged steel and other materials
Warranty:
1 year

Purpose and Functions:

The bevel gear knife type gate valve is driven by bevel gear reduction and is easy and flexible to operate. It is often used for manual operation in relatively large diameter or high pressure situations.
The bevel gear knife gate valve uses a manual handwheel to open and close the gate, causing the valve stem to rise and fall, thereby driving the gate plate to move up and down, opening and closing the valve. Counterclockwise operation opens the gate up valve, and clockwise operation closes the gate down valve.

Design Standards:

Design and manufacturing standards: JB/T 8691-2013, MSS SP-81
Structural length standard: GB/T 15188.2-1994-J21, MSS SP-81
Flange connection standards: GB/T 79, ASME B16.5, GB/T9113.1-2000
Pressure test standards: JB/T 8691, MSS SP-81
Gate grinding standard: GB/T 1184-1996 (level 12)
Valve seat finishing standard: GB/T 1184-1996 (Level 11)
Valve stem specification standard: JB/T 8691-2013
Stud bolt standard: GB899-76
Product identification standard: GB/T12220
Supply specification standard: JB/T7928

Specification

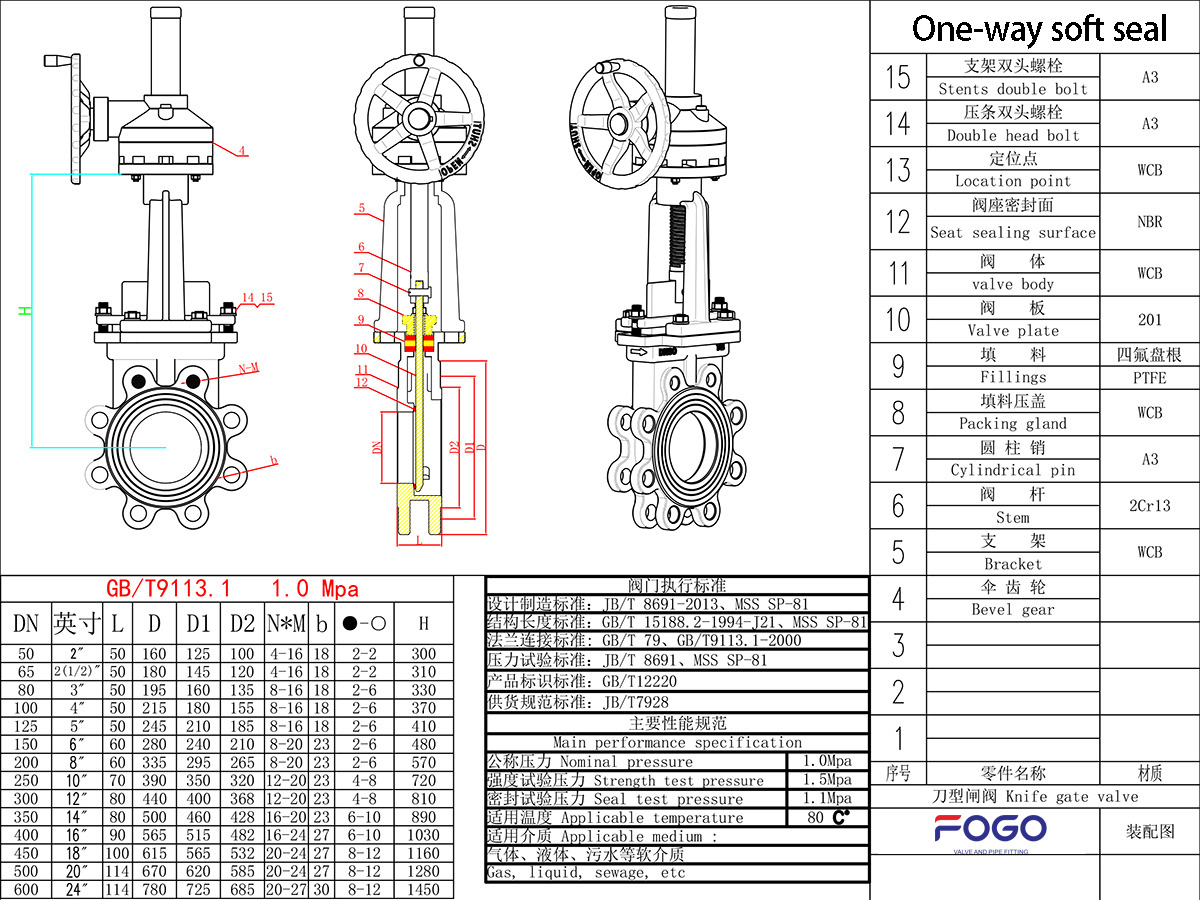

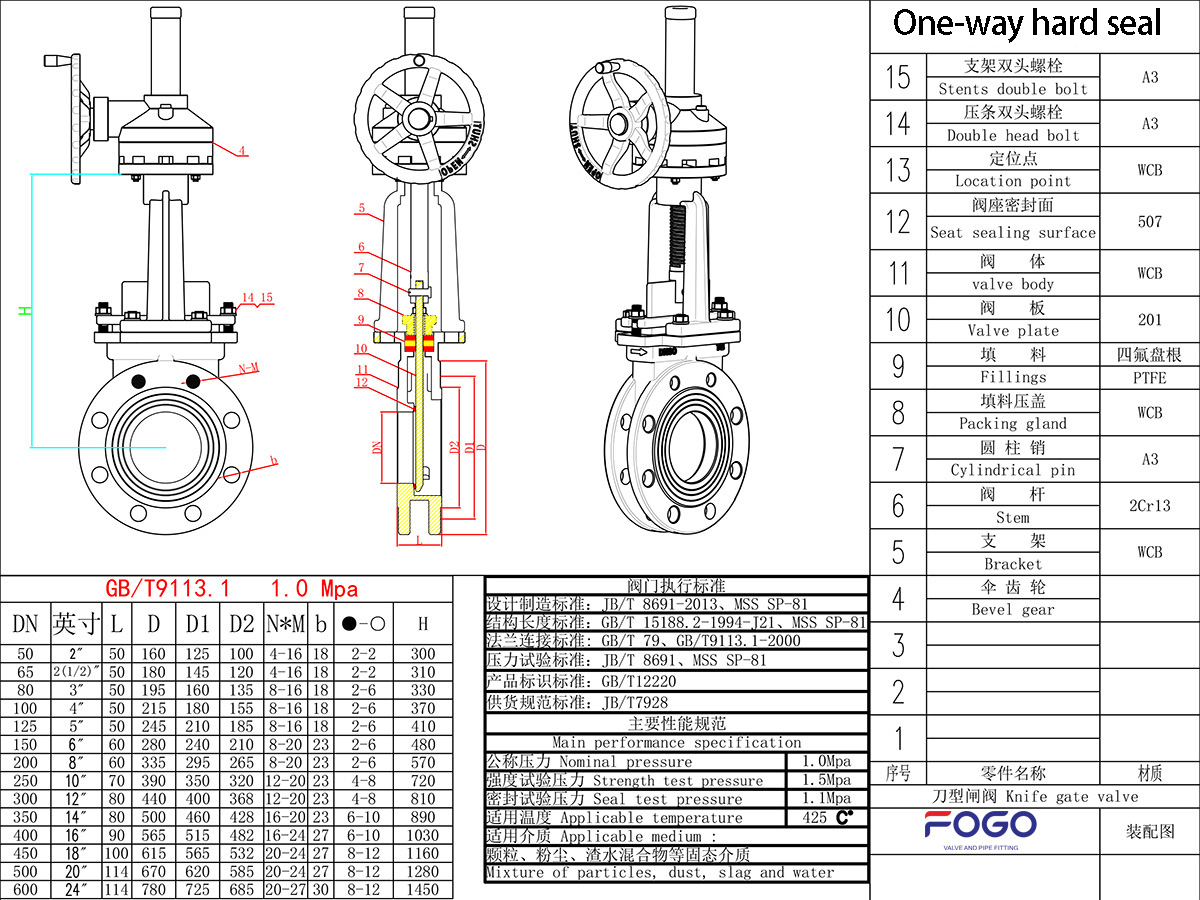

Item	SS304 SS316 Stainless Steel Manual Bevel Gear Knife Type Gate Valve
Product name	SS304 SS316 Stainless Steel Manual Bevel Gear Knife Type Gate Valve
Material	cast steel, stainless steel, forged steel and other materials
Size	DN50-DN600
End Connection	Flanged
Pressure range	0.6Mpa、1.0Mpa、1.6Mpa、2.5Mpa
Surface	Inner Ra.0.8um or specified
Standard	3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc.
Gasket	PIFE, EPDM, Buna-N, Silicone, FPM etc.
Customized support	OEM
Media	Water, Oil, Gas, Air
Place of Origin	China
Certification	ISO 9001,CE,TUV,SGS
Application	For use in harsh oil and gas fields
