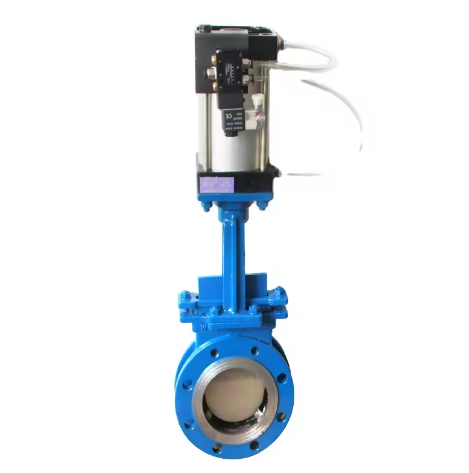

PZ673H-16C Cast Iron Hot Sale Carbon Steel Customized Stainless Steel Pneumatic Rising Stem Type Knife Gate Valve Factory

Share to:

PZ673H-16C Cast Iron Hot Sale Carbon Steel Customized Stainless Steel Pneumatic Rising Stem Type Knife Gate Valve Factory

-Sealing structure: one-way sealing, two-way sealing
-Valve structure: open plate and open rod, concealed plate and open rod, penetrating type, two-way opening
-Bracket form: triangle type, four-column type, steel plate type, concealed plate type, arch bridge type (unique structure)
-Connection form: clamp, flange
-Nominal diameter: DN50~DN600 (can be customized)
-Working temperature: ≤1000℃ (specific temperature resistance is subject to the selected material)
-Nominal pressure: 0.6Mpa, 1.0Mpa, 1.6Mpa, 2.5Mpa, 5K, 10K, 150LB
-Actuator: hand wheel, pneumatic, hand pneumatic, electric, electro-hydraulic, hydraulic, bevel gear, sprocket, lever

Size:	DN50-DN600
Material:	cast steel stainless steel forged steel and other materials
Availability:

Quantity:



Inquiry

Model:
PZ673H-16C
Brand:
FOGO
item:
SS304 SS316 Stainless Steel Pneumatic Rising Stem Type Knife Gate Valve
structure:
Flange
material:
cast steel, stainless steel, forged steel and other materials
Warranty:
1 year

Purpose and Functions:

A fully circular channel design is adopted. A polytetrafluoroethylene and a mud scraper are installed on the upper end of the knife plate. A wear-resistant folding cone made of polyurethane or Ni-containing wear-resistant cast iron is installed at the inlet end of the knife gate valve. Multiple flushing ports are provided around the valve body. The bottom end of the blade is processed into a blade with high smoothness, ensuring good sealing. It widely meets the requirements of papermaking, pulp industry, industrial sewage and urban sewage treatment, chemical plants, fly ash treatment, bulk material transportation, food and beverage industry and harsh and slow working conditions.

Design Standards:

Design and manufacturing standards: JB/T 8691-2013, MSS SP-81
Structural length standard: GB/T 15188.2-1994-J21, MSS SP-81
Flange connection standards: GB/T 79, ASME B16.5, GB/T9113.1-2000
Pressure test standards: JB/T 8691, MSS SP-81
Gate grinding standard: GB/T 1184-1996 (level 12)
Valve seat finishing standard: GB/T 1184-1996 (Level 11)
Valve stem specification standard: JB/T 8691-2013
Stud bolt standard: GB899-76
Product identification standard: GB/T12220
Supply specification standard: JB/T7928

Specification

Item	SS304 SS316 Stainless Steel Pneumatic Rising Stem Type Knife Gate Valve
Product name	SS304 SS316 Stainless Steel Pneumatic Rising Stem Type Knife Gate Valve
Material	cast steel, stainless steel, forged steel and other materials
Size	DN50-DN600
End Connection	Flanged
Pressure range	0.6Mpa、1.0Mpa、1.6Mpa、2.5Mpa
Surface	Inner Ra.0.8um or specified
Standard	3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc.
Gasket	PIFE, EPDM, Buna-N, Silicone, FPM etc.
Customized support	OEM
Media	Water, Oil, Gas, Air
Place of Origin	China
Certification	ISO 9001,CE,TUV,SGS
Application	For use in harsh oil and gas fields
