Q44F-16P
FOGO

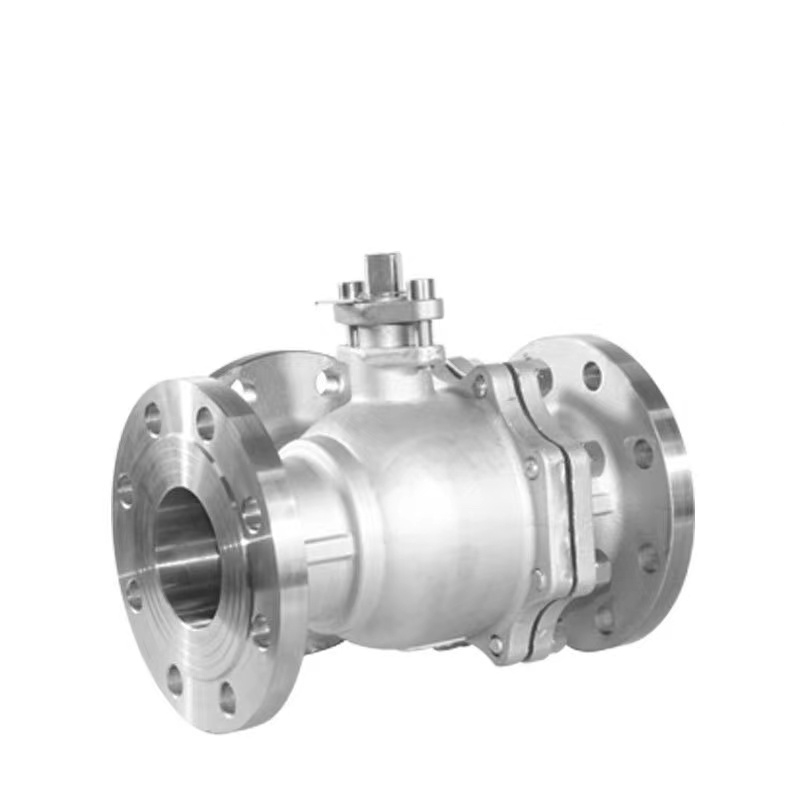

Industrial Stainless Steel Three-way flange L-type ball valve
Flange
cast steel, stainless steel, forged steel and other materials
1 year
Purpose and functions:
The two-seat sealing ball valve and the three-way ball valve have a compact structure, beautiful appearance, and good sealing performance. They can also switch the flow direction of the pipeline medium, and can also connect or close two channels that are perpendicular to each other.
Applicable media: water, oil, gas and other non-corrosive media and acid-base corrosive media
Operating temperature: -28~350℃
Applicable standards:
Ball valve design standards: API6D, BS5351, ASME B16.34
Length standard: ASME B16.10, AP6D
Flange standard: ASME B16.5 / ASME B16.47
Butt welding end standard: ASME B16.25
Fire test: API607, API6A
Inspection and pressure test standards: API 598, API6D
Standard Design:
Design basis: GB/T ASME
Design standard: GB/T 12237 ASME B16.34
Structural length: GB/T 12221 ASME B16.10
Connecting flange: GB/T 9113 JB79 ASME B16.5
Testing and inspection: GB/T 12237 JB9092 API 598
Specification
| Item | Stainless Steel Manual Three-way Flange L-type Ball Valve |
| Product name | Stainless Steel Manual Three-way Flange L-type Ball Valve |
| Material | cast steel, stainless steel, forged steel and other materials |
| Size | DN15 to DN200 |
| End Connection | Flanged |
| Pressure range | 1.0mpa/PN10mpa |
| Surface | Inner Ra.0.8um or specified |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | For use in harsh oil and gas fields |

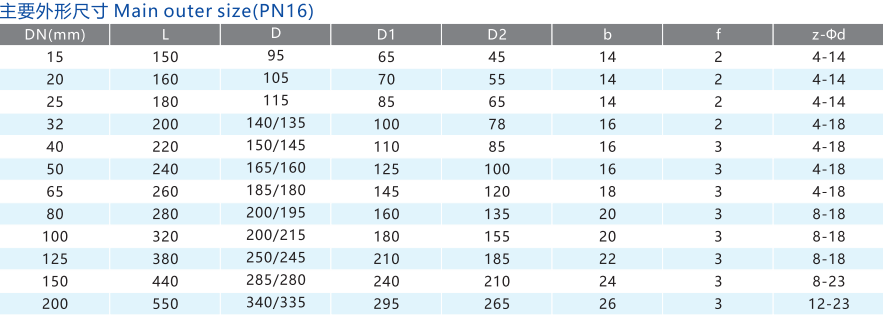

Body Type
L Port Position

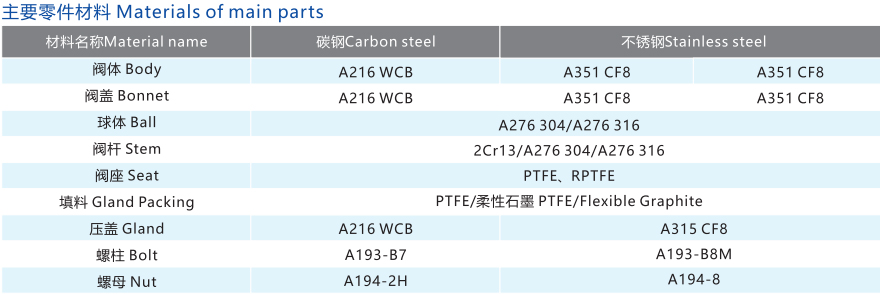

Materials of Main parts
About Delivery
About Application
