Q45F46-16C
FOGO

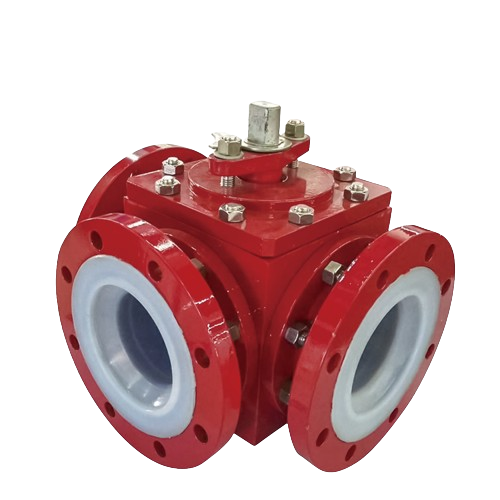

Industrial Cast Iron Fluorine-lined Three-way Ball Valve
Flange
cast steel, stainless steel, forged steel and other materials
1 year
Purpose and functions:
Fluorine-lined three-way ball valve, optional T-type or L-type flow channel, with low fluid resistance, smooth inner wall of the lined ball valve, using a special molding process to line the inner wall of the valve housing with lining material, which can withstand corrosion from strong acid and alkali media; lining spherical surface Combined with the PTFE valve seat, it has good sealing performance; the ball and the valve are integrated into an integrated structure, which eliminates the rotation angle difference and eliminates the risk of the valve stem rushing out of the body due to pressure changes, ensuring the safety and reliability of use.
Product Features:
●Corrosion: resistant to corrosion by almost all media (including concentrated nitric acid and aqua regia).
●Large circulation capacity and unrestricted medium flow direction.
●Good sealing performance and small leakage; the sealing valve seat is made of polytetrafluoroethylene, which has reliable sealing and self-lubricating properties and low leakage.
●In addition to being suitable for general gases and liquids, it is also suitable for media with high viscosity and fibrous and suspended soft particles.
●Simple structure and easy maintenance.
● Equipped with multi-spring rack and pinion pneumatic actuator and angular stroke electric actuator, it is convenient for application in various environments. It is a control and cut-off system that is currently used in large quantities.
●Lining materials: FEP, PFA, GXPO, etc.
●Drive mode: manual, worm gear, electric, pneumatic, hydraulic

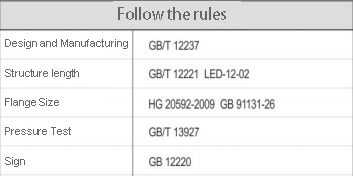

Standard Design：
Design basis: GB/T ASME
Design standard: GB/T 12237 ASME B16.34
Structural length: GB/T 12221 ASME B16.10
Connecting flange: GB/T 9113 JB79 ASME B16.5
Testing and inspection: GB/T 12237 JB9092 API 598
Specification
| Item | Stainless Steel Manual Three-way Flange T-type Ball Valve |
| Product name | Stainless Steel Manual Three-way Flange T-type Ball Valve |
| Material | cast steel, stainless steel, forged steel and other materials |
| Size | DN25 to DN300 |
| End Connection | Flanged |
| Pressure range | 1.0mpa/PN10mpa |
| Surface | Inner Ra.0.8um or specified |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | For use in harsh oil and gas fields |
Body Type

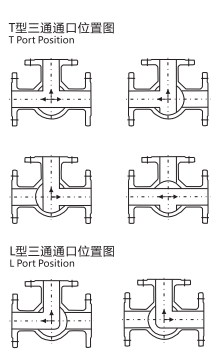

T Port Position
Application Guidelines
About Delivery
About Application
Purpose and functions:
Fluorine-lined three-way ball valve, optional T-type or L-type flow channel, with low fluid resistance, smooth inner wall of the lined ball valve, using a special molding process to line the inner wall of the valve housing with lining material, which can withstand corrosion from strong acid and alkali media; lining spherical surface Combined with the PTFE valve seat, it has good sealing performance; the ball and the valve are integrated into an integrated structure, which eliminates the rotation angle difference and eliminates the risk of the valve stem rushing out of the body due to pressure changes, ensuring the safety and reliability of use.
Product Features:
●Corrosion: resistant to corrosion by almost all media (including concentrated nitric acid and aqua regia).
●Large circulation capacity and unrestricted medium flow direction.
●Good sealing performance and small leakage; the sealing valve seat is made of polytetrafluoroethylene, which has reliable sealing and self-lubricating properties and low leakage.
●In addition to being suitable for general gases and liquids, it is also suitable for media with high viscosity and fibrous and suspended soft particles.
●Simple structure and easy maintenance.
● Equipped with multi-spring rack and pinion pneumatic actuator and angular stroke electric actuator, it is convenient for application in various environments. It is a control and cut-off system that is currently used in large quantities.
●Lining materials: FEP, PFA, GXPO, etc.
●Drive mode: manual, worm gear, electric, pneumatic, hydraulic
Standard Design：
Design basis: GB/T ASME
Design standard: GB/T 12237 ASME B16.34
Structural length: GB/T 12221 ASME B16.10
Connecting flange: GB/T 9113 JB79 ASME B16.5
Testing and inspection: GB/T 12237 JB9092 API 598

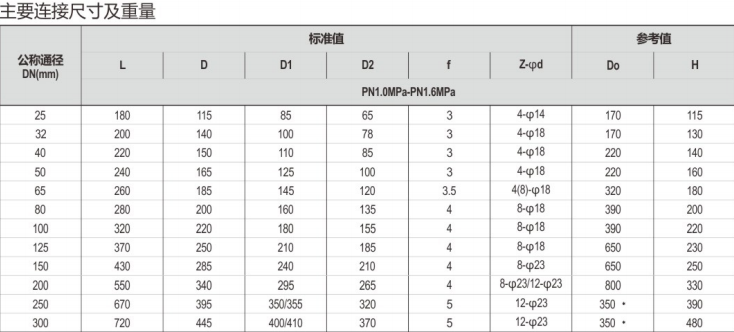

Specification
