Q61F-16C
FOGO

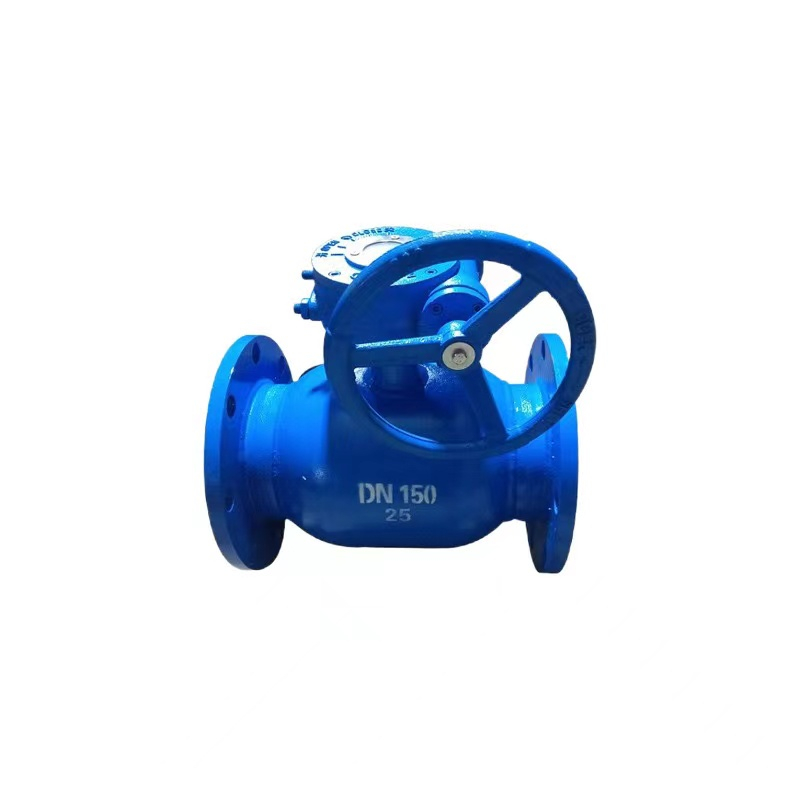

Industrial Carbon Steel Flange Type Fully Welded Ball Valve with Handle
Flange
cast steel, stainless steel, forged steel and other materials
1 year
Purpose and Functions:
Equipment used for output pipelines, main lines, and branch lines of large heating equipment
Since the valve seat is made of carbonized Teflon sealing rings and disc springs, it has strong adaptability to pressure and temperature changes and will not cause any leakage within the marked pressure and temperature range.
Structural Features and Uses：
Fully welded ball valve, there will be no external leakage.
The processing process of the sphere is tracked and detected by advanced computer detectors, so the processing accuracy of the sphere is high.
Since the material of the valve body is the same as that of the pipe, there will be no uneven stress and no
deformation due to earthquakes or vehicles passing over the ground. The pipe is resistant to aging.
The sealing ring body is made of RPTFE material with 25% Carbon content, ensuring no leakage (0%).
Directly buried welded ball valves can be buried directly underground. There is no need to build high and large valve wells. Instead, only small shallow wells need to be set up on the ground, which greatly saves construction costs and engineering time.
The length of the valve body and the height of the valve stem can be adjusted according to the construction and design requirements of the pipeline.
The processing accuracy of the sphere is very precise, the operation is light and there is no harmful interference.
Using high-grade raw materials, it can maintain pressure above PN25.
Compared with products of the same specification in similar industries, the valve body is small and beautiful in appearance.
Precautions：
When the valve diameter is DN125 or larger, we recommend turbine box operation
Extended valves, buried valves or valves installed in places that are not easily accessible and directly constructed can be equipped with extension rods and pipe fittings. The size can be customized according to user requirements.
Specification
| Item | Carbon Steel Full Welded Full Diameter Or Reduce Diameter Ball Valve |
| Product name | Carbon Steel Full Welded Full Diameter Or Reduce Diameter Ball Valve |
| Material | cast steel, stainless steel, forged steel and other materials |
| Size | DN10 to DN400 |
| End Connection | Flanged/ Welded |
| Pressure range | PN16/PN25/PN40 |
| Surface | Inner Ra.0.8um or specified |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Application | For use in harsh oil and gas fields |

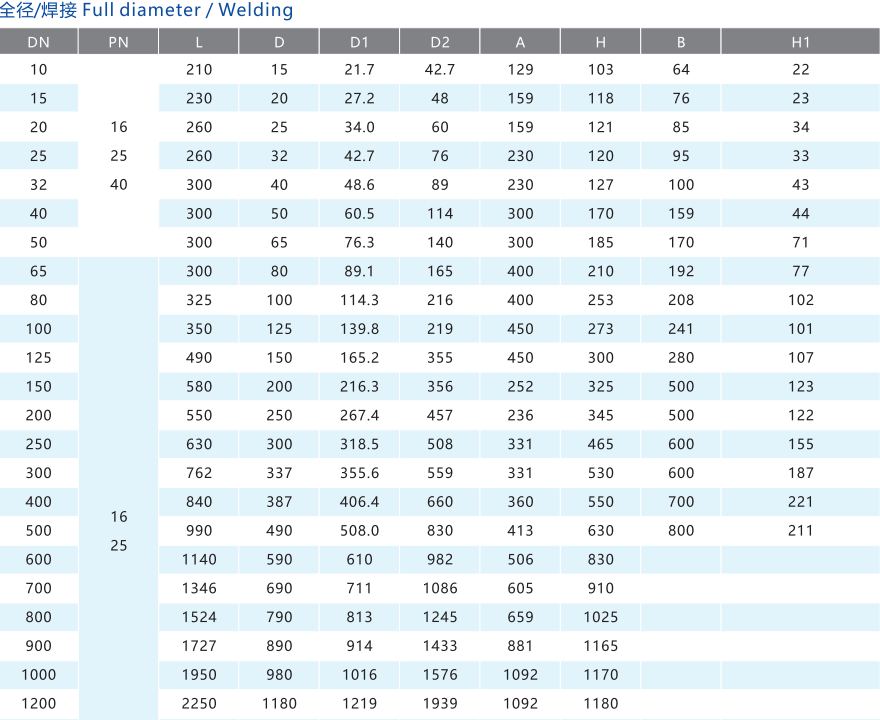

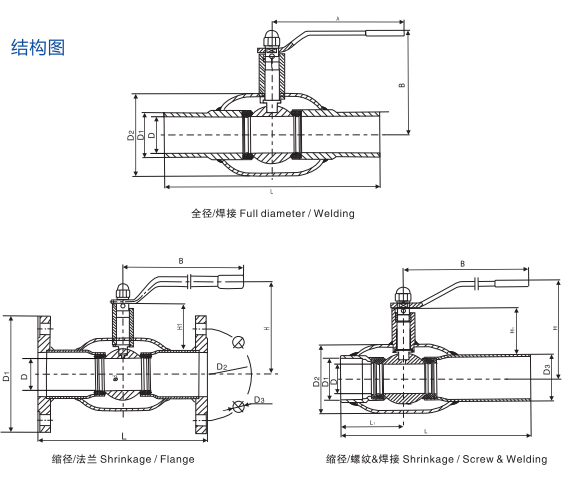

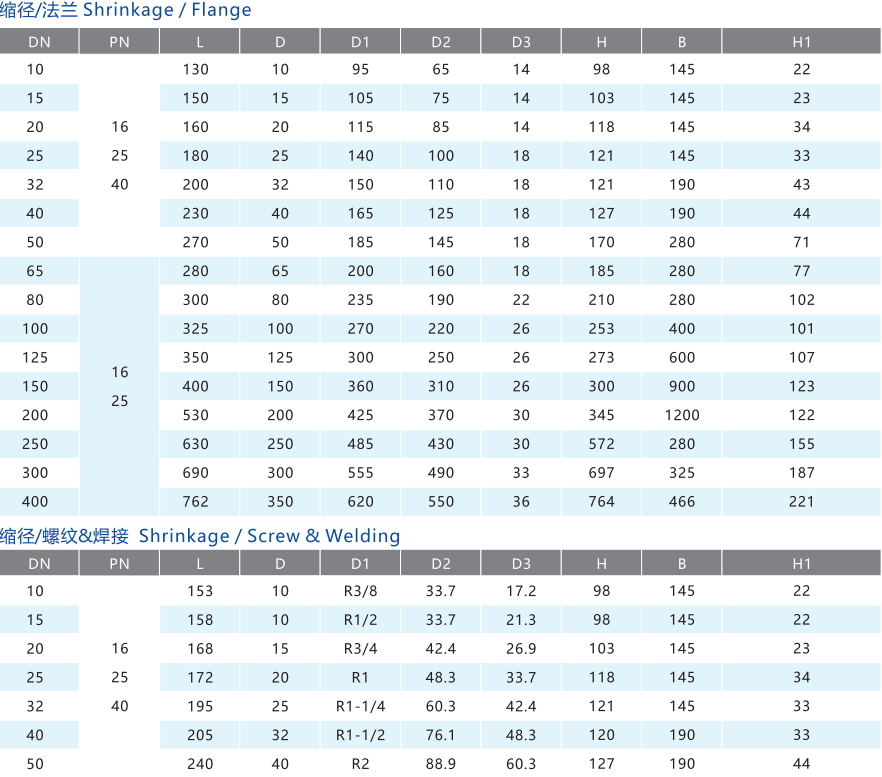

Body Type

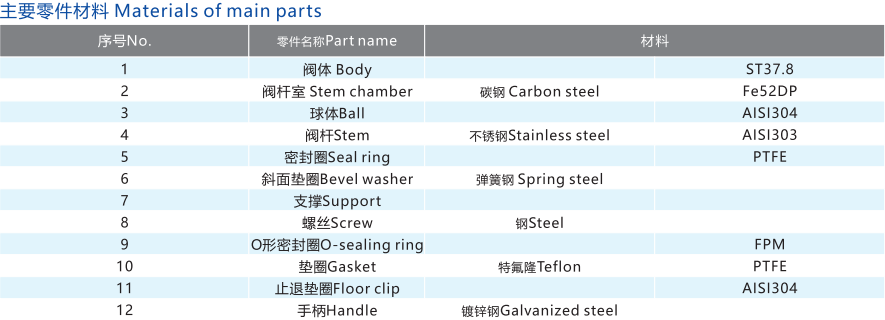

Materials of Main Parts
About Delivery
About Application
