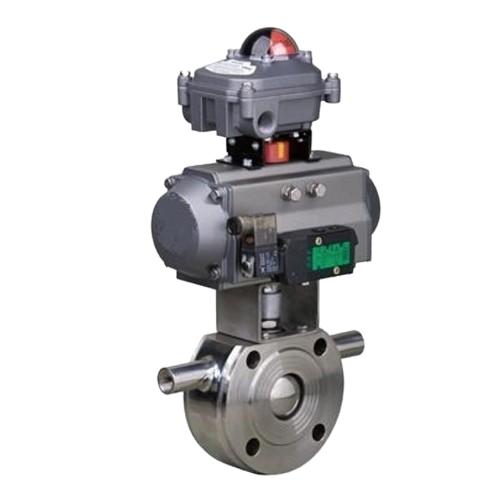

Q71F-16P CFBM Thin Body Ball Valve Ultra-thin Thermal Insulation Pneumatic Ball Valve Warehouse

Purpose and functions:

• Thin thermal insulation ball valve, Italian ultra-thin thermal insulation ball valve has a compact structure, small size, light weight, good sealing performance, flexible opening and closing, and the thermal insulation clamp connection ball valve has good thermal insulation and cold insulation characteristics, which can effectively prevent the viscous medium in the pipeline from solidifying, and It can reduce the heat loss of the medium in the pipeline.

• Thin thermal insulation ball valve, Italian ultra-thin thermal insulation ball valve can be equipped with corresponding electric and pneumatic devices to achieve remote control or automatic control. Applicable to various systems such as petroleum, chemical industry, metallurgy, pharmaceuticals, food, etc.

Product features

• Valve stem explosion-proof and blow-out-proof design

• Full silica sol precision casting

• Full bore

• Handle operation (optional locking handle)

• Material: WCB, CF8(SS304), CF8M(SS316), SS201

• Pressure: PN16/PN40

• Seat material: PTFE, RPTFE, PEEK, PCTFE




Applicable standards:

• Ball valve design standards: API6D, BS5351, ASME B16.34

• Length standard: ASME B16.10, AP6D

• Flange standard: ASME B16.5 / ASME B16.47

• Butt welding end standard: ASME B16.25

• Fire test: API607, API6A

• Inspection and pressure test standards: API 598, API6D

Standard Design

• Nominal pressure: PN1.6, 2.5, 4.0, 6.4mpa

• Strength test pressure: PT2.4, 3.8, 6.0, 9.6mpa

• Low air pressure seal test pressure: 0.6MPA

• Applicable media: Q41F-(16-64)C water, oil, gas

• Operating temperature: -29~180℃

• Applicable medium: Q41F-(16-64)P nitric acid

• Q41F-(16-64)P acetic acid

• Operating temperature: -29℃~180℃

Specification

Body Type

Materials of Main parts



About Delivery

About Application
