Q71F-16P
FOGO

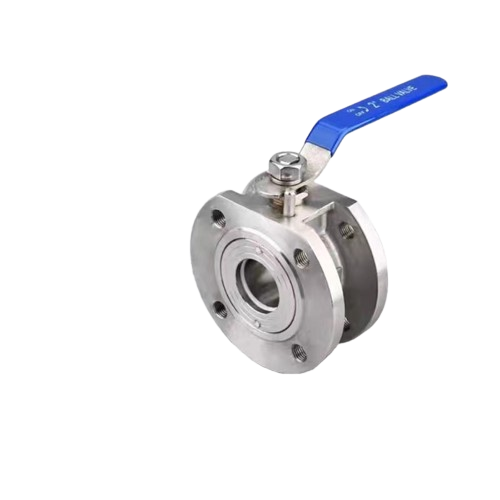

Industrial Grade Cast Steel Flange Type Ball Valve
Flange
cast steel, stainless steel, forged steel and other materials
1 year
Purpose and functions:
Compared with ordinary ball valves, wafer thin ball valves have significant advantages such as short structural length, light weight, easy installation, and material saving. The thermal insulation jacketed ball valve has good thermal insulation effect. In addition, the valve seat adopts an elastic sealing structure, which ensures reliable sealing and easy opening and closing. Equipped with a fire-resistant structure, it can still operate reliably and has good sealing in the event of a fire. According to user needs, an anti-electricity structure can be provided. A 90° switch with hole positioning piece is provided, which can be locked as needed to prevent misoperation.
Product usage: Wafer ball valves and wafer insulation jacketed ball valves are suitable for Class150, PN1.0~2.5MPa, working temperature 29~180℃ (the sealing ring is reinforced polytetrafluoroethylene) or 29~300℃ (the sealing ring is reinforced polytetrafluoroethylene) (polystyrene) on various pipelines, used to cut off or connect the medium in the pipeline. Different materials are selected, which can be applied to water, steam, oil, nitric acid, acetic acid, oxidizing media, urea, etc. medium.
Product features
Valve stem explosion-proof and blow-out-proof design
Full silica sol precision casting
Full bore
Handle operation (optional locking handle)
Material: WCB, CF8(SS304), CF8M(SS316), SS201
Pressure: PN16/PN40
Seat material: PTFE, RPTFE, PEEK, PCTFE
Applicable standards:
Ball valve design standards: API6D, BS5351, ASME B16.34
Length standard: ASME B16.10, AP6D
Flange standard: ASME B16.5 / ASME B16.47
Butt welding end standard: ASME B16.25
Fire test: API607, API6A
Inspection and pressure test standards: API 598, API6D
Standard Design
Nominal pressure: PN1.6, 2.5, 4.0, 6.4mpa
Strength test pressure: PT2.4, 3.8, 6.0, 9.6mpa
Low air pressure seal test pressure: 0.6MPA
Applicable media: Q41F-(16-64)C water, oil, gas
Operating temperature: -29~180℃
Applicable medium: Q41F-(16-64)P nitric acid
Q41F-(16-64)P acetic acid
Operating temperature: -29℃~180℃
Specification
| Item | Stainless Steel CFBM Wafer Type Ball Valve Thin Body Ball Valve |
| Product name | Stainless Steel CFBM Wafer Type Ball Valve Thin Body Ball Valve |
| Material | cast steel, stainless steel, forged steel and other materials |
| Size | DN15 to DN150 |
| End Connection | Flanged |
| Pressure range | 1.0mpa/PN10mpa |
| Surface | Inner Ra.0.8um or specified |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Application | For use in harsh oil and gas fields |
