SS304 Stainless Steel Double Claw Clamp Vacuum Caliper Screw Groove ISO Standard Flange Clamp Supplier

Share to:

SS304 Stainless Steel Double Claw Clamp Vacuum Caliper Screw Groove ISO Standard Flange Clamp Supplier

-The ISO double claw clamp of an external hexagonal screw and a stainless steel hook claw.
-Chain vacuum clamp production process: die casting - polishing and shaping - assembly - cleaning and polishing - inspection - packaging and shipping
-Common specifications of chain clamps: M8,M10,M12,M14,M16

Size:	M8-M16
Material:	Aluminum stainless steel
Availability:

Quantity:



Inquiry

Brand:
FOGO
item:
Stainless Steel Vacuum Double Claw Clamp
material:
cast steel, stainless steel
Warranty:
1 year

Structural Features：

ISO double claws are used in combination with ISO vacuum flange, ISO center bracket, and ISO blind flange
ISO double claws can also be used with ISO vacuum bellows, ISO vacuum hose, ISO high vacuum angle valve, ISO vacuum system, ISO vacuum chamber

Scope of application：

ISO single chuck is mainly used for connection between ISO vacuum flanges
ISO single chuck can also be used to ISO63,ISO80,ISO125,ISO160,ISO200,ISO250,ISO320,ISO400,ISO500

Material type：

ISO hook material type: SS304 or SS316
ISO screw material type: SS304 or SS316

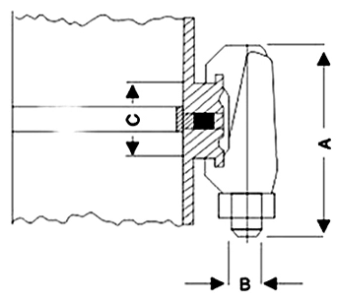

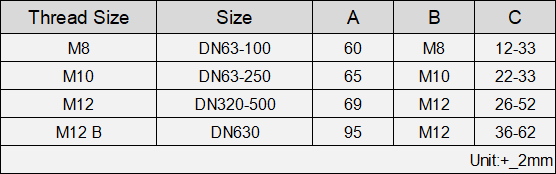

Specification

Item	Stainless Steel Vacuum Double Claw Clamp
Product name	Stainless Steel Vacuum Double Claw Clamp
Material	stainless steel, aluminum
Size	M8-M16
End Connection	/
Pressure range	/
Surface	Inner Ra.0.8um or specified
Standard	ISO
Gasket	PIFE, EPDM, Buna-N, Silicone, FPM etc.
Customized support	OEM
Media	Water, Oil, Gas, Air
Place of Origin	China
Certification	ISO
Application	In high-tech industries
