FOGO

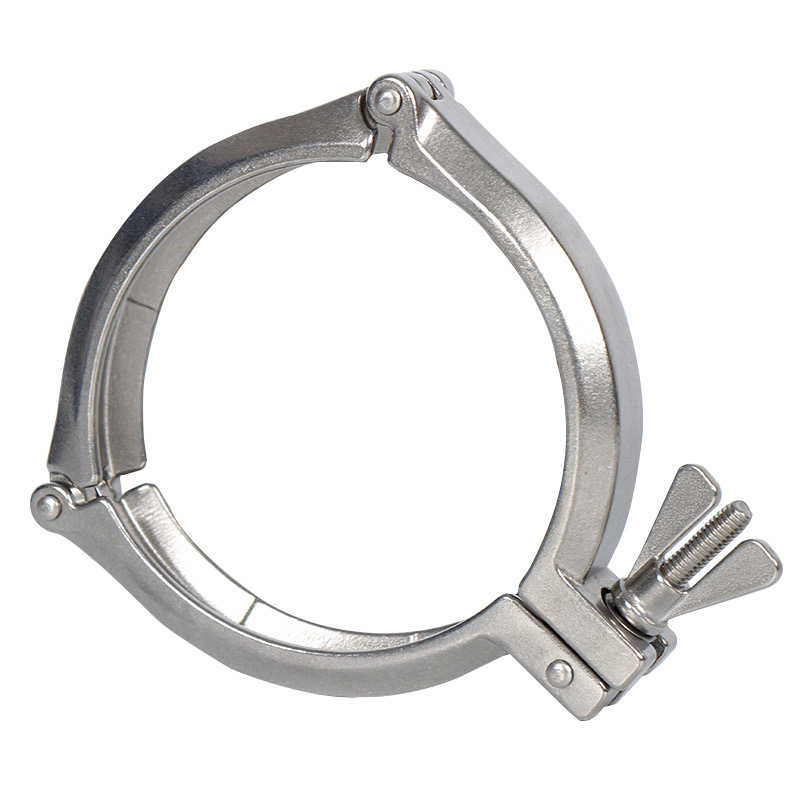

KF ISO Standard Vacuum Three-section Clamp
cast steel, stainless steel, Aluminum
1 year
Structural Features：
Three-section Clamp connection has good sealing performance due to uniform stress.
Three-section Clamp was originally used to connect KF vacuum pipeline systems used in glass processing to prevent the glass from being fragile.
Scope of application：
Three-section Clamp is mainly used for connection between KF vacuum flanges and KF diaphragm valve
Three-section Clamp can also be used to connect between KF vacuum bellows, KF vacuum joints, KF vacuum baffles, etc.

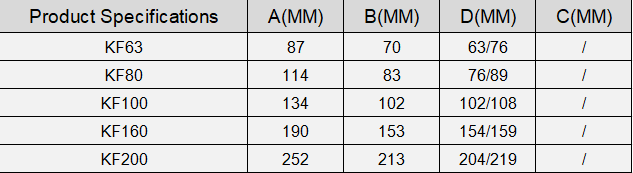

Chuck outer diameter 87mm-KF63
Chuck outer diameter 114mm-KF80
Chuck outer diameter 134mm-KF100
Chuck outer diameter 190mm-KF160
Material type：
Commonly used KF quick clamp material types: Al or SS304
Specification
| Item | KF ISO Standard Vacuum Three-section Clamp |
| Product name | KF ISO Standard Vacuum Three-section Clamp |
| Material | stainless steel, aluminum |
| Size | KF63-KF200 |
| End Connection | / |
| Pressure range | / |
| Surface | Inner Ra.0.8um or specified |
| Standard | ISO |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO |
| Application | In high-tech industries |
