Sanitary Elbow Pressure Gauge Type Air Relief Valve Supplier

Operating Principles

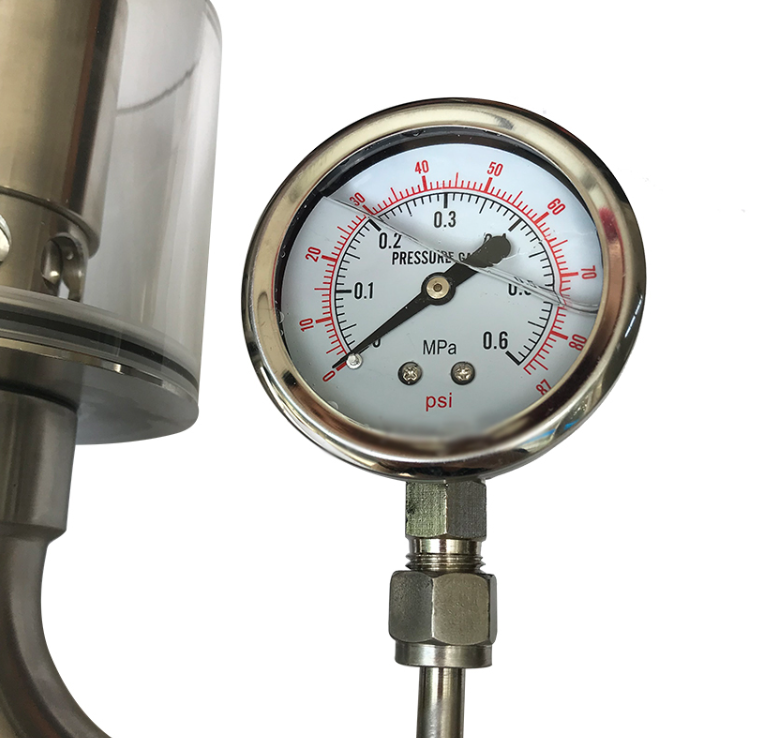

• The valve controls the pressure by adjusting the spring.When the pressure in the tank is bigger than the valve setting pressure,the valve seat automatically turns on,the pressure in the equipment system is released,and the beer fermentation is effectively processed.The tank is no more in high pressure,which may cause danger.The pressure can be set according to the user's need.The valve has a glass,which can be filled with water.It can be seen when gas comes out.A spare pressure gauge can be available

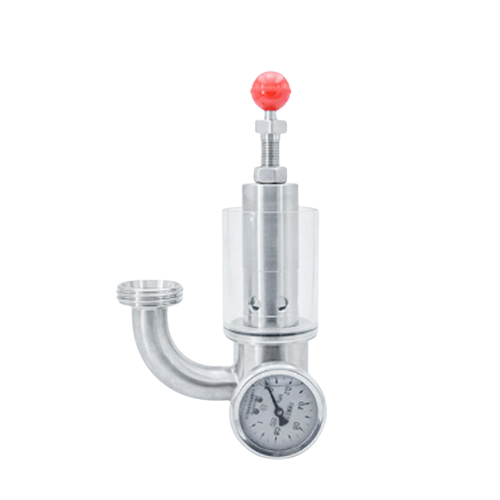

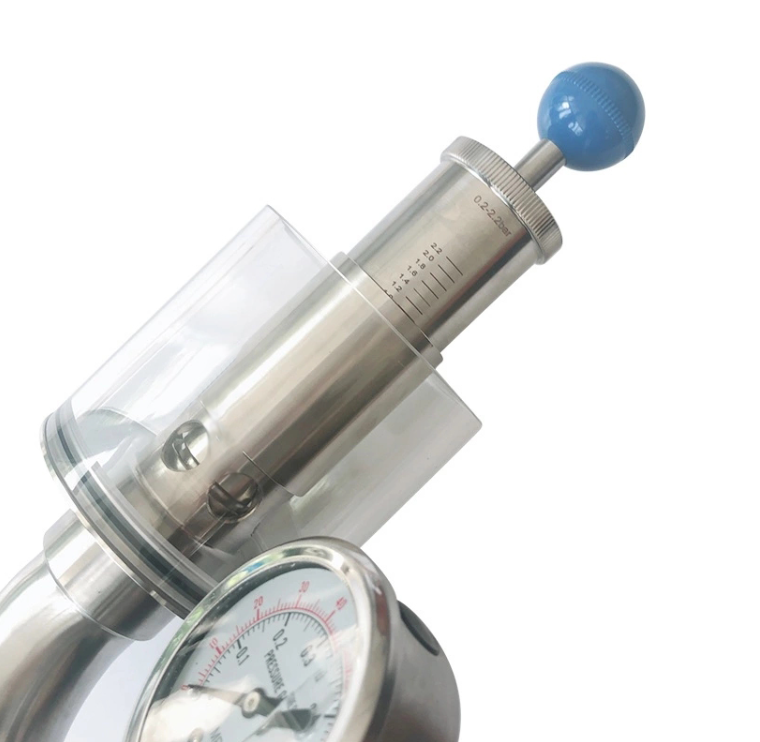

Sanitary Elbow Pressure Gauge Type Air Relief Valve

• Our Sanitary Air Exhaust Valve including Sanitary Clamped Air Relife Valve,Hygienic Thread Pressure Relief Safety Valve,Stainless Steel Safety Exhaust Valve With Pressure Guage.

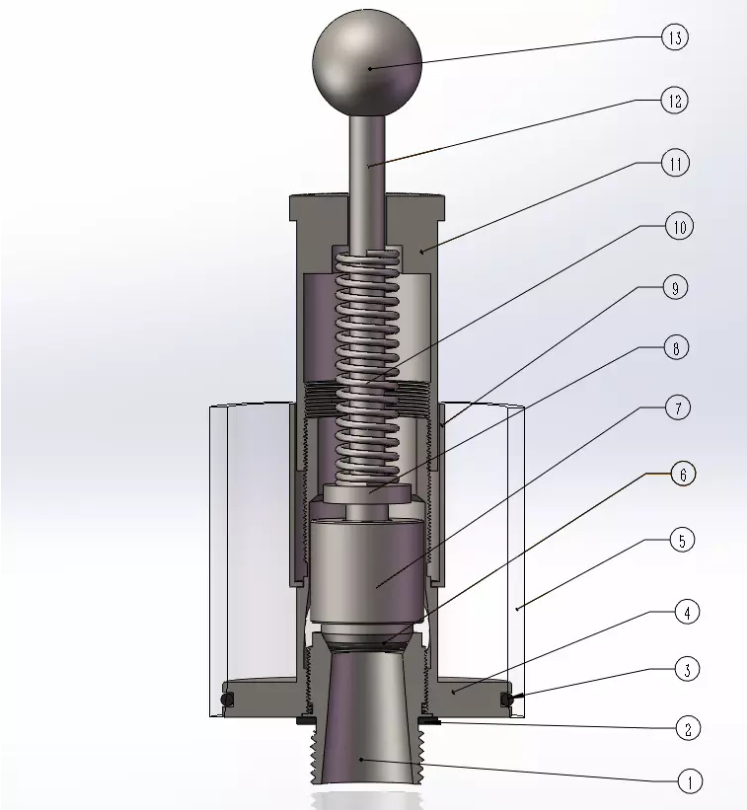

• The series safety valve is to adjust the spring compression nut to calibrate a particular pressure.the calibration of pressure is to fix the maximum pressure to avoid the equipment damage.In the normal working operating pressure,the valve is closed.When the system pressure exceeds the fsysterm and the equipment.The valve is with start the open device for the CIP cleaning of the safety valve and the piping.

• The safety valve is a special valve through a rigorous calibration,but to make the valve more realistic operating conditions,so the conditions shoud be as mush as possible the scene of the valve and then parity.

Standard Design

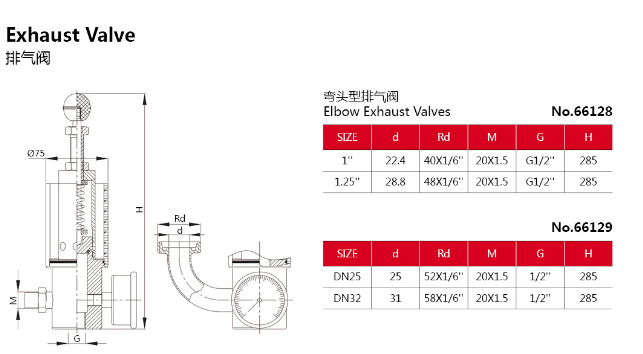

• Available in size:1"-1.5"or DN25-DN40

• Installation:supposed to be installed overhead tanks

• Standard:DIN,SMS,ISO IDF,BS/RJT,ASME /BPE

• Connection:butt-welded,clamp,or other's upon request
