FOGO

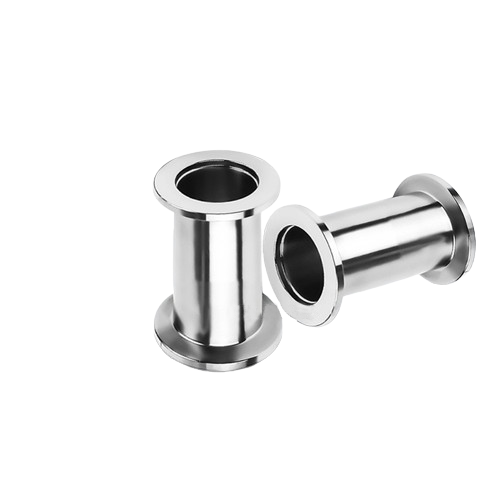

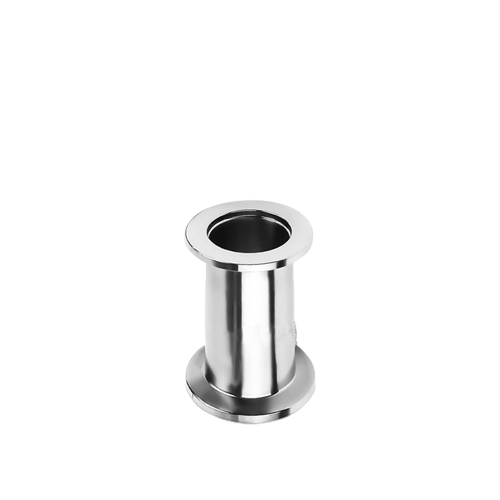

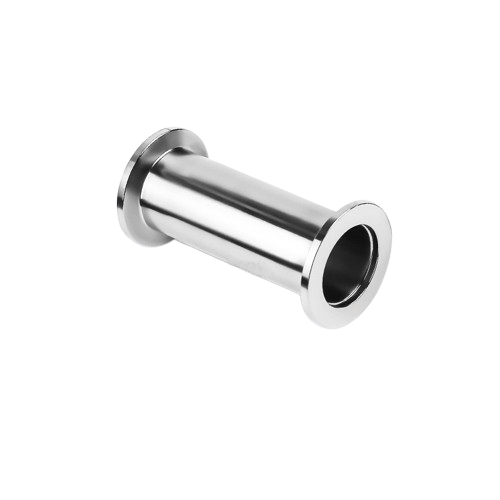

Stainless Steel 304 SS316L KF16 Full Nipple Tri-clamp Pipe Fitting
cast steel, stainless steel
1 year
Structural Features：
Bellows can be used in ultra-high vacuum systems to achieve bending, expansion and contraction, and eccentricity. Vacuum bellows are usually divided into two types: formed bellows and welded bellows. The material of bellows used in ultra-high vacuum systems is generally 316L stainless steel. In ultra-high vacuum systems, the bellows connecting the high vacuum pump and the foreline pump are mostly formed bellows with KF flanges at both ends.
Advantages：
Half nipples feature one KF flange
Full nipples feature two KF flanges
Conical and straight reducer nipples adapt two different flange sizes
Common lengths and tube diameters listed; contact us with your specific requirements
Specification
| Item | Stainless Steel 304 SS316L KF16 Full Nipple Tri-clamp Pipe Fitting |
| Product name | Stainless Steel 304 SS316L KF16 Full Nipple Tri-clamp Pipe Fitting |
| Material | stainless steel |
| Size | Different sizes are available upon request |
| End Connection | / |
| Pressure range | / |
| Surface | Inner Ra.0.8um or specified |
| Standard | ISO, CF, KF |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO |
| Application | In high-tech industries |
