FOGO

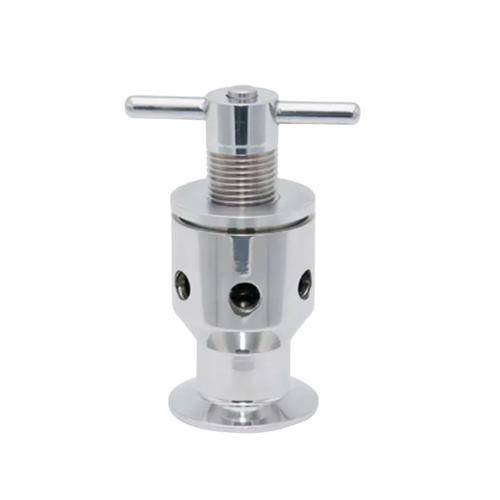

Sanitary Elbow Pressure Gauge Type Air Relief Valve
tri-clamped
ss304, ss316L
1 year
Operating Principles
The valve is used in pressure vessel piping systems.Breathing valve has two functions,when the pressure is higher than the set pressure (standard 1 BAR)can exhaust,whereas closed,while vacuum piping system (standard 0.2 BAR)when the valve opens automatically,to ensure the safety of the equipment and related instrumentation protection,at the same time can also meet the demand in all kinds of production process,the valve in stainless steel material,health design. content with all sorts of food processing,beer,beverage and pharmaceutical and other industries.

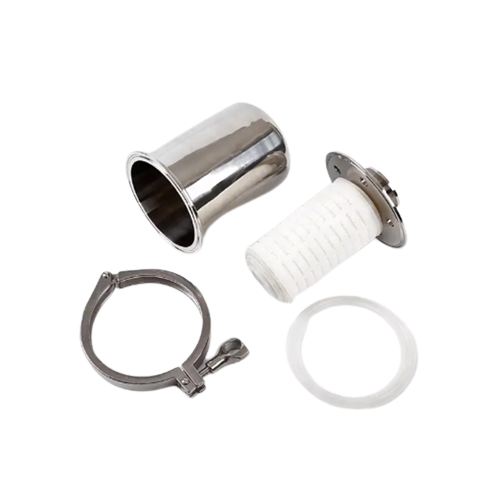

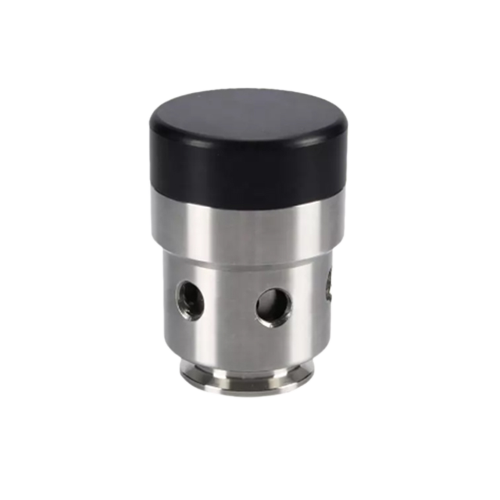

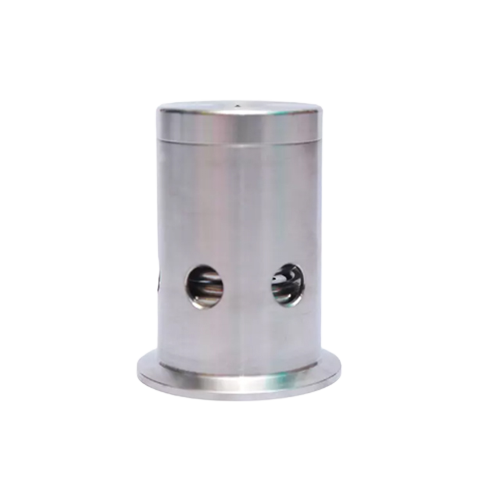

Sanitary Stainless Steel Tank Tri Clamp Adjustable Breather
Our Sanitary Air Exhaust Valve including Sanitary Clamped Air Relife Valve,Hygienic Thread Pressure Relief Safety Valve,Stainless Steel Safety Exhaust Valve With Pressure Guage.

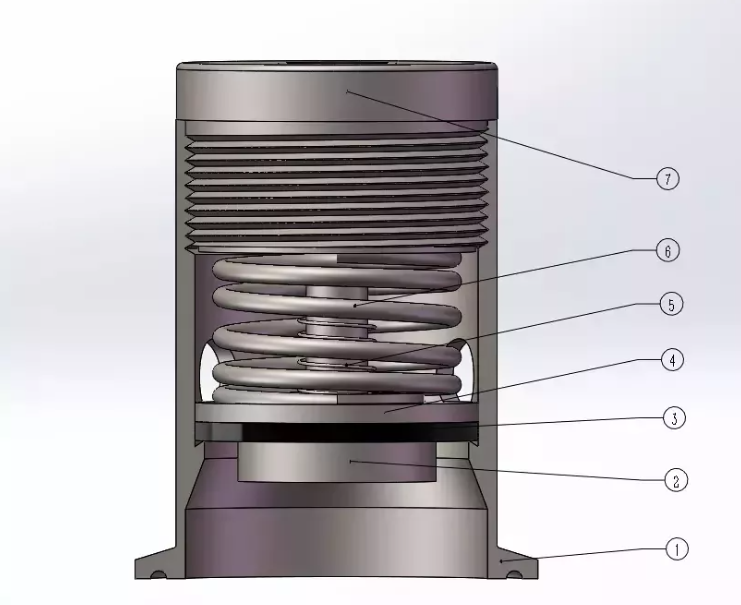

The series safety valve is to adjust the spring compression nut to calibrate a particular pressure.the calibration of pressure is to fix the maximum pressure to avoid the equipment damage.In the normal working operating pressure,the valve is closed.When the system pressure exceeds the fsysterm and the equipment.The valve is with start the open device for the CIP cleaning of the safety valve and the piping.
The safety valve is a special valve through a rigorous calibration,but to make the valve more realistic operating conditions,so the conditions shoud be as mush as possible the scene of the valve and then parity.

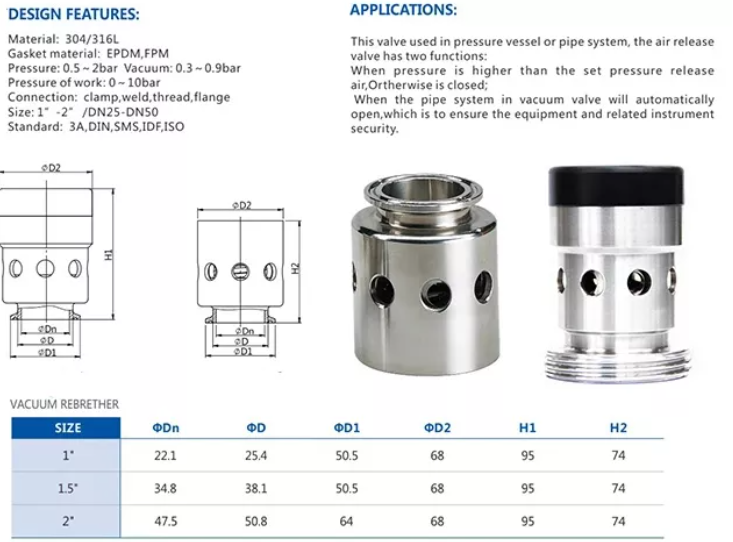

Standard Design
Available in size:1"-2"
Installation:supposed to be installed overhead tanks
Standard:DIN,SMS,ISO IDF,BS/RJT,ASME /BPE
Connection:butt-welded,clamp,or other's upon request
Specification
| Item | Sanitary Stainless Steel Tank Tri Clamp Adjustable Breather |
| Product name | Sanitary Stainless Steel Tank Tri Clamp Adjustable Breather |
| Material | SS304, SS316L |
| Size | 1"-2" |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0~10Bar |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
