Single Wall Clamp ISO Aluminum Alloy Single-sided Clamp Configuration Fastening Hardware Accessories Factory

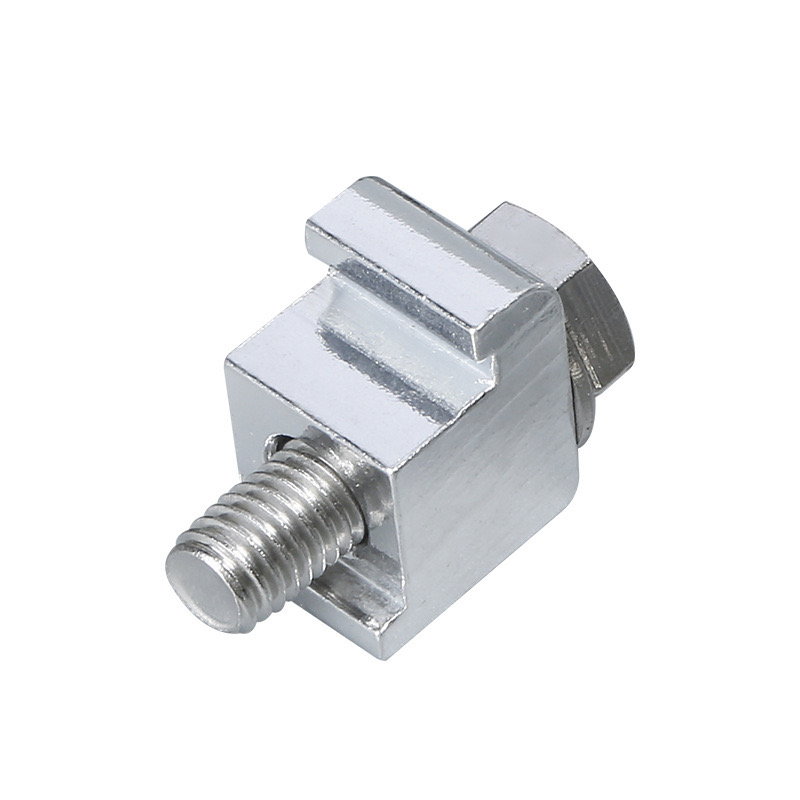

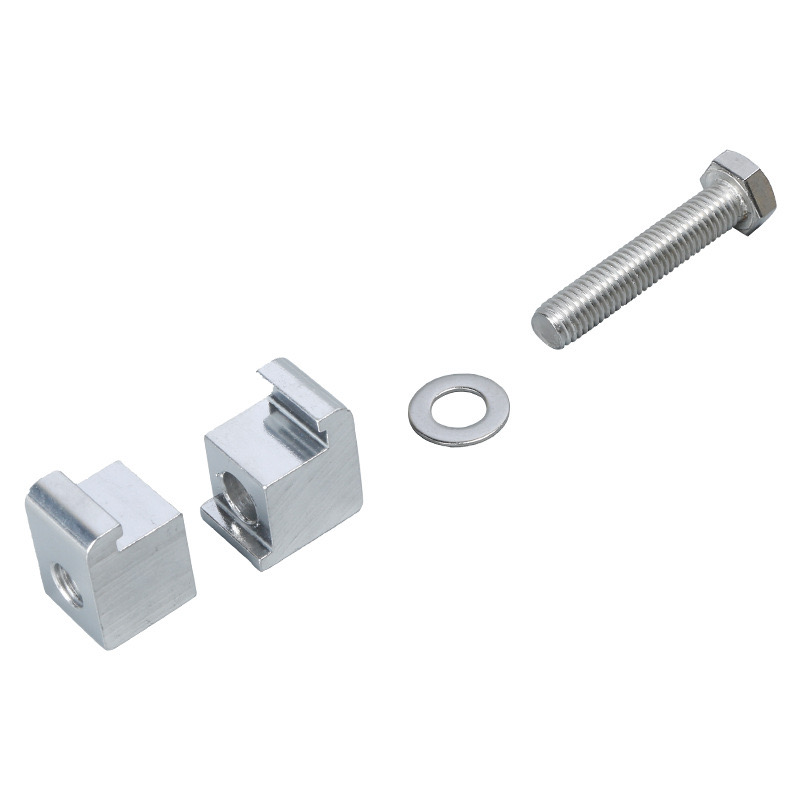

-The ISO single chuck consists of an external hexagonal screw and an aluminum alloy hook. The hook is die-cast from aluminum alloy or stainless steel and has been oxidized by itself.
-Chain vacuum clamp production process: die casting - polishing and shaping - assembly - cleaning and polishing - inspection - packaging and shipping

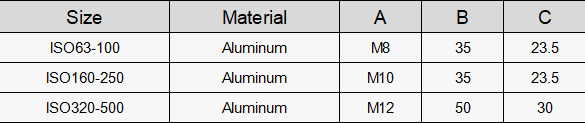

-Common specifications of chain clamps: M8,M10,M12

Size:	M8-M12
Material:	Aluminum stainless steel
Availability:

Quantity:



Inquiry

Brand:
FOGO
item:
ISO Aluminum Alloy Single Wall Clamp
material:
cast steel, stainless steel
Warranty:
1 year

Structural Features：

ISO single chuck is used in combination with ISO vacuum flange, ISO center bracket, and ISO blind flange
ISO single chuck can also be used with ISO vacuum bellows, ISO vacuum hose, ISO high vacuum angle valve, ISO vacuum system, ISO vacuum chamber

Scope of application：

ISO single chuck is mainly used for connection between ISO vacuum flanges
ISO single chuck can also be used to connect KF vacuum threaded flanges

Material type：

ISO hook material type: aluminum or ss304, or Zn Platd
ISO screw material type: ss304

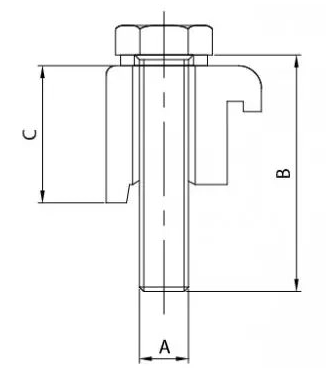

Specification

Item	ISO Aluminum Alloy Single Wall Clamp
Product name	ISO Aluminum Alloy Single Wall Clamp
Material	stainless steel, aluminum
Size	M8-M12
End Connection	/
Pressure range	/
Surface	Inner Ra.0.8um or specified
Standard	ISO
Gasket	PIFE, EPDM, Buna-N, Silicone, FPM etc.
Customized support	OEM
Media	Water, Oil, Gas, Air
Place of Origin	China
Certification	ISO
Application	In high-tech industries
