FOGO

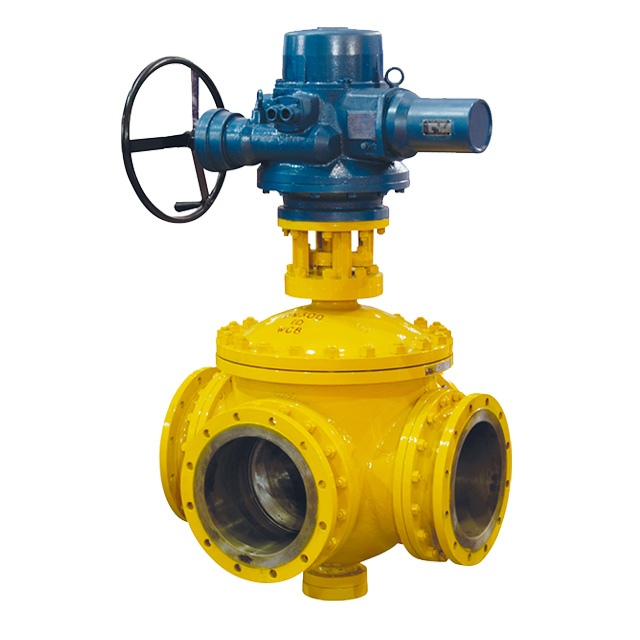

Stainless steel flange three-way ball valve
Flange connection
304/316，WCB
1 year
Introduce:
Flange three-way ball valve generally refers to pneumatic three-way flange ball valve. The ball of pneumatic three-way flange ball valve is divided into L type and T type. The pneumatic actuator drives the ball to rotate 90 degrees to achieve the control purpose of reversing, or rotate 180 degrees to achieve the control purpose of reversing and diversion and confluence. The direct connection between the actuator and the valve body reduces the probability of failure.
Features and uses：
1. The pneumatic three-way flange ball valve adopts an integrated structure, a sealing type of four-sided valve seat, fewer flange connections, high reliability, and lightweight design.
2. The pneumatic three-way ball core is divided into T-type and L-type, with long service life, large flow capacity and low resistance.
3. The ball valve is divided into single-acting and double-acting types according to the action type. The characteristic of the single-acting type is that once the power source fails, the ball valve will be in the state required by the control system.
Main parts and materials :

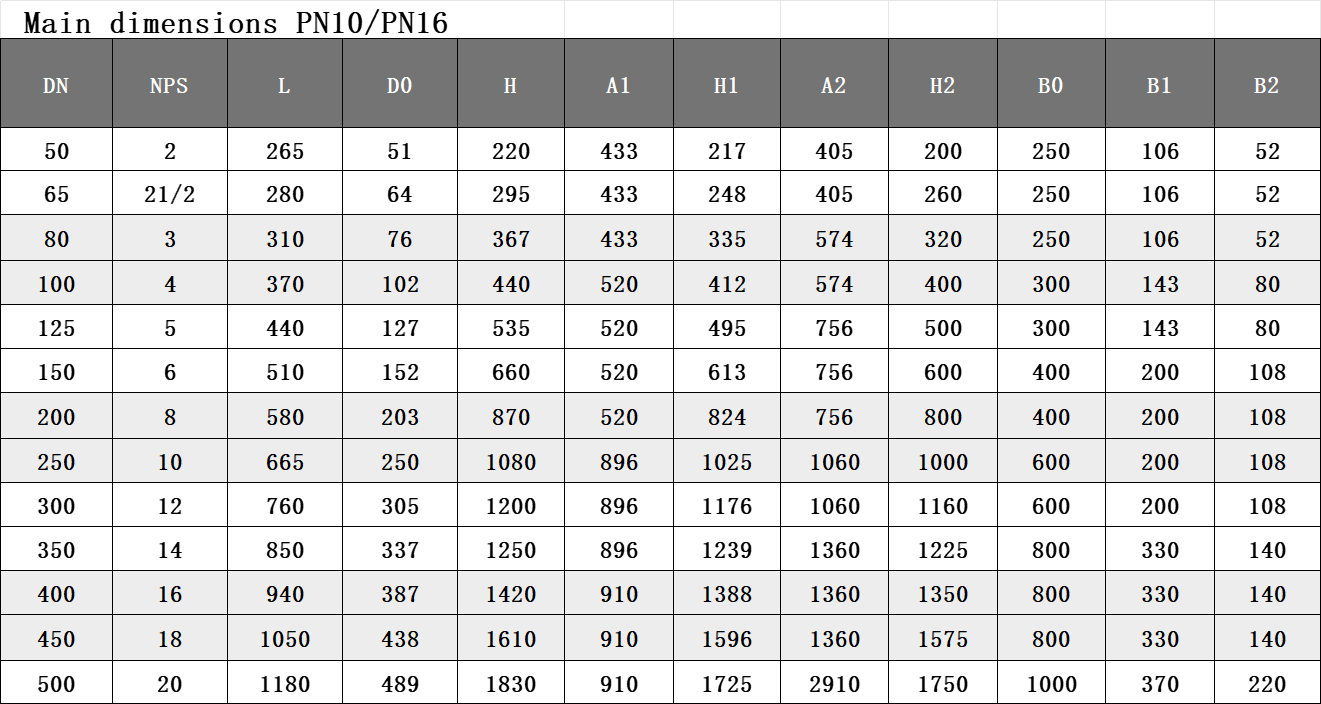

Main outer size :
About Delivery
About Application
