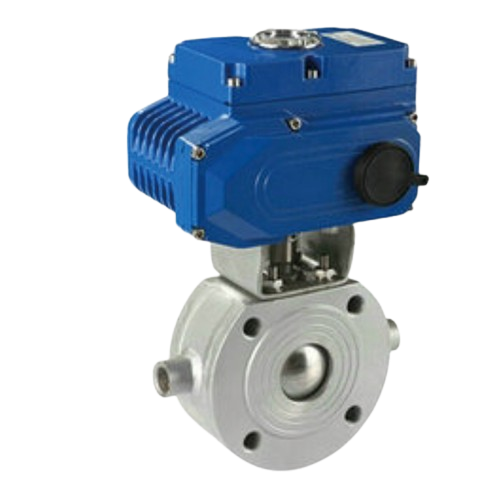

WCB Ultra-thin Thermal Insulation Electric Ball Valve Thin Body Ball Valve Manufacturers

Purpose and functions:

• Compared with ordinary ball valves, thin insulated ball valves have significant advantages such as short structural length, light weight, easy installation, and material saving. The wafer insulated ball valve has good thermal insulation effect. In addition, the valve seat adopts an elastic sealing structure, which ensures reliable sealing and easy opening and closing. Equipped with a fire-resistant structure, it can still operate reliably and has good sealing in the event of a fire.
• According to user needs, an anti-static structure can be provided. A 90° switch with hole positioning piece is provided, which can be locked as needed to prevent misoperation.

Product features

• Valve stem explosion-proof and blow-out-proof design

• Full silica sol precision casting

• Full bore

• Handle operation (optional locking handle)

• Material: WCB, CF8(SS304), CF8M(SS316), SS201

• Pressure: PN16/PN40

• Seat material: PTFE, RPTFE, PEEK, PCTFE




Applicable standards:

• Ball valve design standards: API6D, BS5351, ASME B16.34

• Length standard: ASME B16.10, AP6D

• Flange standard: ASME B16.5 / ASME B16.47

• Butt welding end standard: ASME B16.25

• Fire test: API607, API6A

• Inspection and pressure test standards: API 598, API6D

Standard Design

• Nominal pressure: PN1.6, 2.5, 4.0, 6.4mpa

• Strength test pressure: PT2.4, 3.8, 6.0, 9.6mpa

• Low air pressure seal test pressure: 0.6MPA

• Applicable media: Q41F-(16-64)C water, oil, gas

• Operating temperature: -29~180℃

• Applicable medium: Q41F-(16-64)P nitric acid

• Q41F-(16-64)P acetic acid

• Operating temperature: -29℃~180℃

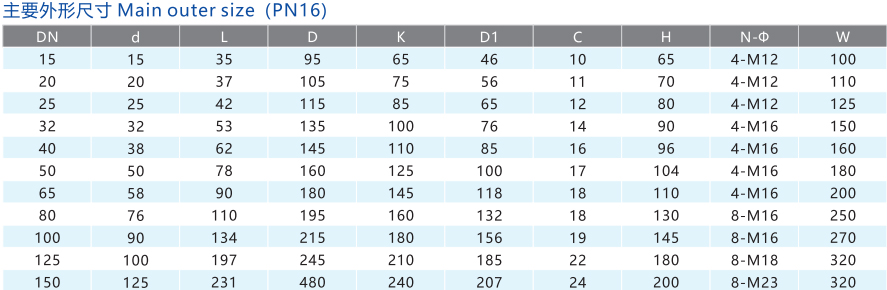

Specification

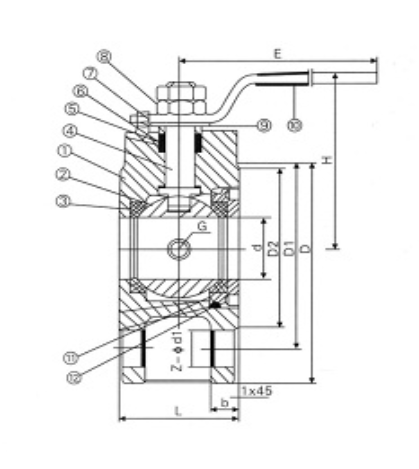

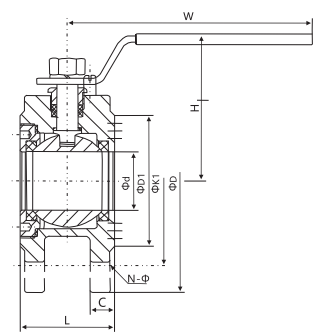

Body Type

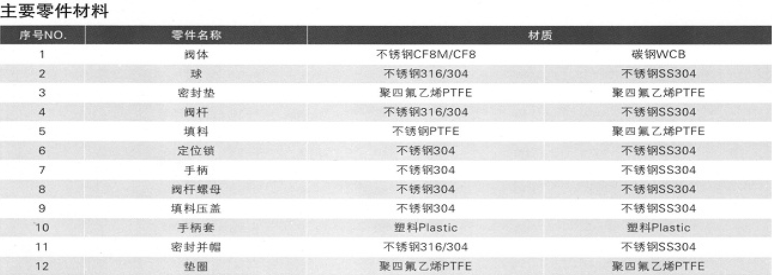

Materials of Main parts



About Delivery

About Application
