What Are Welded Tee And Equal Diameter Tee

Piping systems play an important role in the fields of industry, construction, agriculture, etc., and the connectors involved are its core components. As two important forms in pipeline connection, welded tee and equal diameter tee have both similarities and obvious differences. This article will introduce the definition, characteristics, application and their role in the piping system of welded tee and equal diameter tee.

Definition of welded tee

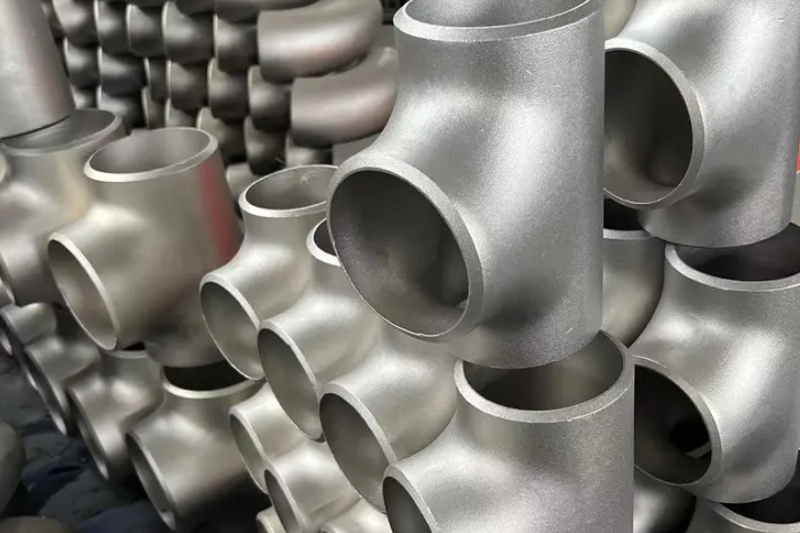

Welded tee, as the name suggests, is a pipe fitting connected by welding, and its shape is similar to the word "T". It has three connection ports, one of which is the inlet of the main pipe, and the other two are the diversion outlets. Welded tees are usually made of carbon steel, stainless steel, alloy steel and other materials to adapt to different working environments and fluid properties. The connection methods of the welded tee include butt welding, welding flange connection, etc., which can maintain a firm connection under harsh conditions such as high pressure and high temperature.

Definition of equal diameter tee

Equal-diameter tee is also a kind of pipe connection, similar to welded tee, but its characteristic is that the pipe diameters of the branch port and the inlet are the same. This means that the equal diameter tee divides the fluid equally without changing the fluid flow rate and pressure. This design makes equal diameter tees very useful in systems where fluid balance needs to be maintained, such as chemical production processes with strict flow requirements.

Application fields and comparison of the two

Welded tees and equal diameter tees are widely used in many fields. Welded type three is usually used in pipeline systems that transport liquids or gases, such as petrochemical, electric power, shipbuilding, etc. Its flexible connection method makes the layout of the pipeline system more diverse and meets the needs of different scenarios.

Equal-diameter tees are commonly used in systems that need to maintain fluid balance, such as water treatment, food processing and other fields, to ensure that the fluid in the system does not become unbalanced during the diversion process.

Welded tees and equal-diameter tees have similarities in shape and connection methods, but their main difference lies in the diameter relationship between the branch port and the inlet. The welded tee can realize the connection between different pipe diameters, allowing the fluid to be diverted from one pipe to another, and is suitable for scenarios that require fluid transportation, mixing or distribution. The equal-diameter tee pays more attention to the balanced diversion of fluid to ensure that the fluid maintains a consistent flow rate and pressure during the diversion process. It is usually used in fields with strict requirements for fluid distribution.

Conclusion analysis

As two important forms of pipeline connectors, welded tees and equal-diameter tees play key roles in fluid diversion and fluid balance respectively. They show their respective advantages in different application scenarios, providing guarantee for the safe operation and efficient work of the pipeline system. Understanding the characteristics and applications of welded tees and equal-diameter tees will help you choose the appropriate connection method to meet the needs of different engineering projects.
