Difference between electric stop valve and pneumatic stop valve

In the industrial field, stop valve is a common type of valve used to control the flow of fluid. Electric stop valve and pneumatic stop valve are two common types of stop valve. Although their basic functions are the same, there are some differences in working principle, control method, applicable scenarios, advantages and disadvantages.

I. Working principle

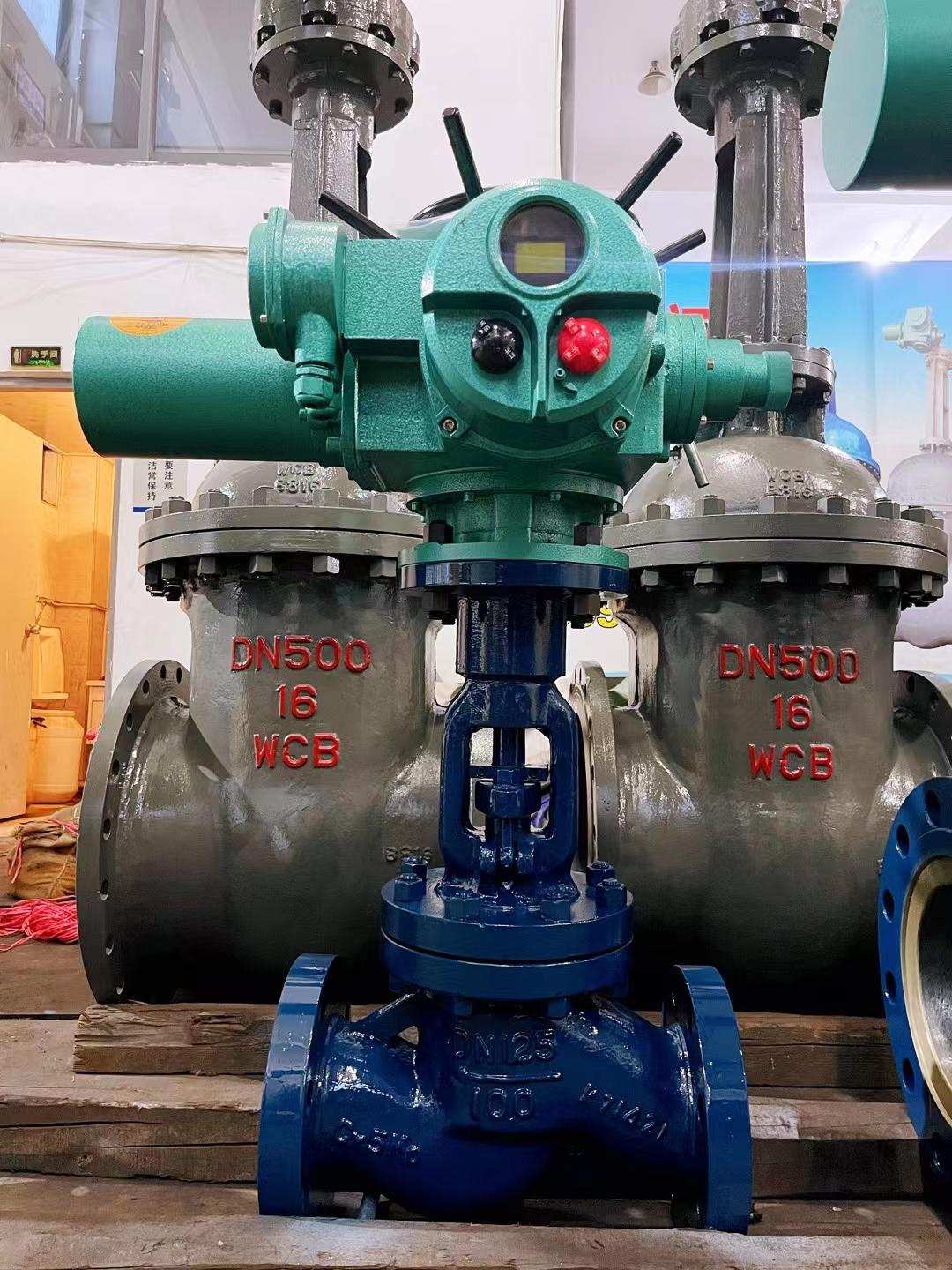

1. Electric stop valve: Electric stop valve is a valve that switches by driving the mechanical structure of the motor. When the motor starts, its rotation will close or open the valve to control the flow of fluid. Usually, electric stop valves are realized by mechanical structures such as worm gear transmission, electric actuator or electric butterfly valve.

2. Pneumatic stop valve: Pneumatic stop valve converts compressed air or gas into mechanical force through pneumatic actuator (such as cylinder) to realize the switch valve. By controlling the inlet and outlet of compressed air, the pneumatic actuator can close or open the valve.

II. Control method

1. Electric stop valve: Electric stop valve can be controlled manually, automatically or remotely. Manual control requires manual operation, while automatic control is achieved through automatic control system. Remote control can be achieved through remote monitoring equipment, computer control or network control. These control methods of electric stop valves make them highly flexible and operable.

2. Pneumatic stop valve: Pneumatic stop valves are usually controlled manually or automatically. Manual control requires operators to manually operate the valve. Automatic control is achieved through sensors, controllers and air sources. Compared with electric stop valves, the control method of pneumatic stop valves is relatively simple and low cost.

III. Applicable scenarios

1. Electric stop valve: Electric stop valves are suitable for pipeline systems of liquids and gases, and are widely used in chemical, petroleum, electric power, metallurgy, water treatment and other industries. Its reliability and high precision make it widely used in scenarios where precise control of valves is required.

2. Pneumatic stop valve: Pneumatic stop valves are suitable for pipeline systems of gas and compressed air, and are commonly found in industrial fields such as petrochemical, metallurgy, textile, and construction. Pneumatic stop valves have fast operation speeds and can withstand high working pressures, and are suitable for scenarios with high requirements for fluid flow rates.

IV. Comparison of advantages and disadvantages

1. The advantages of electric stop valves include: precise control, high reliability, suitable for large flow, remote control, etc. However, electric stop valves also have some disadvantages, such as high price, long installation and maintenance cycle, etc.

2. The advantages of pneumatic stop valves include: fast operation speed, wide working pressure range, low cost, etc. However, pneumatic stop valves are not as good as electric stop valves in terms of control accuracy and reliability, and require additional air supply.

Summary:

There are some differences between electric stop valves and pneumatic stop valves in terms of working principles, control methods, applicable scenarios, advantages and disadvantages. Electric stop valves are suitable for liquid and gas pipeline systems, have advantages in precise control, and are suitable for scenarios that require remote control. Pneumatic stop valves are suitable for gas and compressed air pipeline systems, have advantages in operating speed and cost, and are suitable for scenarios with high requirements for fluid flow rate. According to specific needs and scenario characteristics, choosing the right type of stop valve is crucial for the smooth progress of industrial production.
