Comprehensive Guide To Valve Model Classifications

      Valve model classifications provide a systematic approach to identifying and selecting the appropriate valve for specific applications. These classification systems incorporate design features, pressure ratings, connection types, and operational characteristics into standardized codes that facilitate international communication and technical specification. Understanding valve model nomenclature is essential for engineers, procurement specialists, and maintenance personnel across industrial sectors.

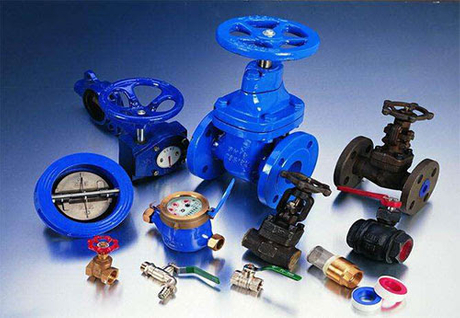

1. Classification by Valve Design and Function

Valves are primarily categorized according to their operational mechanism and intended function:

Gate Valves

• Model indicators: Gate valves typically feature "G" or "Gate" in their designation

• Pressure classes: ANSI 150# to 2500#

• Material codes: CF8 (304), CF8M (316), CF3 (304L), CF3M (316L)

• Example structure: G14F-16P (Gate Valve, Flanged End, ANSI 150, 304 Stainless Steel)

Globe Valves

• Identification: "J" or "Globe" prefixes

• Flow characteristics: Straight-through, angle, or Y-pattern

• Specialized variants: Needle valves for precise flow control

• Temperature ranges: Standard (-29°C to 425°C) and high-temperature designs

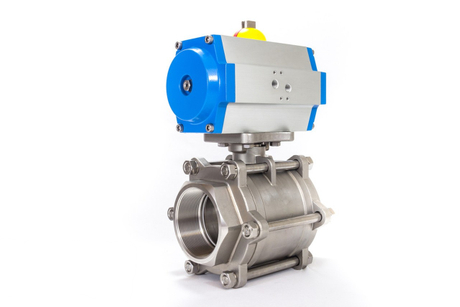

Ball Valves

• Designation codes: "Q" or "Ball Valve"

• Port types: Full port (F), reduced port (R)

• Construction: One-piece, two-piece, or three-piece designs

• Operation: Lever, gear, pneumatic, or electric actuated

Butterfly Valves

• Model markers: "D" or "Butterfly"

• Connection styles: Wafer (W), lug (L), flanged (F)

• Seat materials: Soft (rubber/PTFE) or metal seats

• Pressure ratings: Class 150 to 600

Check Valves

• Identification: "H" or "Check"

• Types: Swing, lift, dual-plate, ball check

• Installation orientation: Horizontal or vertical mounting requirements

2. Pressure-Temperature Rating Systems

Valve models incorporate standardized pressure ratings that determine their operational limits:

ANSI/ASME Classification

• Class 150: 285 PSI at 100°F

• Class 300: 740 PSI at 100°F

• Class 600: 1480 PSI at 100°F

• Class 900: 2220 PSI at 100°F

• Class 1500: 3705 PSI at 100°F

• Class 2500: 6170 PSI at 100°F

PN System (European Standard)

• PN6 to PN100: Pressure ratings in bars

• Temperature derating factors applied for elevated temperatures

3. Connection Type Designations

Valve models specify connection methods through standardized codes:

Flanged Connections

• RF: Raised Face

• FF: Flat Face

• RTJ: Ring Type Joint

• Face finish specifications: 125-250 AARH or serrated

Threaded Connections

• NPT: National Pipe Taper (US Standard)

• BSPT: British Standard Pipe Taper

• BSPP: British Standard Pipe Parallel

Welded Connections

• SW: Socket Weld

• BW: Butt Weld

• Weld prep dimensions according to ASME B16.25

Specialized Connections

• Tri-Clamp: Sanitary clamp connections

• Grooved: For quick-installation systems

• Union End: For instrument connections

4. Material Specifications

Valve materials are coded according to international standards:

Carbon Steel

• WCB: Carbon steel body (ASTM A216)

• WCC: Low-temperature carbon steel

Stainless Steel

• CF8: 304 Stainless Steel

• CF8M: 316 Stainless Steel

• CF3: 304L Stainless Steel

• CF3M: 316L Stainless Steel

Alloy Materials

• WC6/WC9: Chrome-molybdenum steel

• C5/C12: Chrome alloys for high-temperature service

5. Operational Characteristics Coding

Valve models include codes for operational features:

Stem Type

• RS: Rising Stem

• NRS: Non-Rising Stem

• OS&Y: Outside Stem and Yoke

Seat Material

• FKM: Viton

• EPDM: Ethylene Propylene

• NBR: Nitrile

• PTFE: Teflon

• Metal: Stainless steel or hardened alloys

Actuation Methods

• Manual: Handwheel, lever, gear operator

• Pneumatic: Double-acting, spring-return

• Electric: Motor-operated, modulating control

• Hydraulic: High-torque applications

6. Industry-Specific Model Variations

Oil and Gas Applications

• API 6D and API 600 compliance

• Fire-safe design per API 607/6FA

• Sour service certification (NACE MR0175)

Nuclear Industry

• ASME Section III certification

• Nuclear stamp requirements (N, NPT)

Water Treatment

• AWWA C500 and C509 standards

• Rubber-seated designs for bubble-tight shutoff

Food and Pharmaceutical

• 3-A Sanitary Standards compliance

• EHEDG and FDA material certifications

7. International Standardization Efforts

Modern valve model classification increasingly follows global standardization:

ISO Standards

• ISO 5208: Pressure testing requirements

• ISO 5752: Face-to-face dimensions

• ISO 10631: Butterfly valve specifications

Regional Variations

• DIN standards (European market)

• JIS standards (Japanese market)

• GB standards (Chinese market)

Conclusion
      Valve model classifications create a universal language that transcends geographical and linguistic barriers in the fluid handling industry. These systematic coding conventions enable precise technical communication, ensure proper valve selection, and facilitate global trade. As valve technology evolves, classification systems continue to incorporate new materials, designs, and performance requirements while maintaining backward compatibility with existing standards. Understanding these model designation principles is fundamental to specifying, procuring, and maintaining valves in any industrial application, from basic plumbing to critical process systems in nuclear power plants and offshore platforms.
