FOGO

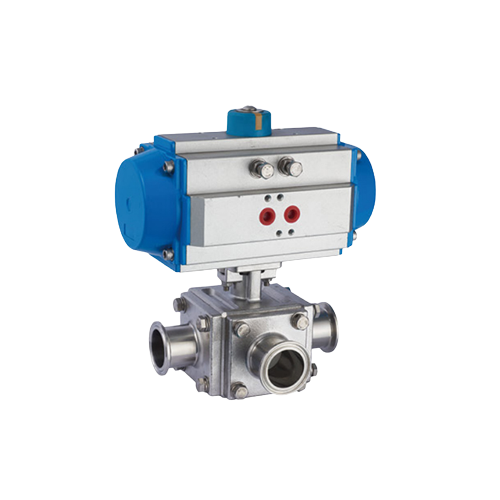

Sanitary Pneumatic Square Three-way Ball Valve
Clamped
ss304, ss316
1 year
Operating Principles
Sanitary Stainless Steel Tri Clover Ball Valve
The ball valves can be operated automatically through actuator or manually with the handle.
The ball valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields
With clamped connection,this 3 way ball valve is convenient to detach and install.

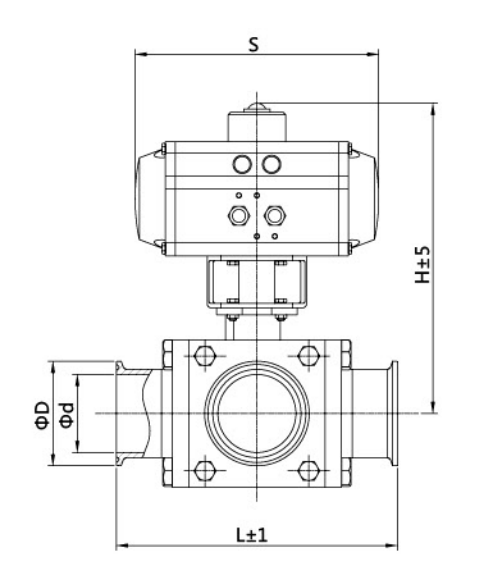

Square Three-way Ball Valve
The valve has a hygienic design and is widely used in food processing, beverages,juices,winemaking,biopharmaceuticals and other fields. The three-way ball valve has a very flexible combination.For example, the L-type and T-type can be replaced on site,and the inlet and outlet directions can be changed in any combination to ensure zero dead angle and zero retention.
Standard Design
Inside surface treatment:Raz0.4-0.8um
Surface treatment:Raz0.4-1.6um
The diameter welding:Welding connection:DIN11850-2 11850-1/
SMS/3A/ISO etc
Connection Mode:welding,clamp,male and female,flange,etc.
Material Stainless Steel 304,316L
Seal:PTFE,PPL

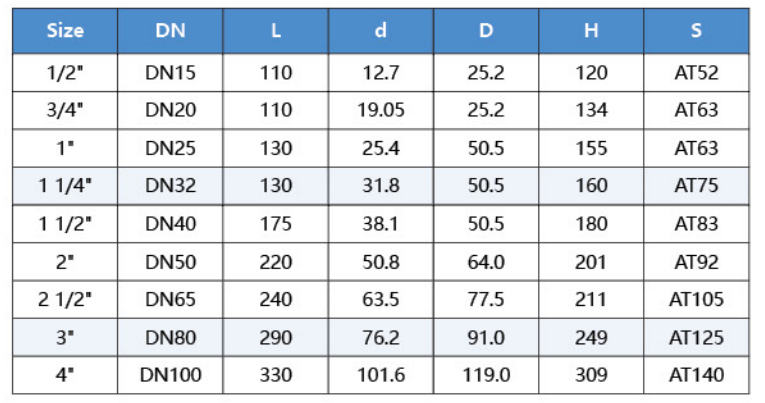

Specification
| Item | Pneumatic Square Three-way Ball Valve |
| Product name | Pneumatic Square Three-way Ball Valve |
| Material | SS304, SS316L |
| Size | DN15-DN100 |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0~10Bar |
| Gaskets | PTFE FDA 177.1550 Whatever The Connection,It Does Not Change The Total Length Of The Valve |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
