FOGO

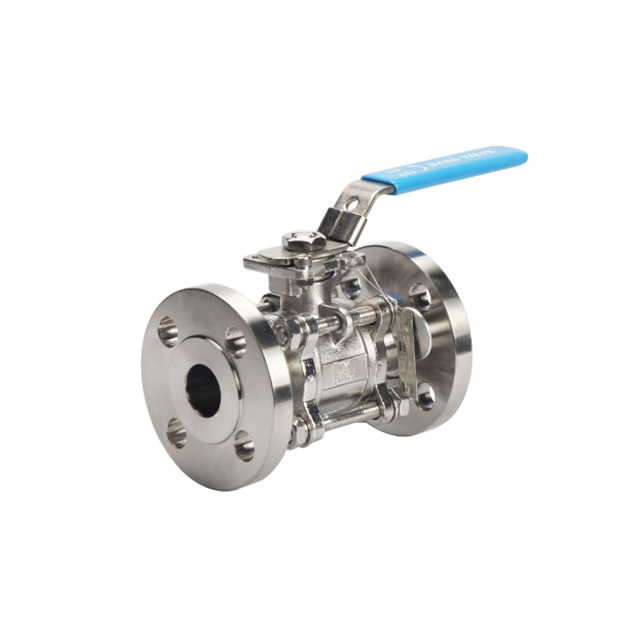

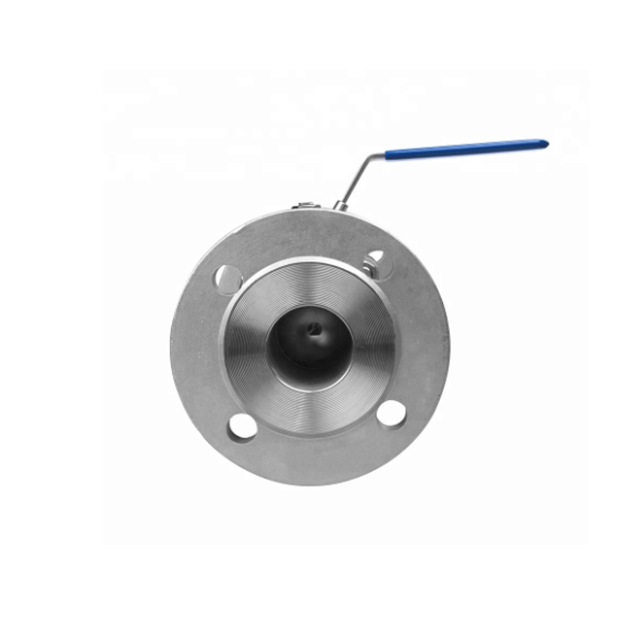

Sanitary Three-piece Flange Ball Valve
Flange
ss304, ss316L
1 year
Operating Principles
Sanitary Stainless Steel Tri Clover Ball Valve
The ball valves can be operated automatically through actuator or manually with the handle.
The ball valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields
With clamped connection,this 3 way ball valve is convenient to detach and install.

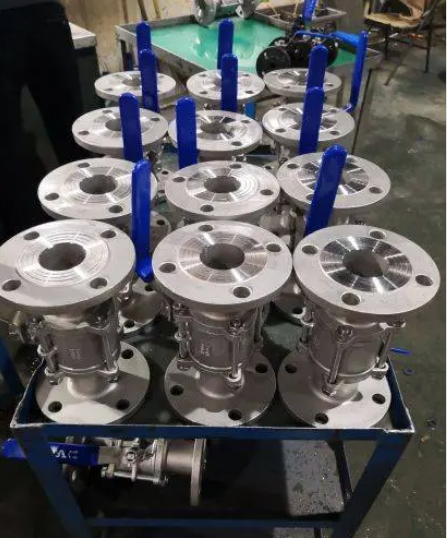

Three Piece Ball Valve with Flange Connection
Hygienic 3PCS ball valve with ISO direct mounting pad is designed for food biological,pharmaceutics or similar industries.The cavity filled seat option will help not to remain the media in the body cavity to keep from spoiling or mixing.Cavity filler seats will also help to clean the valve port easily.
The options on end types can be T-Clamp,Tube weld end,Extended tube weld end,flanged end,thread end.Different material of soft kits will be applicable for different working circumstance.
Standard Design
Available in sizes from DN10/1/2 to DN100/4"
Standard Avaliable:DIN.SMS,RJT,3A.FIL
Connection:weld,clamp,thread,flange
Type of valves:One way ball valve,three-piece ball valve,Three-way ball valve
Type of cores:T type,L type,direct type
Actuator:pneumatic stainless steel actuator,electric actuator
Specification
| Item | Three Piece Ball Valve with Flange Connection |
| Product name | Three Piece Ball Valve with Flange Connection |
| Material | SS304, SS316L |
| Size | 1"-4",DN25-DN100 |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 10Bar |
| Gaskets | PTFE FDA 177.1550 Whatever The Connection,It Does Not Change The Total Length Of The Valve |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
