Sanitary Diaphragm Valve

The design of sanitary diaphragm valve is essential for maintaining a sterile environment and preventing contamination. The sealing principle of a sanitary diaphragm valve plays a vital role in ensuring a reliable and efficient operation. In this analysis, we will explore the sealing principle of a sanitary diaphragm valve and its significance in different applications.

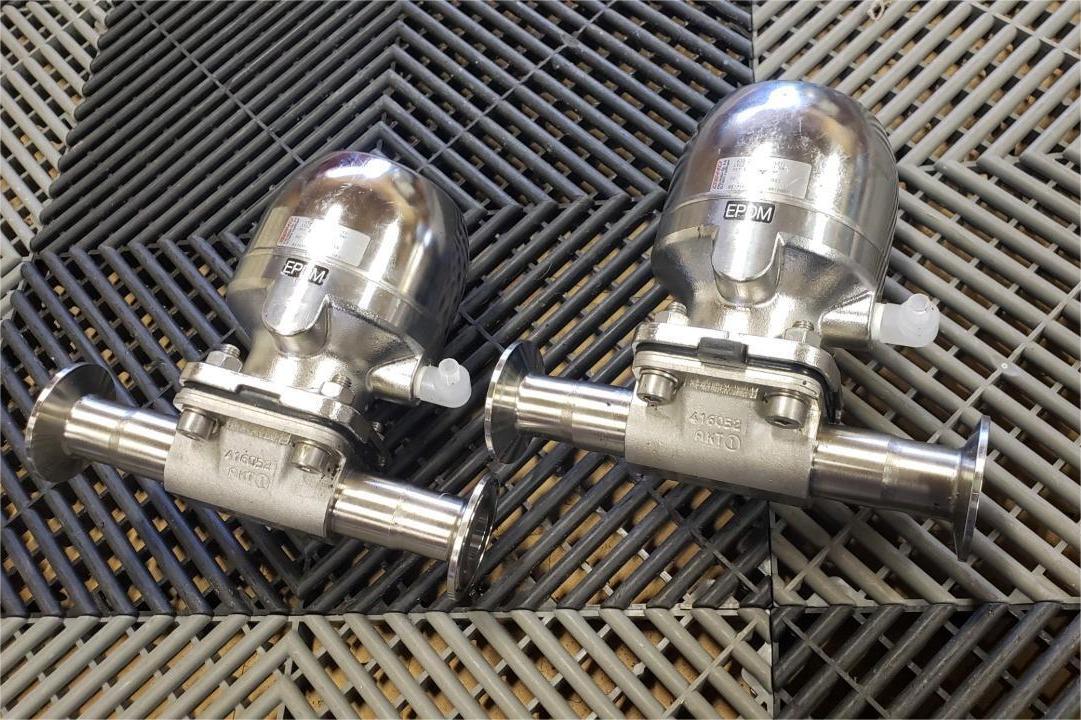

The basic structure of a sanitary diaphragm valve consists of a valve body, a diaphragm, and an actuator.

The valve body typically comprises two or more ports with connections for inlet and outlet flow. The diaphragm, made of elastomeric or thermoplastic materials, acts as a flexible barrier between the two ports. The actuator controls the movement of the diaphragm to open or close the valve.

The sealing principle of a sanitary diaphragm valve is based on the deformation of the diaphragm to create a tight seal between the two ports. When the valve is closed, the actuator exerts pressure on the diaphragm, forcing it against the valve body's sealing surface. This compression of the diaphragm forms a hermetic seal, preventing any fluid from passing through the valve. The sealing mechanism is often referred to as "weir" or "straight-through" type, depending on the diaphragm's deformation direction.

One of the key advantages of the sanitary diaphragm valve's sealing principle is its ability to provide complete isolation between the process fluid and the external environment.

Unlike traditional valves that have crevices or dead spaces, the diaphragm valve's design eliminates potential areas where contaminants can accumulate. This feature is especially critical in industries where maintaining high levels of hygiene and sterility is essential.

The materials used for the diaphragm play a crucial role in the valve's sealing efficiency and compatibility with different applications. Elastomeric diaphragms, such as EPDM (Ethylene Propylene Diene Monomer) or silicone, are commonly used in applications involving low to moderate temperatures and non-aggressive fluids. For more demanding applications, thermoplastic diaphragms made of materials like PTFE (Polytetrafluoroethylene) may be used due to their excellent chemical resistance and durability.

The proper selection of the actuator is equally important in achieving an effective seal.

Actuators can be manual, pneumatic, or electric, and their choice depends on factors such as the required control precision, automation level, and application environment. Pneumatic actuators, for example, can exert significant force on the diaphragm, ensuring a tight and reliable seal even under high-pressure conditions.

The sealing principle of the sanitary diaphragm valve also enables it to be used in bi-directional flow applications. This means that the valve can be installed in the pipeline with flow permitted in either direction, making it versatile for various process requirements.

However, it is essential to consider potential limitations of sanitary diaphragm valves. High-pressure applications may require larger and more robust actuators to ensure sufficient sealing force. Additionally, the constant flexing of the diaphragm during operation may lead to wear and fatigue over time, necessitating periodic maintenance and replacement.

In conclusion, the sealing principle of the sanitary diaphragm valve is a fundamental aspect of its design and operation. By understanding the sealing principle and considering its advantages and limitations, engineers and operators can make informed decisions in selecting and utilizing sanitary diaphragm valves for their specific applications.
