FOGO
Sanitary Quick Install Butterfly Valve
tri-clamped
ss304, ss316
1 year
Operating Principles
Sanitary Stainless Steel Tri Clover Ball Valve

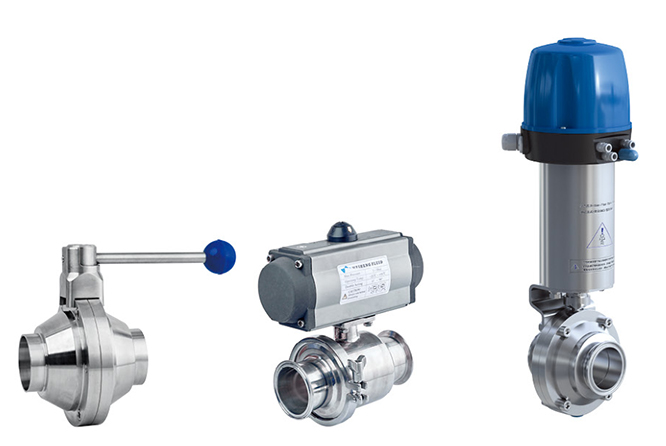

The ball valves can be operated automatically through actuator or manually with the handle.
The ball valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields
With clamped connection,this 3 way ball valve is convenient to detach and install.

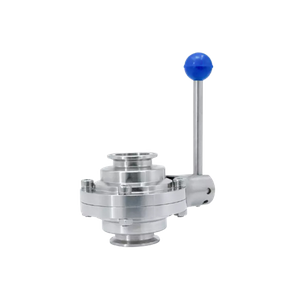

Sanitary Butterfly Ball Valve
Butterfly ball valve is a valve with quick loading and unloading and easy cleaning.It is the best choice for handling viscous or particulate media in the sanitary industry.Mainly used in food, beverage processing,and pharmaceutical and chemical industries.

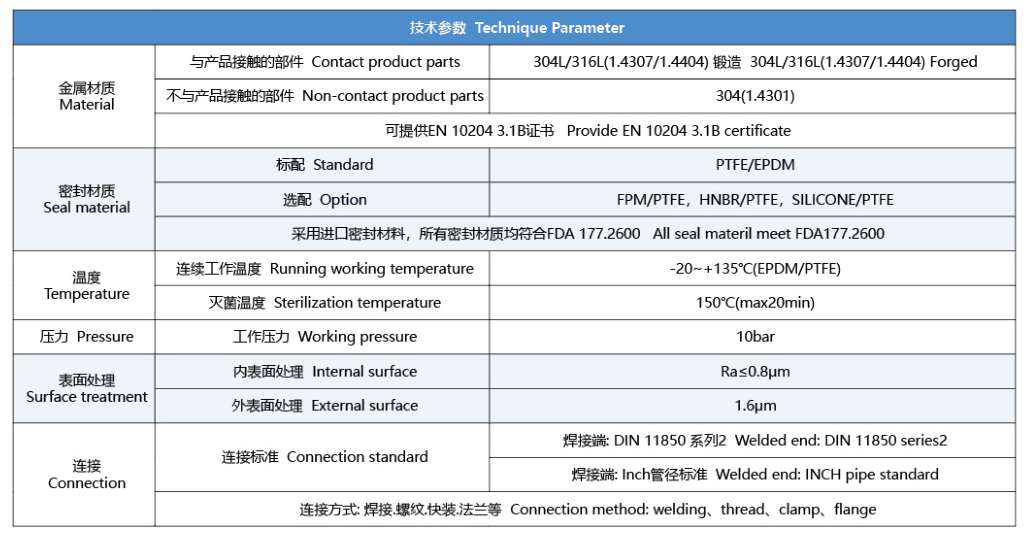

Standard Design
Using imported sealing materials,all sealing materials comply with FDA177.2600
Working temperature:-20~+135C(EPDM/PTFE)
Sterilization temperature:150C(max.20min)
Working pressure:1.0Mpa(10bar)
Medium:water,beverages,dairy products,pharmaceuticals,etc.
Connection method:3A/DIN/SMS/ISO (welding.Quick installation. Thread.Flange)

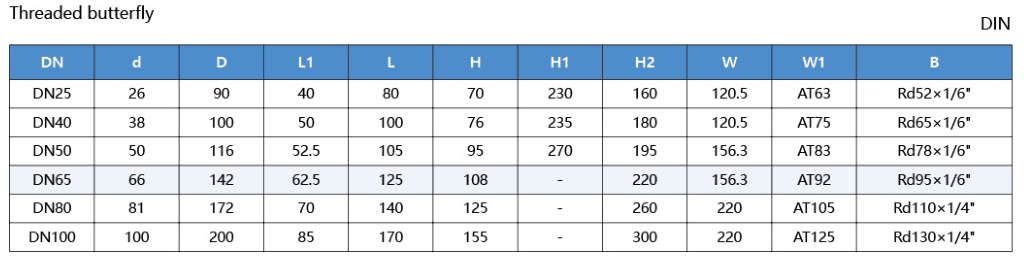

Specification
| Item | Sanitary Three-way Ball Valve |
| Product name | Sanitary Three-way Ball Valve |
| Material | SS304, SS316L |
| Size | DN25-DN100 |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0~10Bar |
| Gaskets | PTFE FDA 177.1550 Whatever The Connection,It Does Not Change The Total Length Of The Valve |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
