Different Connection Methods For Sanitary Diaphragm Valves

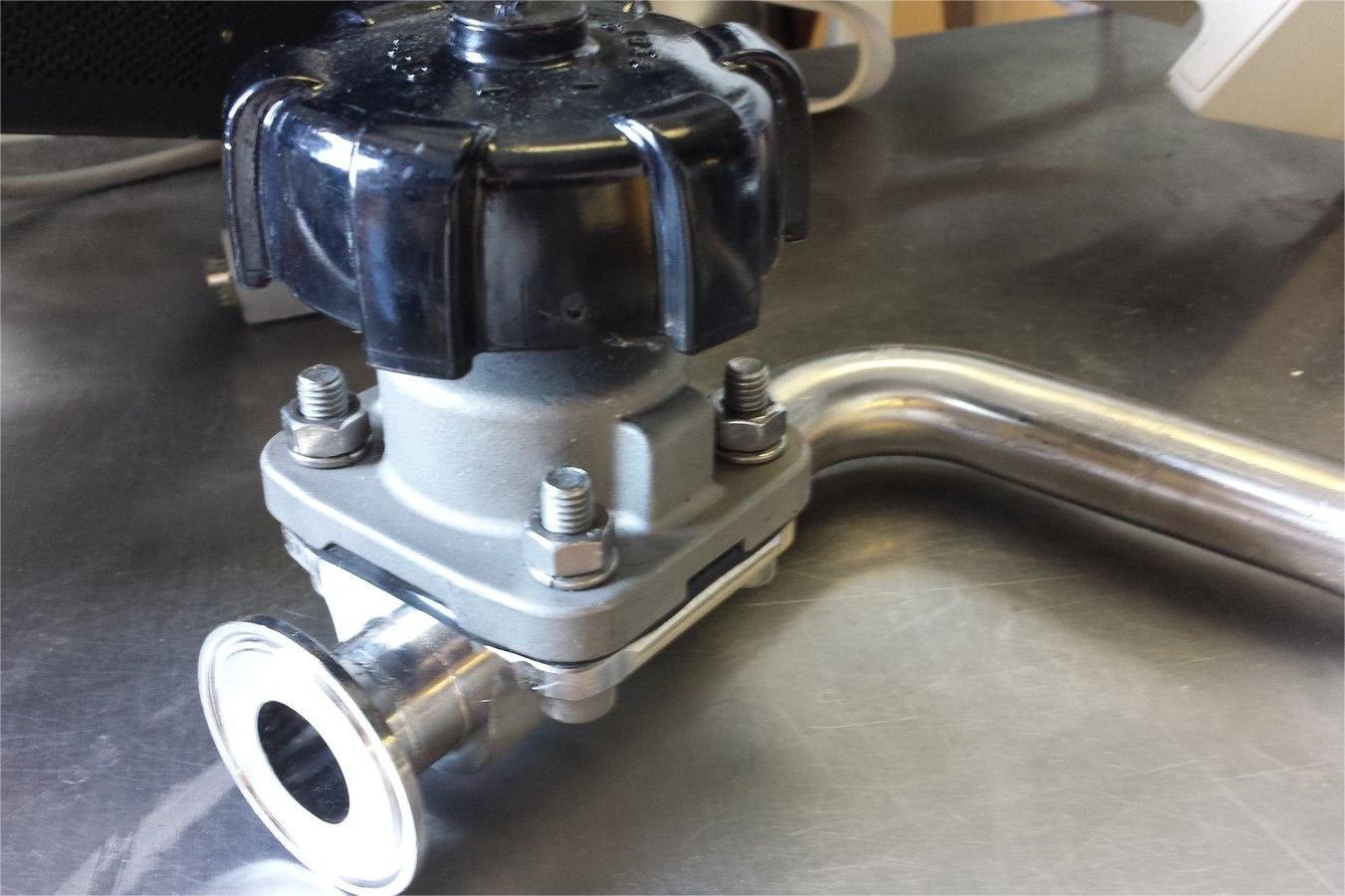

Sanitary diaphragm valves are essential components in various industries, particularly in applications where maintaining a high level of hygiene and cleanliness is crucial. These valves feature a flexible diaphragm that acts as a barrier between the process media and the valve's internal components, ensuring a sterile and contamination-free operation. Different connection methods are used for sanitary diaphragm valves, allowing them to be versatile and adaptable to various process requirements.

In this article, we will introduce and explore some of the common connection methods for these valves.

1.Tri-Clamp Connection:

Tri-Clamp connections, also known as tri-clover connections, are widely used in the food, beverage, pharmaceutical, and biotech industries. These connections consist of a clamp, gasket, and a flanged end that securely holds two tri-clamp ferrules together. The advantage of tri-clamp connections is their ease of use, quick assembly, and disassembly, making them ideal for applications that require frequent cleaning and sterilization.

2.Butt-Weld Connection:

Butt-weld connections are a popular choice for applications where a permanent, leak-proof connection is necessary. In this method, the valve is designed with butt-weld ends that are directly welded to the process piping. This seamless connection ensures minimal dead space and eliminates potential areas for contamination buildup, making it suitable for high-purity applications in the pharmaceutical and biotechnology industries.

3.Threaded Connection:

Threaded connections are commonly used in smaller-scale systems or for applications that require ease of installation and maintenance. Sanitary diaphragm valves with threaded connections feature male or female threads that can be directly screwed into the corresponding fittings. These connections are reliable, cost-effective, and suitable for lower-pressure applications in food processing and dairy industries.

4.Flanged Connection:

Flanged connections offer a robust and secure method for joining sanitary diaphragm valves to the process pipeline. The valve has flanged ends with bolt holes that align with the matching flanges on the piping system. Bolts are used to tighten the connection, providing a tight seal and preventing any potential leaks. Flanged connections are common in larger-scale industrial processes and applications where higher pressure ratings are required.

5.Clamped Union Connection:

Clamped union connections are similar to tri-clamp connections but offer more flexibility in terms of alignment and sealing. These connections utilize a nut and a clamp to hold two components together with a gasket in between. Clamped union connections are easy to assemble and disassemble, making them suitable for applications that require frequent cleaning and maintenance.

6.Compression Fitting Connection:

Compression fitting connections are commonly used in analytical and laboratory settings. These connections involve a compression nut and ferrule that tightly secures the valve to the process tubing. Compression fittings provide a reliable and leak-free connection, making them ideal for applications where precise flow control is essential.

7.Tube Weld Connection:

Tube weld connections are used to directly weld the valve to the process tubing. This method is similar to the butt-weld connection but is more applicable to smaller diameter tubes. Tube weld connections are commonly found in industries where cleanliness and integrity are paramount, such as pharmaceutical, biotech, and semiconductor manufacturing.

In conclusion, the choice of connection method for sanitary diaphragm valves depends on various factors, including the application's requirements, system design, and industry standards. Each connection method offers its unique advantages and limitations, allowing engineers and operators to select the most appropriate option to ensure a safe, hygienic, and efficient process. Proper installation, regular maintenance, and adherence to industry regulations are essential to maximize the performance and lifespan of these critical components.
