Classification Standards And Introduction Of Sanitary Elbows

In sanitary industries such as food, pharmaceuticals, and cosmetics, elbows, as important pipe connection components, play a vital role. In order to meet different process needs and hygiene requirements, sanitary elbows are divided into multiple categories according to different characteristics and uses.

Sanitary elbows are mainly classified according to the following aspects:

Material classification:

According to the material of the elbow, it can be divided into stainless steel elbow, plastic elbow and so on. Stainless steel elbows are widely used in sanitary industries because of their corrosion resistance, high temperature resistance and easy cleaning. Plastic elbows are usually used for one-off production or special applications, and have the characteristics of light weight and not easy to generate metal ions.

Classification of connection methods:

The connection method of the elbow is also one of the basis for classification. The common connection methods include clamp type, thread type, welding type and so on. Clamp-type elbows have the advantages of quick disassembly and installation, and are suitable for occasions that require frequent cleaning or replacement; threaded elbows are suitable for situations that require high sealing; welded elbows are usually used for fixing piping systems, Guaranteed tightness and strength.

Elbow Angle Classification:

According to the angle of the elbow, it can be divided into different angles, such as 90 degree elbow, 45 degree elbow and so on. Elbows with different angles are suitable for different pipeline layouts and process requirements, and can meet different process requirements.

Classification of inner wall smoothness:

In the sanitary industry, the smoothness of the inner pipe wall is very important for hygiene and fluid transmission. According to the smoothness of the inner wall, the elbow can be divided into ordinary inner wall elbow and polished inner wall elbow. Polished inner wall elbows have a smoother surface, reducing the potential for bacterial growth and helping to keep fluids pure.

Sanitary standard classification:

Whether the elbow meets the sanitary standard is also an important basis for classification. Sanitary elbows need to meet relevant sanitary certification standards to ensure their applicability in food, pharmaceutical and other industries. Common sanitary standards include 3A, EHEDG, etc.

The characteristics of various sanitary elbows are as follows:

Stainless steel elbow:

Corrosion-resistant, suitable for high temperature and acid-base environment, easy to clean and disinfect, widely used in food, beverage, pharmaceutical and other industries.

Plastic elbow:

Lightweight, not easy to generate metal ions, suitable for single use or special applications, such as laboratory reagent transfer.

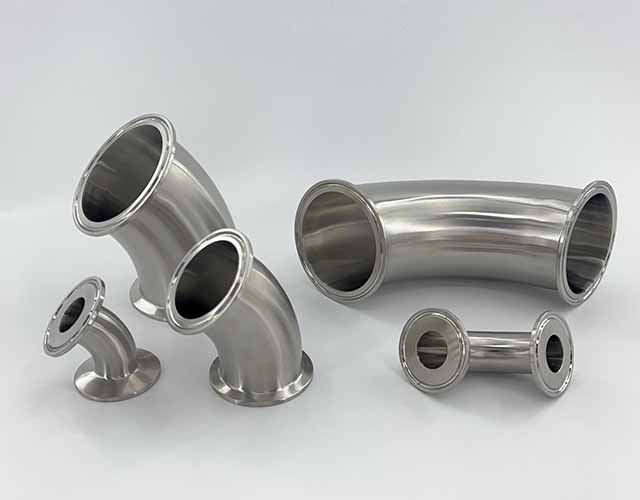

Clamp elbow:

Quick disassembly and installation, suitable for piping systems requiring frequent maintenance, improving production efficiency.

Threaded Elbow:

The connection is tight and the sealing performance is good, which is suitable for occasions with high requirements for fluid transmission.

Welded Elbow:

High strength, suitable for fixed pipeline system, to ensure the stability and tightness of the system.

Polished inner wall elbow:

The inner wall is smooth, which reduces the growth of bacteria and helps to maintain the purity of the fluid. It is suitable for industries with high hygiene requirements.

In short, the current classification standards for sanitary elbows are very diverse, and we can choose according to different characteristics and uses. Choosing a suitable sanitary elbow can improve production efficiency, ensure product quality, and meet sanitary requirements, thus playing an important role in the sanitary industry.
